Sany STC1000T

Pris eks. MVA

Ring for pris

Images8

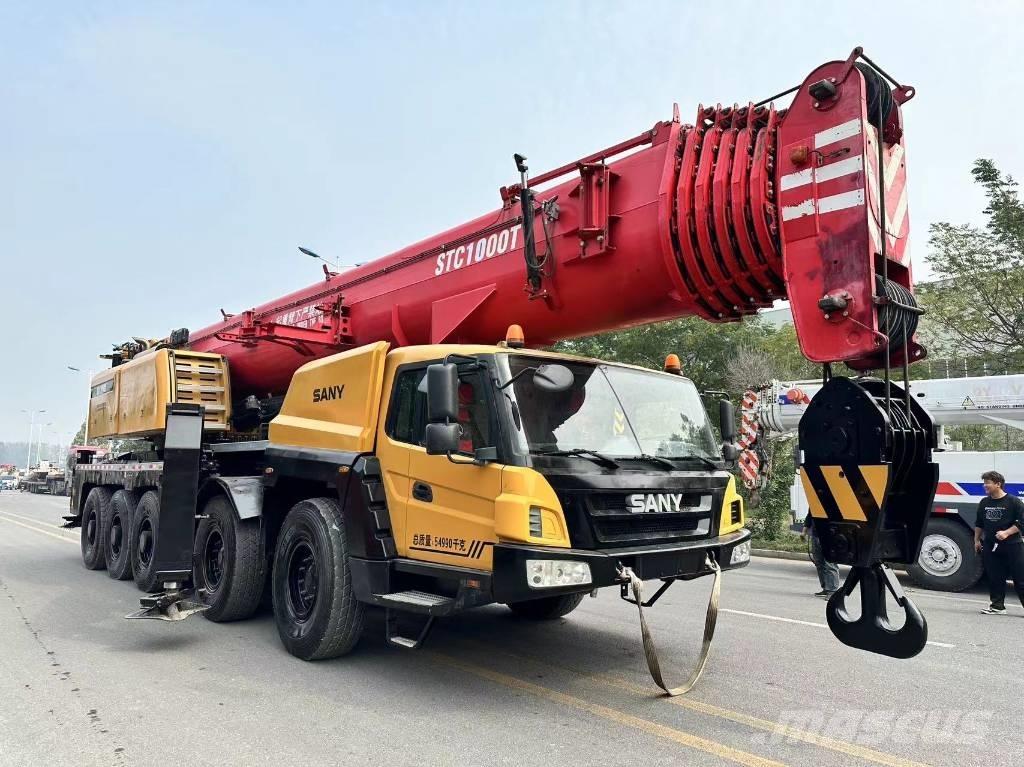

Sany STC1000T Allterreng kraner
Sany STC1000T Allterreng kraner
Sany STC1000T Allterreng kraner
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Allterreng kraner
Merke / modell
Sany STC1000T
Årsmodell
2019
Driftstimer
1 800 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
294F0086

DETALJER

Sist godkjent (dato):
2025-04-25
Antall tidligere eiere
1
Full service historikk
Ja
Maks løftekapasitet
100 000 kg
Maks løftekapasitet på Jib
100 000 kg
Euroklasse
Steg V
Kran type
Hydraulisk kran
Motorprodusent
Cummins
Transportmål (LxBxH)
1427630004 m
Understell
Hjulvogn
Resterende fordekk
98
Resterende Bakdekk
98
Produsert i (land)
Kina
Leveringsbetingelser
CFR, CIF, EXW
Beskrivelse
SANY 100 Tons STC1000T TRUCK CRANE Brand: SANY Model: STC1000T Capacity: 100t Year: 2019 Price: 145000 USD FOB CHINA Perfectly conditons,excellent after-sale service, Contact for more favorable price! Contact: Alan Wang Mobile: 008618639069266 / 008618211689690 (Whatsapp/WeChat/Viber/Imo/Line/Facebook) 1, Boom: 7 sections / 12.32m-64.5m 2, Jib: 18.5m 3, Engine: Down Engine: Cummins ISZ480 51 353kw/1900rpm Up Engine: Cummins QSB6.7-C260 194kw/2200rpm Emission standard: National V 4, Transmission system:ETON Auto; 11 Speeds Forward gear; 3 Reverse gears 5, Crane Size: 14276*3000*4000mm Crane Weight: 54990kg 6, Counterweight: 40.2t Main configuration list of Sany STC1000T truck crane: 1, Hydraulic configuration Main oil pump : Rexroth (Made In Germany) 2, Winch motor : Kawasaki (Made In Japan) 3, Slewing motor : Sany Heavy Industry 4, Onboard configuration Slewing support : Sany Heavy Industry 5, Slewing reducer : Sany Heavy Industry 6, Winch reducer: Sany Heavy Industry 7, Gearbox: Eaton 8, Axle: Dajiang 9, Steering gear: Nantong Global 10, Tire: Taikeying/Qianjin Perfectly conditons,excellent after-sale service, Contact for more favorable price! 2.1 Superb performance The STC1000T truck crane has the strongest operating performance in the same tonnage industry, and the best driving performance in the same tonnage industry. It is a 100t truck crane with an absolute leading advantage. 2.2 Super long U-shaped main boom: 7-section main boom, using advanced single-cylinder pin telescopic technology, main boom length 12.3m ~ 64.5m, basic boom torque up to 4920kN.m, the longest main boom torque up to 2400kN.m, jib length 15.5m, optional 1 section 6m main boom extension section and 2 sections 6m jib extension sections, maximum lifting height 97.3m, farthest lifting range 72m, installation angles 0°, 15°, 30° 2.3 Compact, flexible, easy to transfer  Compact body design, vehicle length 14.276m, 5-axle chassis, 4-axle steering, turning diameter 19.6m, more flexible transfer, more suitable for factory, city and other narrow site construction. Equipped with 385 95R25 all-terrain tires, it has better off-road performance. 2.4 Heavy-duty high-strength frame The rectangular frame section is adopted to greatly improve the bending and torsion resistance of the frame; After more than 10,000 fatigue tests, the performance is more reliable. 2.5 Front swing outrigger (two-stage retractable) The transmission system is optimized, and the engine output torque is directly transmitted to the drive axle through the transmission shaft, which greatly improves the transmission efficiency. It can operate 360° and has strong front operation ability 2.6 Maneuverability: The electric proportional control technology and closed double-slewing system are adopted, and the control performance is more stable and reliable; The fixed-point pin retractable system is adopted, and the arm extension process is smoother and more reliable. 2.7 Safety All-round safety protection system, the main and auxiliary winches are equipped with three-circle protectors and height limiters to prevent over-release and over-winding of wire ropes, extreme angle protection, and outrigger pressure protection; Torque limiter: The highly intelligent torque limiter system is adopted to protect the hoisting operation in all directions to ensure accurate, safe and reliable operation;Vis mer

Anyang Hongtai Construction Machinery Co., Ltd

Anpu Road No.219 455000 Anyang City Henan 河南 Kina
