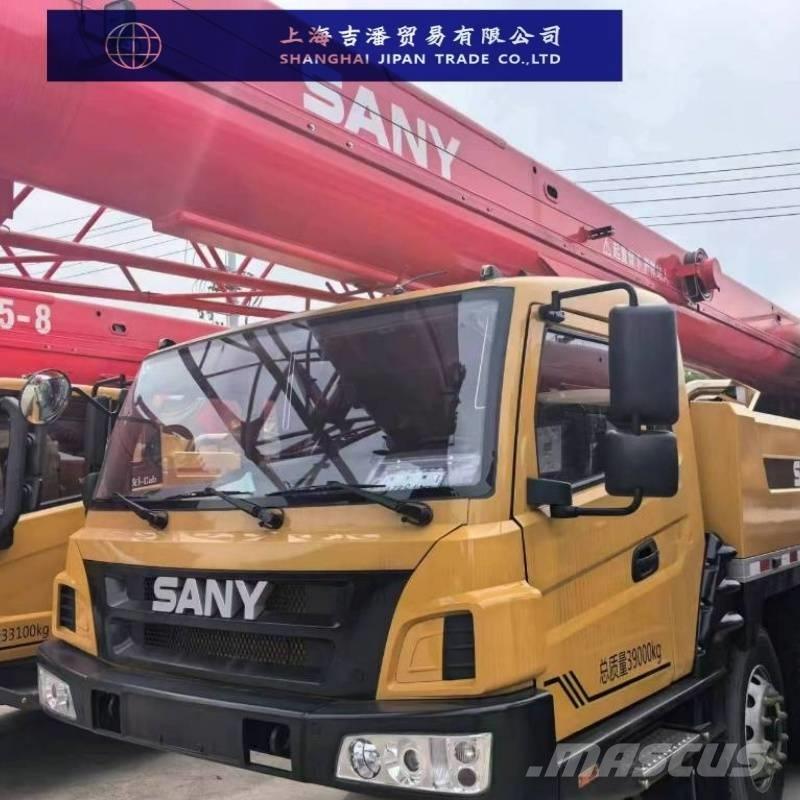

Sany STC500E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Value Overall Length 14260mm Overall Width 2650mm Overall Height 3800mm Total Mass of the Whole Machine 41000kg Engine Model Weichai WP9 / Yuchai YCK09 series Engine Maximum Power Weichai version: 247kW/1900rpm; Yuchai version: 265kW/1900rpm Engine Maximum Output Torque Weichai version: 1600N·m/(1000-1400)rpm; Yuchai version: 1600N·m/(1100-1450)rpm Maximum Driving Speed 90km/h Minimum Turning Radius 12m Maximum Climbing Gradient 47% Maximum Rated Total Lifting Capacity 50t Minimum Rated Radius 3m Swing Radius of Turret Tail 4.04m Maximum Lifting Moment of Basic Boom 2043kN·m Maximum Lifting Moment of Fully Extended Boom 1239kN·m Outrigger Span (Transverse × Longitudinal) 7.4m × 6.05m Basic Boom Length 12.24m Longest Main Boom Length 45.5m Longest Main Boom + Jib Length 61.5m Maximum Single-Rope Speed of Main Winch (No Load) 120m/min Maximum Single-Rope Speed of Auxiliary Winch (No Load) 120m/min Full Extension/Retraction Time of Boom 100/120s Full Lifting/Lowering Time of Boom 60/90s Slewing Speed 0-2r/min
