XCMG QY130K

Pris eks. MVA

Images20Videos2

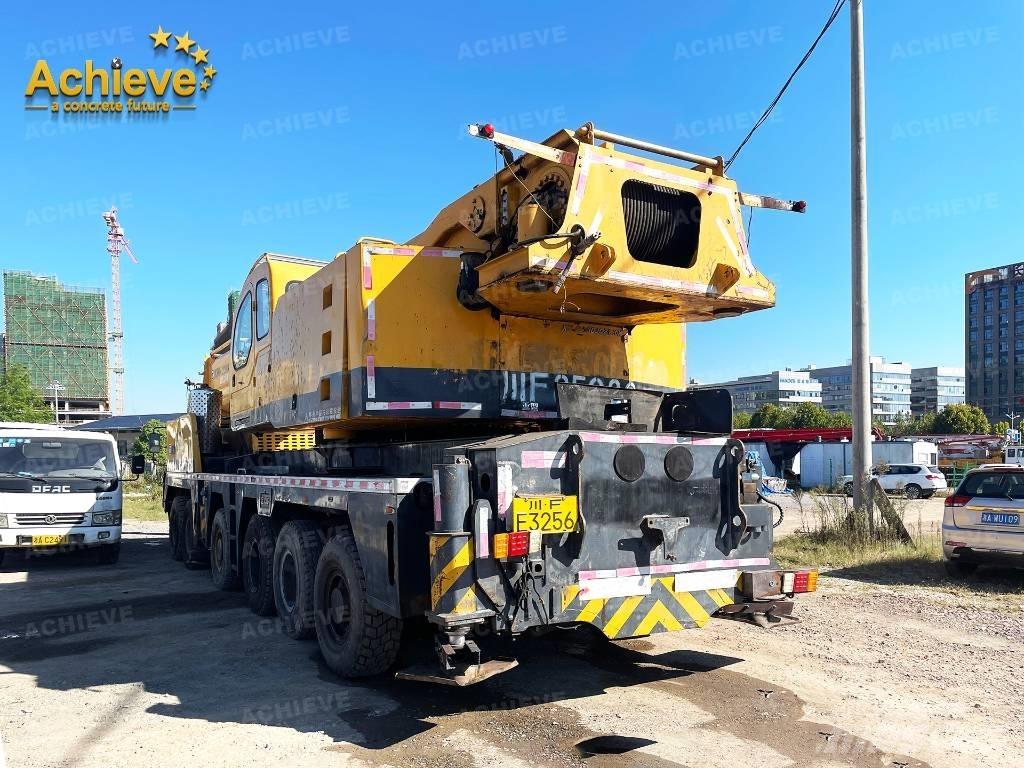

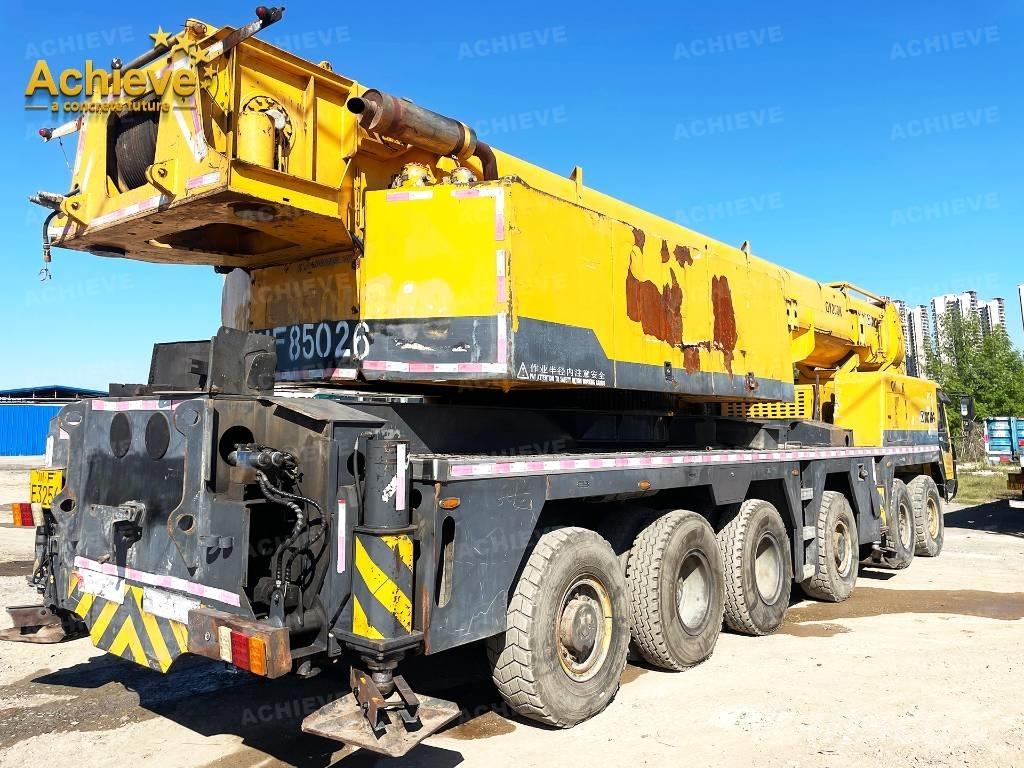

XCMG QY130K Allterreng kraner
XCMG QY130K Allterreng kraner
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Allterreng kraner
Merke / modell
XCMG QY130K
Årsmodell
2013
Driftstimer
2 159 t
Kategori
Overhalt,Demo-kjørt
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
564D3984

PRIS

Velg valuta

DETALJER

Totalvekt
54 900 kg
Maks løftekapasitet
100 000 kg
Maks løftekapasitet på Jib
100 000 kg
Euroklasse
Steg IIIA
Løftehøyde
2 660 cm
Motor overvogn
26.6M
Kran type
Hydraulisk kran
Orginal farge
yellow
Motor undervogn
54900
Motorprodusent
Get on TAD720VE TAD750VE Get off WP12.460N
Transportmål (LxBxH)
1560030003.85 m
Understell
Hjulvogn
Produsert i (land)
Kina
Leveringsbetingelser
FOB, CIF
Sertifiseringer
EPA, CE, TÜV
Beskrivelse
The eight-section "U-shaped" 82-meter main arm has a maximum lifting capacity of 100 tons; the lateral span of the H-shaped outriggers is 8.1 meters, and the full rectangular frame structure has a stronger load-bearing capacity and higher stability; the five-axle high-load truck crane chassis, three-axle drive, and three-axle steering, has strong power and flexible maneuverability. * Engine rated power (kw/(r/min)) 316/1900 * Maximum driving speed (km/h) 80 * Maximum climbing grade (%) 45 project unit parameter Parameters QY100K-I (Weichai) Size parameters Machine length mm 15600 Full width mm 3000 Overall height mm 3850 Wheelbase mm 1420+2420+1800+1420+1505 Wheelbase mm 2610/2610/2610/2315/2315/2610 Weight parameters Total mass in driving state kg 54900 Axle load kg 1 axis 8000/2 axis 8000/3 axis 7900/4 axis 12000/5 axis 12000/6 axis 7000 Power parameters Engine Model Get on TAD720VE TAD750VE Get off WP12.460N Engine rated power kw/(r/min) Boarding 174/2300 181/2300 Alighting 338/1900 Rated engine torque Nm/(r/min) Boarding 854/1400 1050/1500 Alighting 2110/1000-1400 Driving parameters Driving Maximum driving speed km/h 80 Minimum stable driving speed km/h 0.5 Turning Minimum turning diameter m twenty four Minimum turning diameter of arm head m 26.6 Maximum climbing grade % 40 Minimum ground clearance mm 300 Approach Angle ° 20 Departure angle ° 14 Braking distance m ≤10 Fuel consumption per 100 km L 70 Main performance parameters Maximum rated total lifting weight t 100 Minimum rated amplitude m 3 Maximum lifting moment of basic arm kN·m 3450 Turntable tail turning radius mm Balance weight 4200 Secondary roll 4590 Outriggers Vertical m 7.56 Horizontal m 7.6 Maximum lifting height Basic arm m 13.5 Longest main boom m 50.9 Longest main boom + jib m 70.4 Boom length Basic arm m 13.5 Longest main boom m - Longest main boom + jib m - Longest main boom + jib + extension section m 51+18.1+4 Working speed Maximum rotation speed r/min 2 Lifting speed Main lifting mechanism 105 Auxiliary lifting mechanism 104 Boom extension time Full extension s 160 Full Zoom 160 Amplitude change time Full arm lift s 75 Full arm drop s - Outrigger retraction level At the same time s 25 At the same time s 15 vertical At the same time s - At the same time s -Vis mer

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
