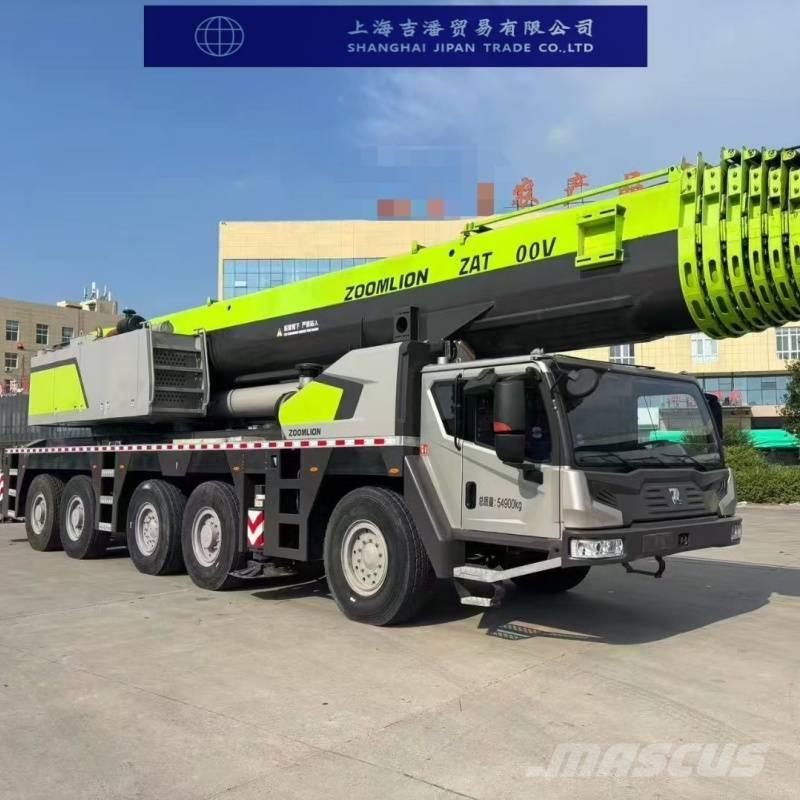

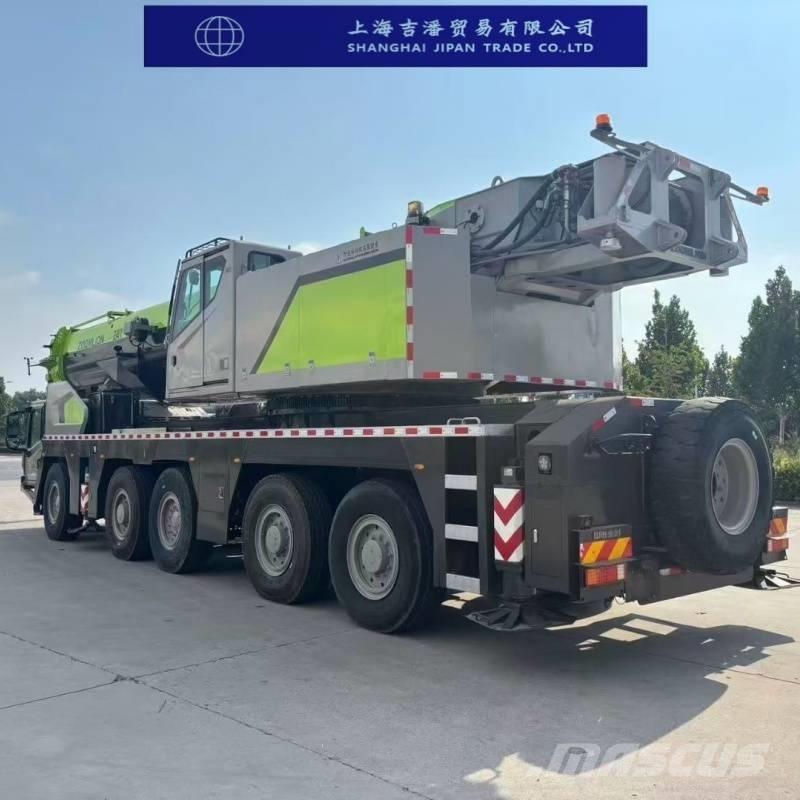

Zoomlion ZAT 2000 V

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter Name Parameter Value Maximum Rated Total Lifting Capacity 200,000 kg Self-weight in Travel State (Total Mass) 54,900 kg Overall Dimensions (Length × Width × Height) 15,660 × 3,000 × 4,000 mm Engine Model WP13.530E50 Rated Power 390 kW (at 2,100 r/min) Maximum Net Power 385 kW (at 2,100 r/min) Maximum Output Torque 2,220 N·m (at 1,200-1,500 r/min) Maximum Lifting Height of Main Boom 72 m Maximum Lifting Height of Jib 95 m (103 m with extended boom) Maximum Lifting Moment of Basic Boom 6,664 kN·m (at 8 m radius) Maximum Lifting Moment of Fully Extended Boom 207 t·m Maximum Lifting Capacity of Fully Extended Boom 11 t Maximum Single-rope Speed of Main Winch 120 m/min (4 layers) Maximum Single-rope Speed of Auxiliary Winch 70 m/min (4 layers) Boom Extension Time 12 min (related to temperature and engine speed) Boom Lifting Time 97 s Slewing Speed 0-1.4 r/min Maximum Operating Altitude 2,000 m Maximum Travel Speed 75 km/h Maximum Gradient Climbing Capacity 40% Minimum Turning Diameter 20 m Minimum Ground Clearance 305 mm Fuel Consumption per 100 km (Economic Mode) 78 L Longitudinal Distance of Outriggers 8.9 m Lateral Distance of Outriggers 8.3 m Length of Main Boom 13.4-72 m Lifting Angle of Main Boom -0.5-83° Length of Jib 12 m, 20 m, 28 m Mounting Angle of Jib 0°, 15°, 30°
