INFORMASJON

Gruppe
Andre komponenter
Merke / modell
Aerzen GM80L
Årsmodell
2006
Kategori
Brukt
Lagersted
Leduc, Alberta
Land
Canada
Mascus ID
494FF3B9

PRIS

Velg valuta

DETALJER

Lager nr.
109459
Beskrivelse

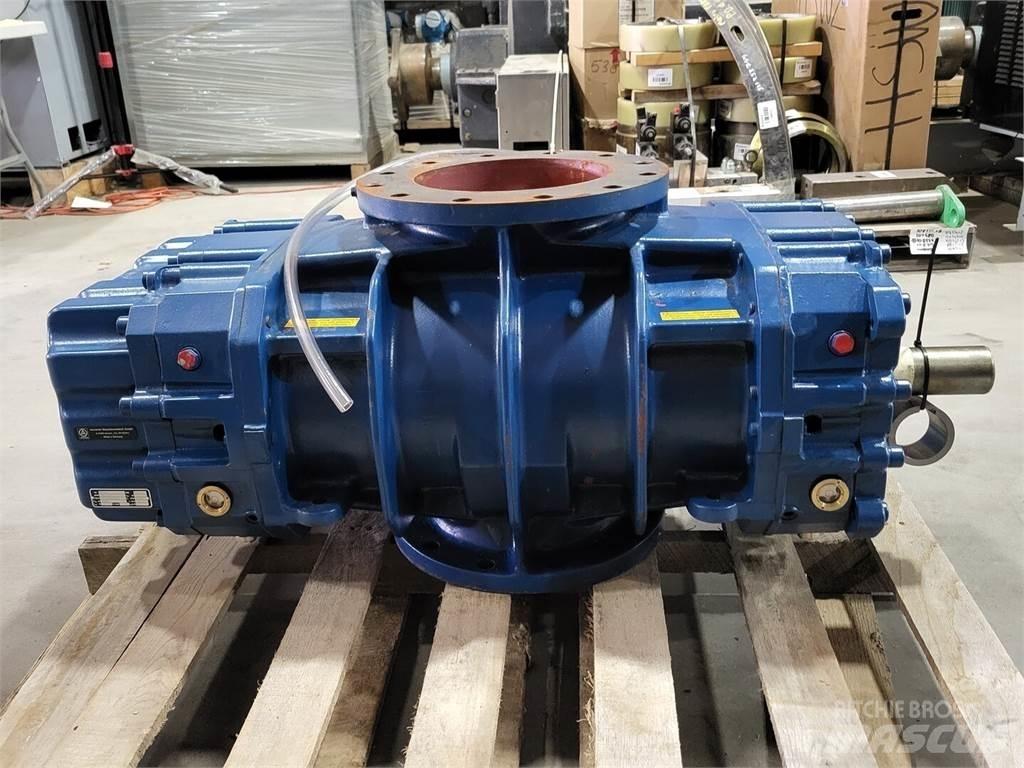

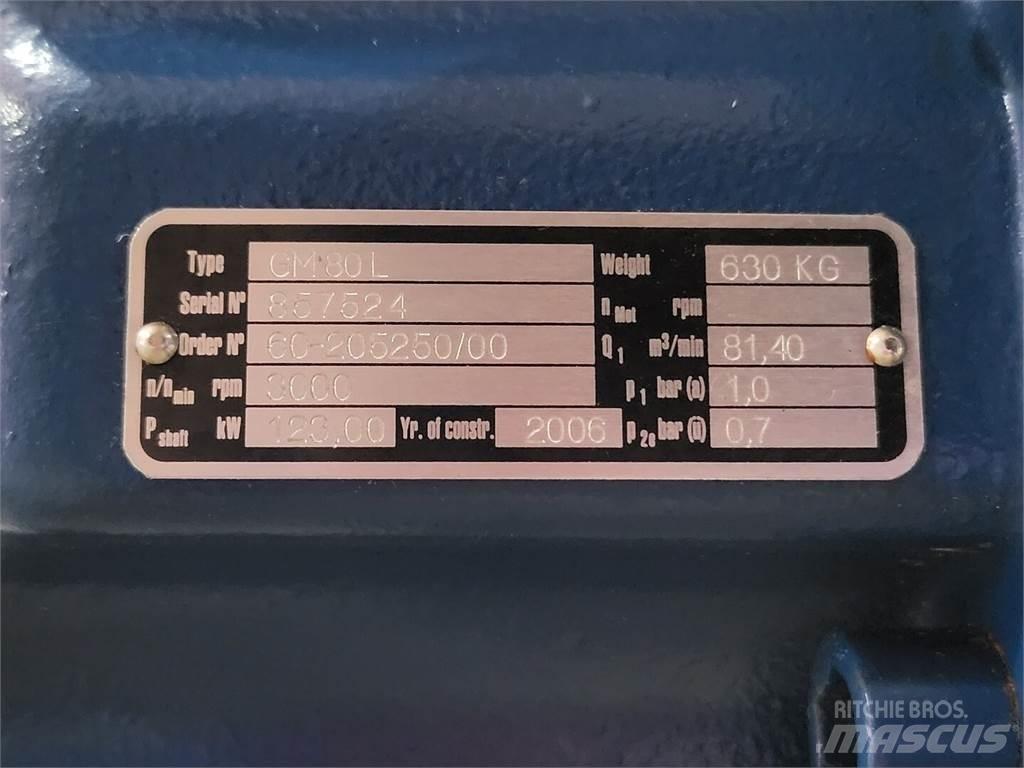

Positive Displacement Blower GM80L Title: Positive Displacement Blower GM80L SKU: 109459 Model: GM80L Year: 2006 Condition: Surplus New S/N: 857524 GeneralRPM:3000rpm Horsepower:165hp CFM:2874.6cfm Made In: GERMANY Dimensions: 20.00 (H) x 24.00 (W) x 48.00 (L) inches [PDF Brochure](... Three-lobe rotary pistons. Pulsation reduction by interference - The conveying chamber (cylinder) is sealed by the oil chambers (housing cover and gear case) by piston ring - labyrinth sealings, the driving shaft by a radial seal. In case the oil level is too high, oil can penetrate into the conveying chamber in an uncontrolled way. - During compression, heat is created which is partly dissipated to the ambient air via the external surfaces of blower and conveying pipes. External surfaces and conveying pipes may reach temperatures which can cause burns to unprotected skin. Flange Inner Dia.: 10" Rated Motor Power: 123 kW P1: 1.0 bar (14.50 psi) P2: 0.7 bar (10.15 psi)Vis mer

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
1
