Elliott G85

Pris eks. MVA

Ring for pris

Compnay LOGO
Images6
Elliott G85 Andre kraner
Elliott G85 Andre kraner
Elliott G85 Andre kraner
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Andre kraner
Merke / modell
Elliott G85
Kategori
Ny/ubrukt
Lagersted
Milford, Massachusetts
Land
USA
Generell tilstand
1
2
3
4
5
Mascus ID
2274B9CD

DETALJER

Beskrivelse

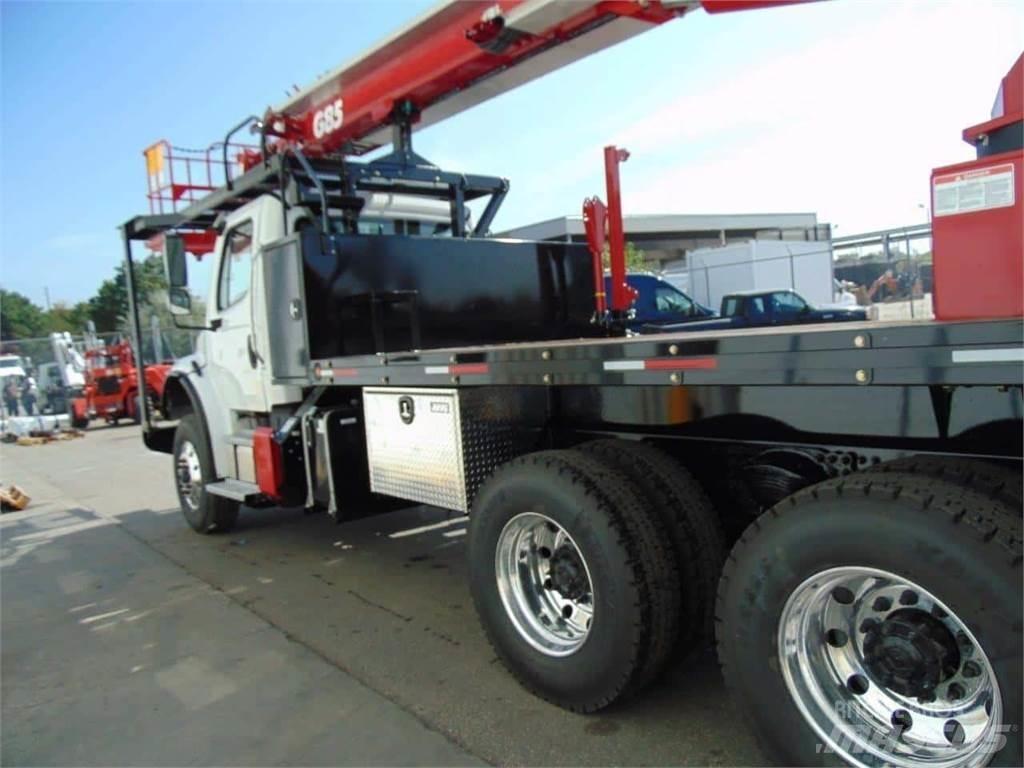

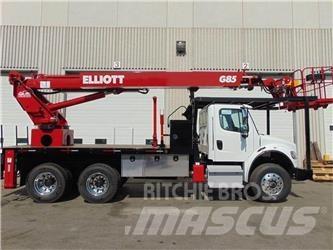

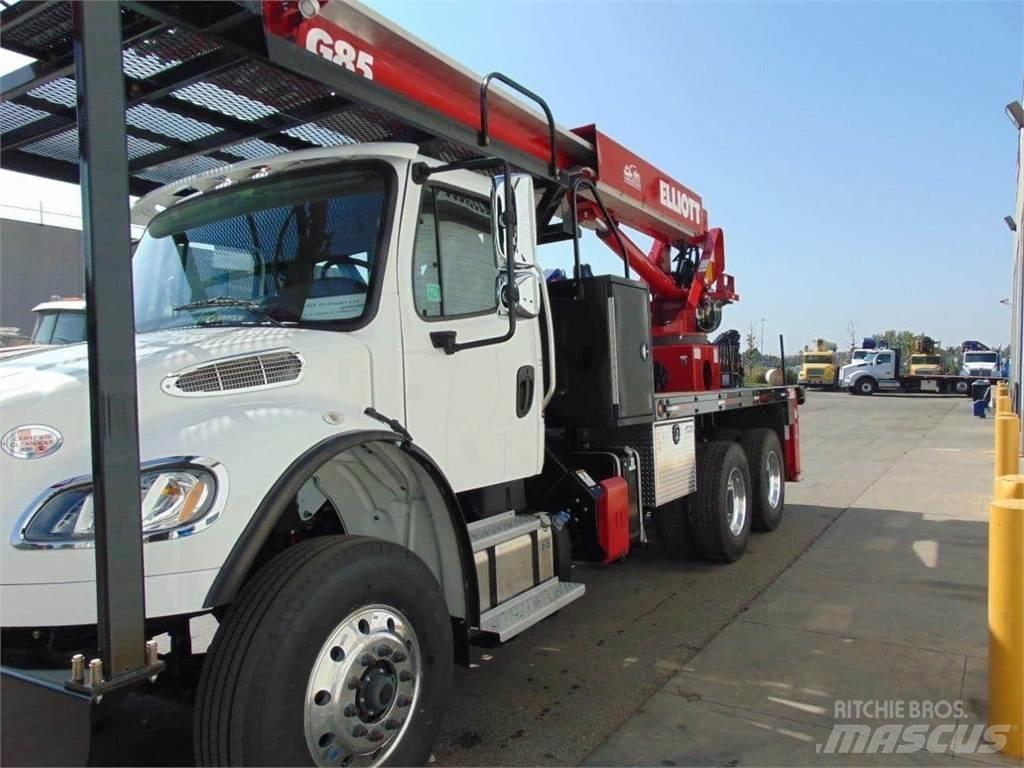

BOOM DETAILS NEW   Elliott G85 R HiReach:   4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted New Air Operated PTO (Chelsea) Hour meter, Hydraulic Pump Supply and Return Lines Hydraulic tank mounted on truck frame w/ shut-off valve Load Tested Standard Features include : Electronic Proportional three stick controls on platform.  Manual ground controls located on side of turret. Remote star/stop from upper and lower controls.  Two exposed cable carriers to boom tip. Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs One double acting  7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation. Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box. Hydraulic OUT and DOWN  “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front. Included Options Are : 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable Platform mounted jib with hydraulic winch drum mounted on horizontal arm 110 V power supply to work platform, Sign forks on platform  (2 pcs) 16’ x 96” Aluminum bed,    Truck cab windshield guard,  steel carrier cover 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck TRUCK DETAILS New – Freightliner M2-106  3-axle Truck: 56,000 lb GVWR Air Brakes 350 Hp Cummins Diesel Engine Allison Automatic Trans. Truck cab white in colour 16,000 lb front axle 40,000 lb rear axle on Tuftrac Susp. with 11R22.5 tires on Polished Alum rims Air brakes chrome bumper & grille Also Includes:  Air. Cond., am/fm/CD stereo & Bluetooth, tilt steering, cruise control, power windows & door locks, Air Ride Drivers Seat, 2-man passenger bench seat, etc.. Optional Equipment: Aluminum Under Deck Storage Boxes Hydraulic oil tank heater Drawplate with pintle hook Vis mer

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts USA
