Haas VF-4

Pris eks. MVA

Compnay LOGO
Images24
Haas VF-4 Anlegg - Annet
Haas VF-4 Anlegg - Annet
Haas VF-4 Anlegg - Annet
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Anlegg - Annet
Merke / modell
Haas VF-4
Årsmodell
2014
Kategori
Brukt
Lagersted
Langley, British Columbia
Land
Canada
Mascus ID
FE29CCBC

PRIS

Velg valuta

DETALJER

Lager nr.
127506
Beskrivelse

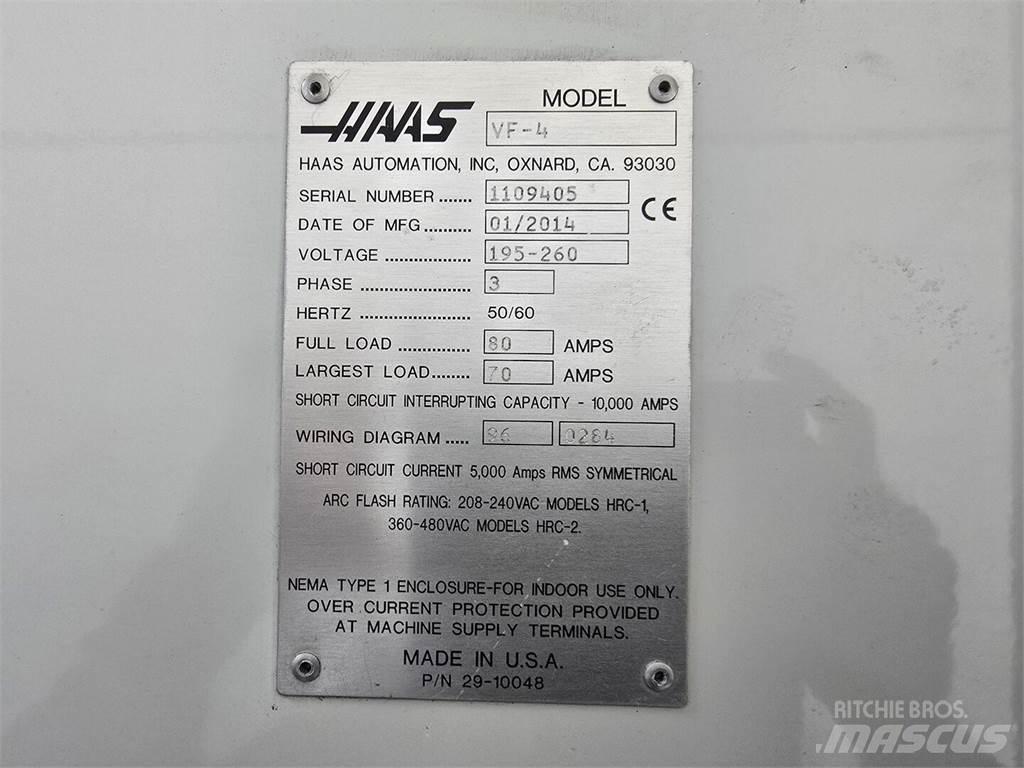

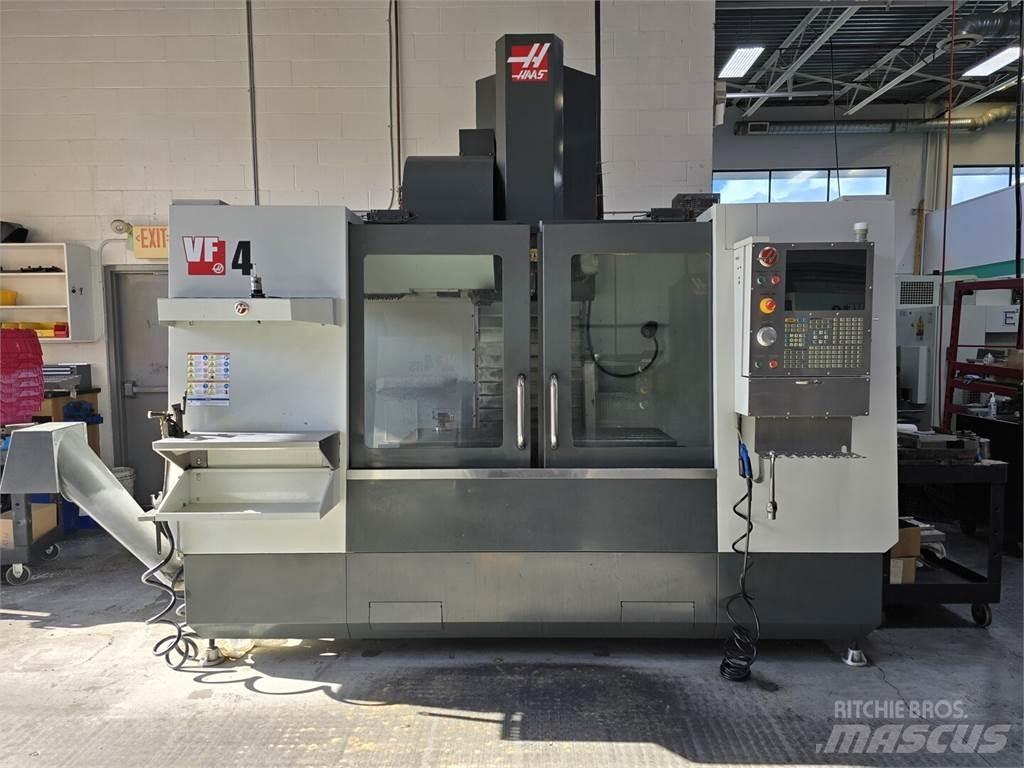

VF-4 CNC Vertical Milling Machine w/ Tooling Title: VF-4 CNC Vertical Milling Machine w/ Tooling SKU: 127506 Model: VF-4 Year: 2014 Condition: Used S/N: 1109405 GeneralTable Size:52" x 19.5" CNC:Yes ElectricalVoltage:220/440volts Phase:3-phase Amps:35 - 70amps Dimensions: 106.00 (H) x 99.00 (W) x 152.00 (L) inches [Video 1](... 2](... 1,330 total hours indicated (358 cycle start hours/ 230 feed cutting hours) Travels: - X: 50" - Y: 20" - Z: 25" Spindle Nose to Table (max - min): 29.2" - 4.2" Max Rating: 30 hp Max speed: 8,100 rpm Max torque: 90.0 ft-lbf ... 2000 rpm Tapers: CT40 | BT40 | HSK-A63 taper T-Slot Width: 0.626" to 0.630" T-Slot center distance: 3.15" Number of Std T-slots: 5 Max weight on table: 3,500 lb (evenly distributed) Feedrates: 650 ipm max cutting 1000x1000x1000 ipm XYZ rapids Spindle speed: 8,100 rpm Spindle power: 30 hp Features: - Inline Direct-Drive drive system - Air / oil injection bearing lubrication - Liquid cooled cooling - Haas CNC control - WIPSE - Programmable coolant - Chip auger - Air gun - Side Mount 24 ATCE - (4) Kurt vines New encoder just put in it New Ball screw CAT 40 tool holders can be purchased separatelyVis mer

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
