Haas VF-7/50
Pris eks. MVA
Skriv ut
INFORMASJON
Gruppe
Anlegg - Annet
Merke / modell
Haas VF-7/50
Årsmodell
2006
Kategori
Brukt
Lagersted
Langley, British Columbia
Land
Canada
Mascus ID
8D35D632
PRIS
Velg valuta
DETALJER
Lager nr.
138726
Beskrivelse
30 hp Vertical Machine Centre VF-7/50
Title: 30 hp Vertical Machine Centre VF-7/50
SKU: 138726
Model: VF-7/50
Year: 2006
Condition: Used

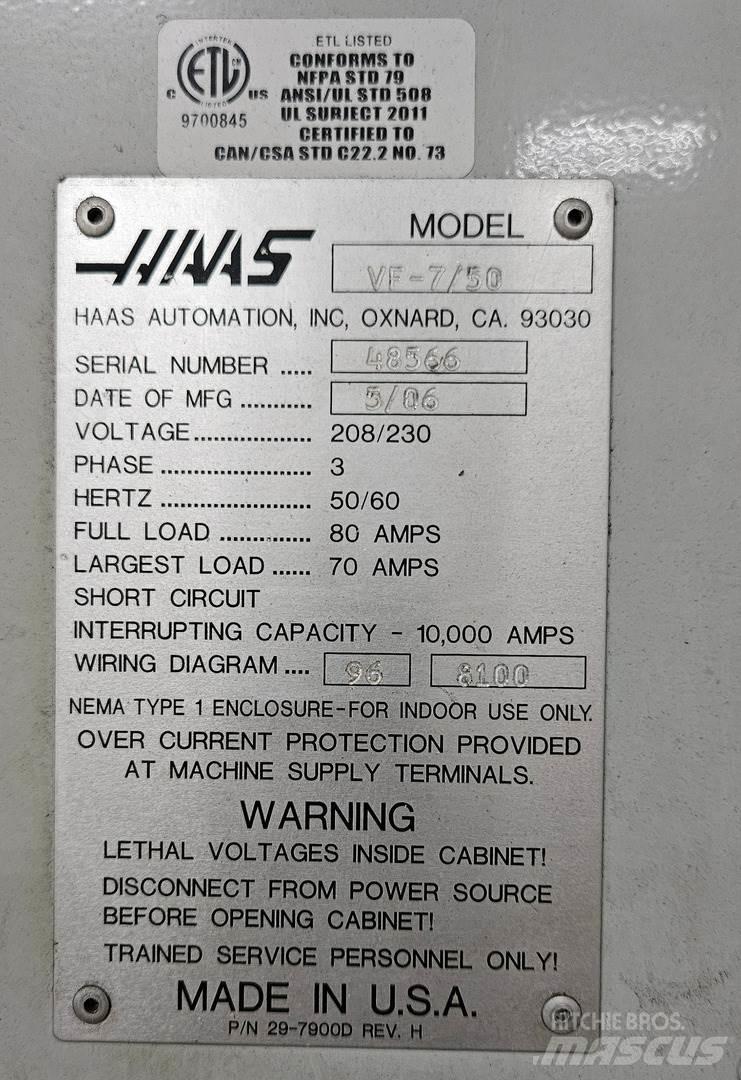

S/N: 48566
GeneralSpindle Taper:CAT 50
Cross Travel (Table):84 x 32 x 30"
Table Size:84 x 28"
Speed:7500 rpm
CNC:Yes
ElectricalVoltage:208/230volts
Phase:3-phase
Amps:80amps

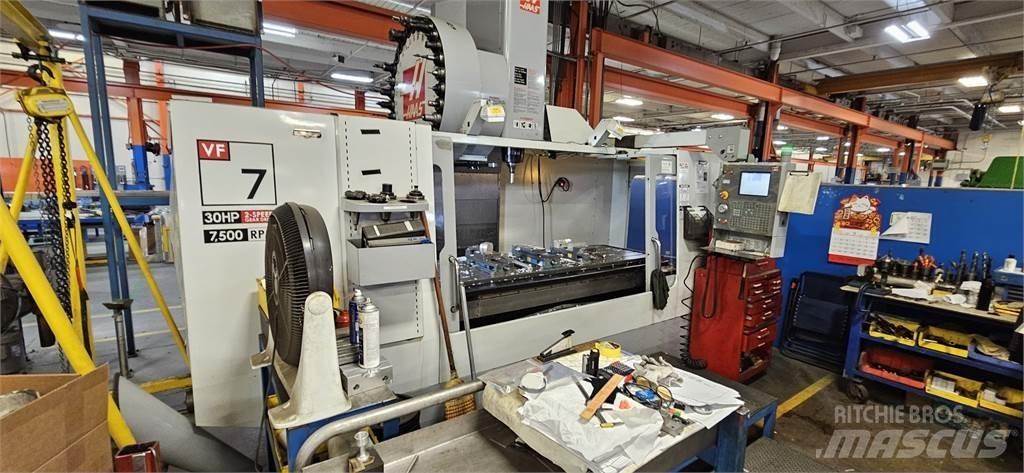

Vertical Machining Center with Haas CNC Control
Table Size: 84" x 28"
Maximum Weight on Table: 4000 lbs
Travels:
- X-Axis: Travel 84"
- Y-Axis: Travel 32"
- Z-Axis: Travel 30"
Spindle Speed: 7,500 RPM
Spindle Nose to Table: 4" - 34"
Number of Tool Positions: 30+1 Station Side Mounted ATC
Rapid traverse rates (x, y, z): 400 ipm / 600 ipm / 600 ipm
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Canada
