SCM class si 350

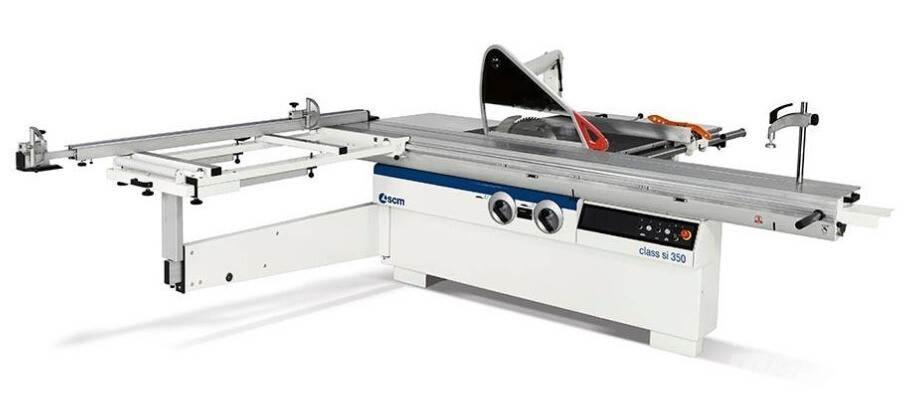

class si 350 Circular Saw w/ Tilting Blade Title: class si 350 Circular Saw w/ Tilting Blade SKU: 90111 Model: class si 350 Condition: New GeneralHorsepower:11hp Table Size:1040 x 630 mm Blade Diameter:350 mm Voltage:600volts Phase:3-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 82.70 (H) x 166.73 (W) x 268.70 (L) inches Max Cutting Height at 90o: 118 mm Max Cutting Height at 45o: 81 mm Blade Tilt: 45 degrees Blades Lifting and Tilt: Manual Main Blade Rotating Speed: 4000 rpm Scoring Unit Rotating Speed: 8500 rpm Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp) Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm Cutting Width on Parallel Fence: 1500 mm Exhaust Outlet Diameter: - At the Base: 120 mm - On Overhead Protection: 100 mm - On Riving Knife: 60 mm Basic Machine Net Weight: 1050 kg Standard Equipment and Options - Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt - Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system - Eccentric clamp - Squaring frame the fast fence positioning of angular cuttings - Outfeed table extensions - Sliding carriage length 3200 mm - Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment - Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade Additional Features - Motor Start/Stop Pushbuttons (integrated in the sliding carriage for saw and scoring blade) - Fence for angular cutting - Seaworthy packing [PDF Brochure](... Footprints](...
