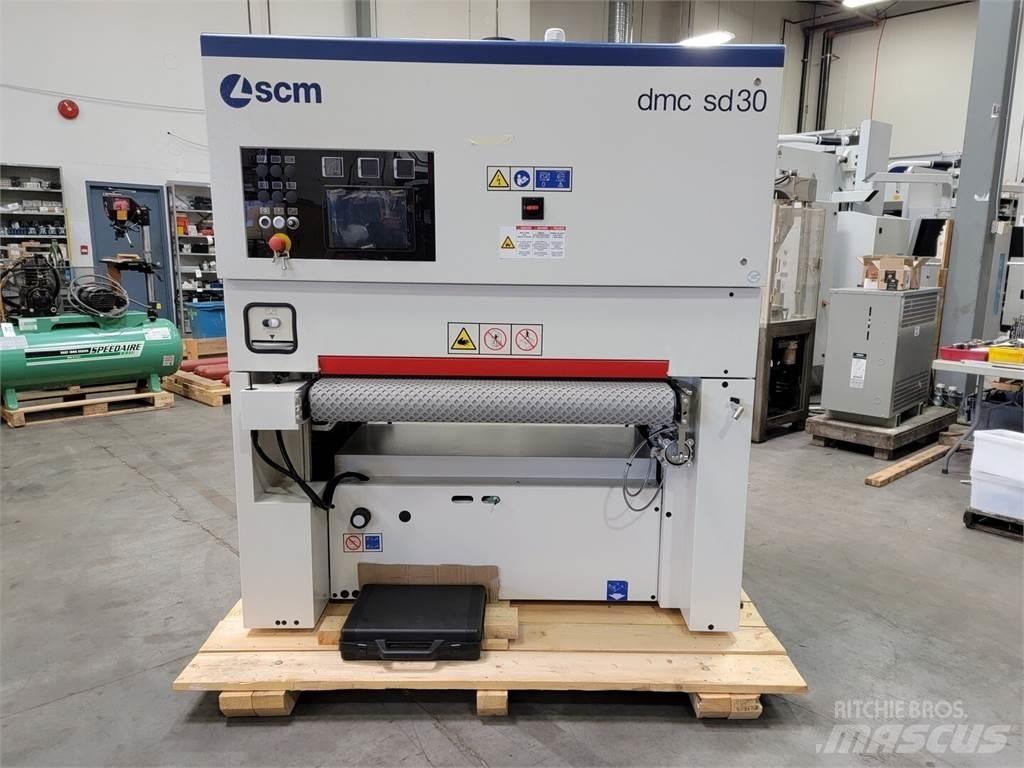

SCM dmc sd 30

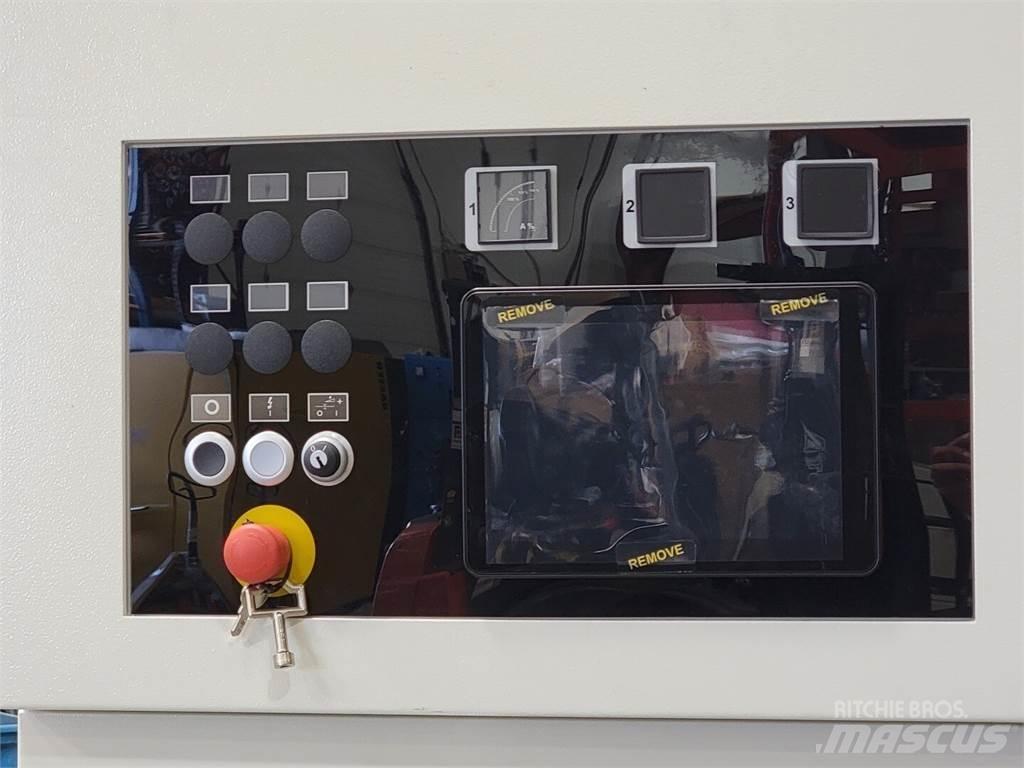

dmc sd 30 composition RCS 110 Automatic Two Head Wide Belt Sander Title: dmc sd 30 composition RCS 110 Automatic Two Head Wide Belt Sander SKU: 90137 Model: dmc sd 30 Condition: New GeneralHorsepower:20hp Max. Workpiece Width:43.3" Max. Workpiece Thickness:6.7" Type:Belt ElectricalVoltage:600volts Phase:3-phase Made In: ITALY Dimensions: 77.20 (H) x 65.00 (W) x 71.70 (L) inches Number of Heads: 2 Min. Working Thickness: 4 mm Sanding Belt Width: 1115 mm Sanding Belt Length: 1900 mm Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp) Feed Belt Speed: 4.5 - 9 m/min dmc sd 30 composition RCS 110 With 1st "R" group (roller) and 2nd "CS" combined group (roller/pad) "B" version for RCS 95 - RCS 110 - on/off pneumatic selector of the roller on the 1st "R" group - on/off pneumatic selector of the roller on the 2nd "CS" group - "MESAR" elastic sectional pad - on/off pneumatic selector of the pad - "Logic 50 K" electronic programmer - electronic positioning for working table All pads are also equipped with: - standard equipment complete with no. 2 contact inserts as follows: - flat semi-stiff contact insert made of steel flexible plate 0.6 mm thickness + felt D=0.68 and extractable graphite cloth. It is suitable for the sanding of solid wood or veneered panels. - soft semi-sandwich contact insert made of flexible steel plate, 0.3 mm thickness + rubber + felt D=0.68 extractable graphite cloth. It is suitable for the sanding of veneered and/or painted panels. 10" Control panel with "eye-S" integration software For machine equipped with elastic or electronic sectional pad - 10" touchscreen control panel Machine control features: - control of 2 main operating groups - total control of one electronic sectional pad with activation, exclusion and selection of the pad. Pre-selection and activation of the + or sectors function on the left/right panel side - control of on/off of the operating groups - control of the feed by inverter - working thickness control - sequential automatic start up of main motors - blowers timing control for abrasive belts cleaning - machine control in manual or semi-automatic mode or with working programs which can be configured by the operator. Possibility to save 999 programs - machine report (working and standby hours) - machine damage alarms control - available languages: IT, EN, FR, ES, DE Additional Features - Single-phase transformer - RA grooved steel calibrating roller, 1st group - Automatic device for feed belt tracking and tensioning - Pallet + nylon - French language plate - English machine plate
