SCM minimax cu 300c

Pris eks. MVA

Compnay LOGO
Images22

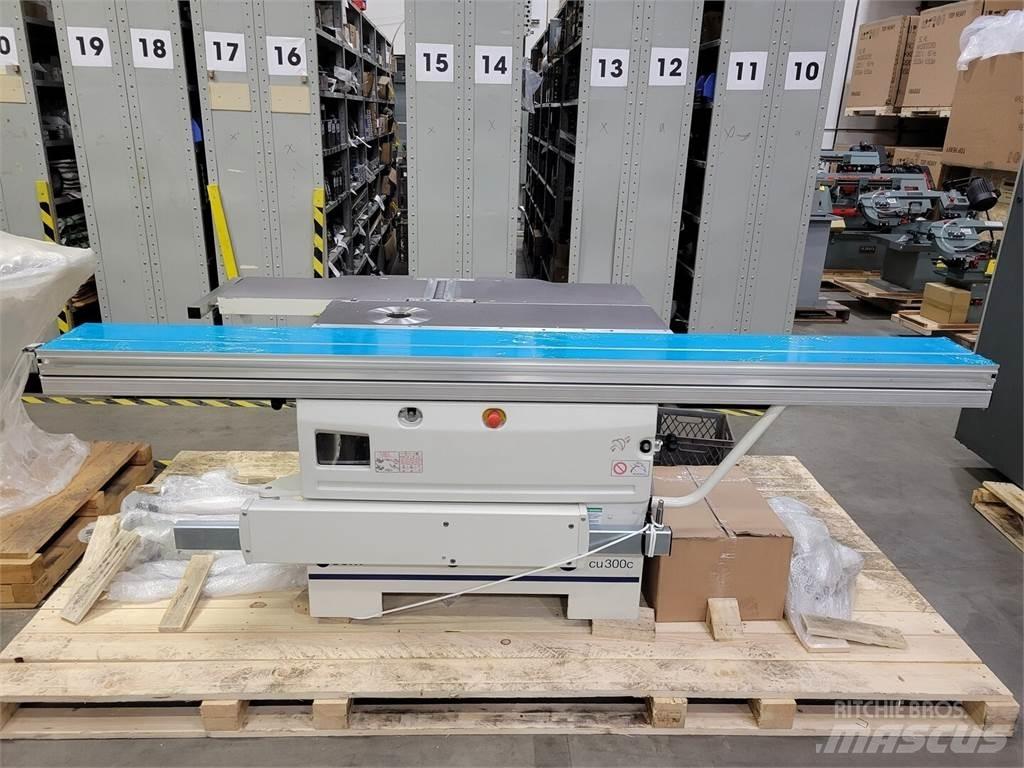

SCM minimax cu 300c Anlegg - Annet
SCM minimax cu 300c Anlegg - Annet
SCM minimax cu 300c Anlegg - Annet
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Anlegg - Annet
Merke / modell
SCM minimax cu 300c
Kategori
Brukt
Lagersted
Langley, British Columbia
Land
Canada
Mascus ID
2B83DE1B

PRIS

Velg valuta

DETALJER

Lager nr.
90128
Beskrivelse

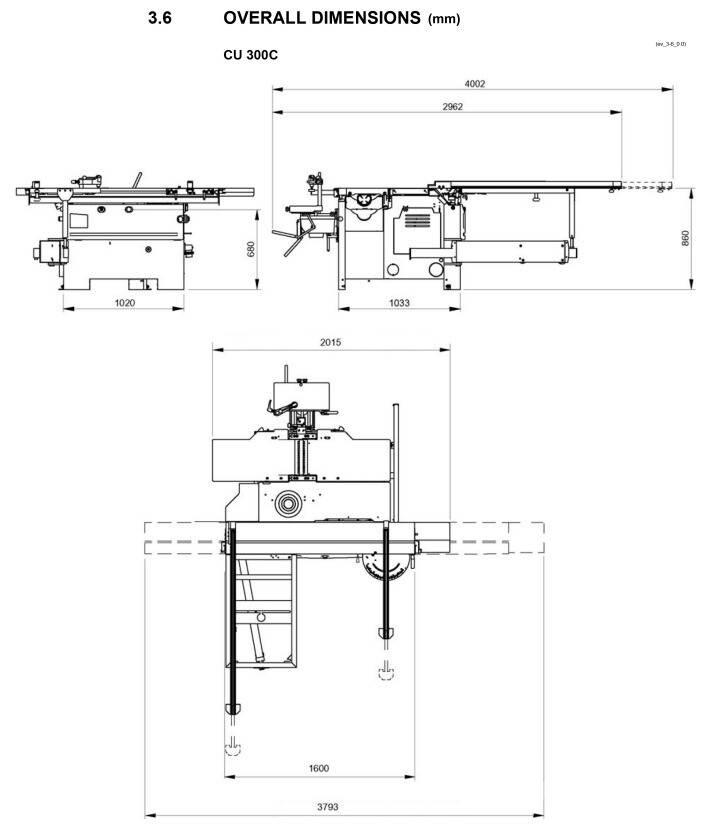

minimax cu 300c Universal Combo Machine Title: minimax cu 300c Universal Combo Machine SKU: 90128 Model: minimax cu 300c Condition: New GeneralHorsepower:4.8hp Blade Diameter:315 mm (With Scoring Blade Installed) Voltage:230volts Phase:Single-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 46.00 (H) x 63.00 (W) x 163.00 (L) inches ** Combination machine of Planer, Jointer, Saw, Router Planer "Tersa" cutterblock" 72 mm diameter with 3 knives with rapid locking system Max. Stock Removal: 4 mm Surfacing Tables Total Length: 1510 mm Thicknessing Table Dimensions: 585 x 300 mm Feed Speed on Thicknesser (m/min): 7 Min./Max. Working Height on Thicknesser: 3/230 mm Circular Saw Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1115 x 335 mm Blades Tilting: 90o / 45o Max. Saw Blade Projection from Table at 90o / 45o: 100 / 78 mm Max. Squaring Stroke: 2600 mm // 8.5 ft Cutting Width on Parallel Fence: 820 mm "DADO SET" capability Mechanical presetting to use a tool (not included) in place of the main blade. - Max. diameter: 200mm / 8" - Max. thickness: 19 mm / 0.75" This machine is suppled with saw spindle, 5/8" diameter Spindle Moulder Available with the Following Spindle Diameters: 30, 32, 35, 40, 50 mm, 3/4", 1", 1-1/4" Max. Useful Spindle Length: 100 mm (70 mm with 3/4" spindle) Spindle Moulder Speeds ... 50 Hz: 3500 / 7000 / 10,000 rpm Max. Tool Diameter when Profiling: 210 mm Max. Diameter of Tool Lowered Under the Table at 90o: 180 mm Belt driven scoring unit complete with blade Adjustment from the machine outside without need of tools Scoring Blade Technical Features: - External Diameter: 80 mm - Internal Diameter: 20 mm - Z 12 - Rotation Speed: 7700 rpm Professional Fences Complete with: - Saw Fence with quick loading device and micrometric adjustment - Surfacing fence with 90o / 45o continuously adjustment Cast Iron Mortiser Complete with 120 mm diam. exhaust hood and 16 mm chuck - Table Dimensions: 470 x 230 mm - Strokes: X = 160 mm, Y = 120 mm, Z = 110 mm Additional Features - Exhaust Outlets Diameter: 120 mm - Additional table on the sliding table for the support of panels with large dimensions - 2 extra handwheels for the operating units movement - Handwheel with gravitational numerical readout for the thicknessing table positioning - Interchangeable spindle: 100 mm max. height (70 mm if 3/4" spindle) - Spindle moulder shaft of 1-1/4" - Reverse spindle rotation (non CE) - Wheels for machine movement - Locking by countersunk socket screw - Triple wall for 2600 mm sliding table - Machine language: English [PDF Brochure](...Vis mer

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
