INFORMASJON

Gruppe
Anlegg - Annet
Merke / modell
SCM minimax sc 2c
Kategori
Brukt
Lagersted
Langley, British Columbia
Land
Canada
Mascus ID
273108C2

PRIS

Velg valuta

DETALJER

Lager nr.
90123
Beskrivelse

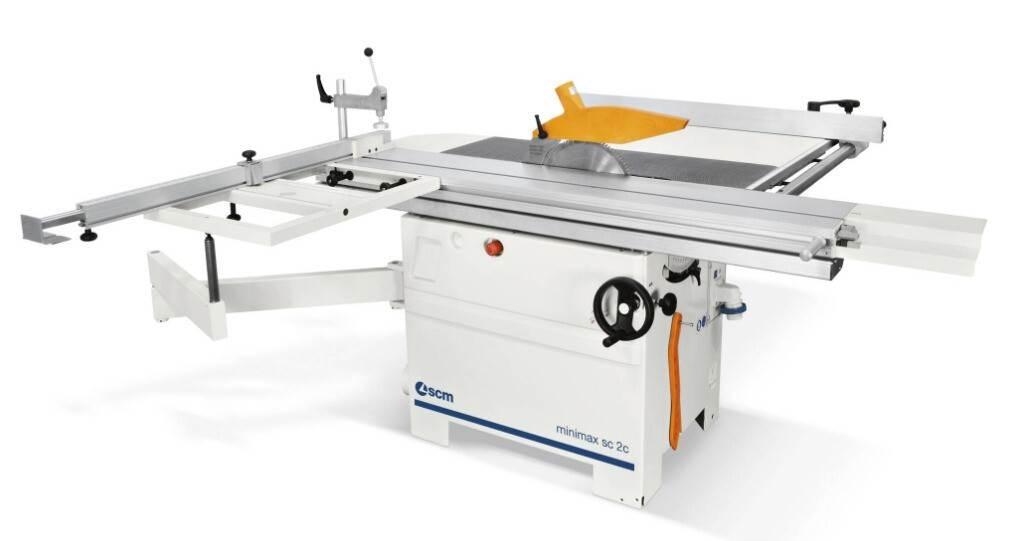

minimax sc 2c Circular Saw w/ Tilting Blade Title: minimax sc 2c Circular Saw w/ Tilting Blade SKU: 90123 Model: minimax sc 2c Condition: New GeneralHorsepower:3.4hp Table Size:1020 x 325 mm Blade Diameter:315 mm Voltage:220volts Phase:Single-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 3.74 (H) x 121.70 (W) x 152.00 (L) inches Blades tilting: 90o to 45o Max. saw blade projection from table at 90o/45o: 100/78 mm Max. squaring stroke (standard): 1600 mm Cutting width on parallel fence: 1270 mm Exhaust outlet diameter: 120 mm Standard Equipment - Extruded anodized aluminum sliding table (dimensions 270 x 124 x 1600 mm), sliding on high precision hardened steel guideways - Squaring frame complete with: - telescopic fence with 1 retractable stop - eccentric clamp - support - Dedicated saw parallel fence complete with: - "high rigidity" cast iron fence support - micrometric adjustment and cam-locking system - rectified steel round sliding bar, 45 mm diameter Additional Features - Belt driven scoring unit complete with blade (Adjustment from the machine outside without need of tools) - Scoring blade technical features: - External diameter: 80 mm - Internal diameter: 20 mm - Z 12 - Rotation speed: 7700 rpm - 2 Squaring flip-over stops - Triple Wall - Delivery Ex Factory [PDF Brochure](... Footprints](...Vis mer

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
