SCM nova si 400

Pris eks. MVA

Compnay LOGO
Images24
SCM nova si 400 Anlegg - Annet
SCM nova si 400 Anlegg - Annet
SCM nova si 400 Anlegg - Annet
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Anlegg - Annet
Merke / modell
SCM nova si 400
Kategori
Brukt
Lagersted
Langley, British Columbia
Land
Canada
Mascus ID
D8EA5208

PRIS

Velg valuta

DETALJER

Lager nr.
90101
Beskrivelse

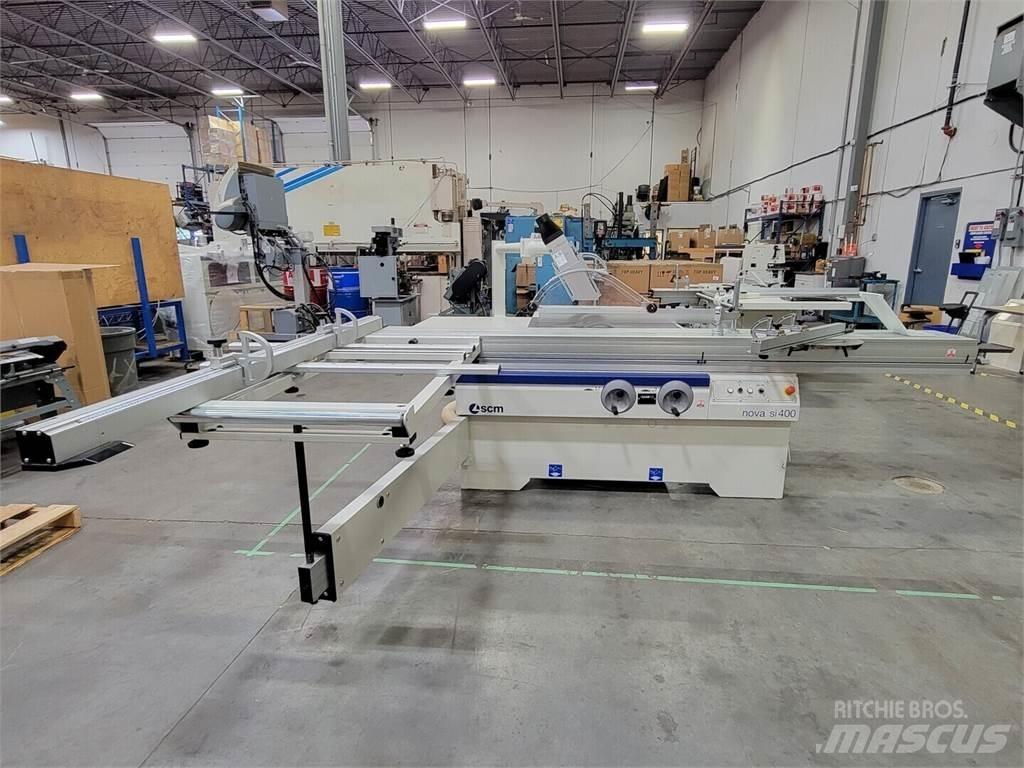

nova si 400 Circular Saw 220V w/ Tilting Blade Title: nova si 400 Circular Saw 220V w/ Tilting Blade SKU: 90101 Model: nova si 400 Condition: New GeneralHorsepower:11hp Table Size:1040 x 630 mm Blade Diameter:400 mm Voltage:220volts Phase:3-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 44.50 (H) x 203.00 (W) x 279.00 (L) inches Max Cutting Height at 90o: 140 mm Max Cutting Height at 45o: 97 mm Blade Tilt: 45 degrees Blades Lifting and Tilt: Manual Main Blade Rotating Speed: 3700 rpm Scoring Unit Rotating Speed: 8500 rpm Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp) Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm Cutting Width on Parallel Fence: 1270 mm Exhaust Outlet Diameter: - At the Base: 120 mm - On Overhead Protection: 80 mm - On Riving Knife: 60 mm Standard Equipment and Options - Anodized aluminum alloy carriage on hardened steel guides, which are fixed on the carriage by means of mechanical bending system - Sliding carriage length 3200 mm - Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt - Squaring frame the fast fence positioning of angular cuttings - Outfeed table extensions - Manual rip fence with position reading on metric rule - Sliding on steel bar, 40 mm diameter with micrometric adjustment Safety/Protections - Emergency pushbutton located on the front machine side - Emergency pushbuttons located on parallel fence side (CE version) - Overload protection - Blade protection on riving knife (versions with electrical protections) exhaust outlet 60 mm - Overhead saw guard (CE and USA-Canada versions) incorporated dust extraction, 80 mm outlet diameter - Automatic brake on main sawblade (CE and USA/Canada version) - Padlockable main switch - Auxiliary low voltage circuit (110 voltage) - Certificate of conformity with "C.E. Standards" (CE version) - "CSA" rated electrical components, including cables (USA/Canada version) Additional Features - Eccentric Clamp - Seaworthy Packing [PDF Brochure](... Footprints](...Vis mer

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
