T.A.P.S PHASOR

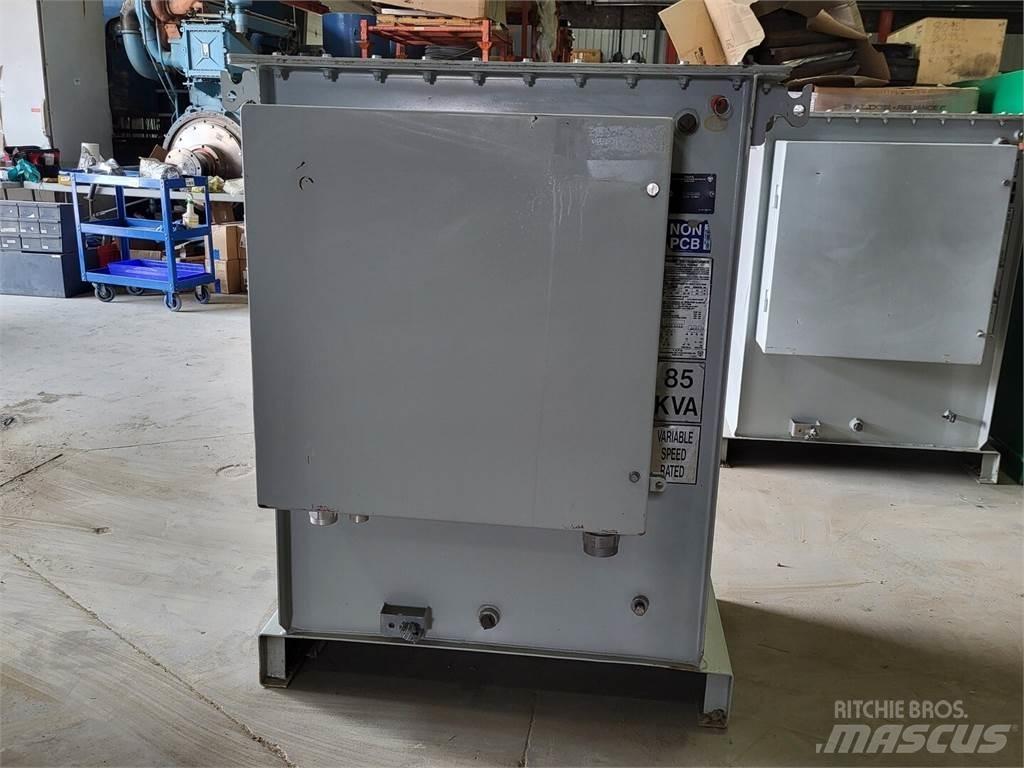

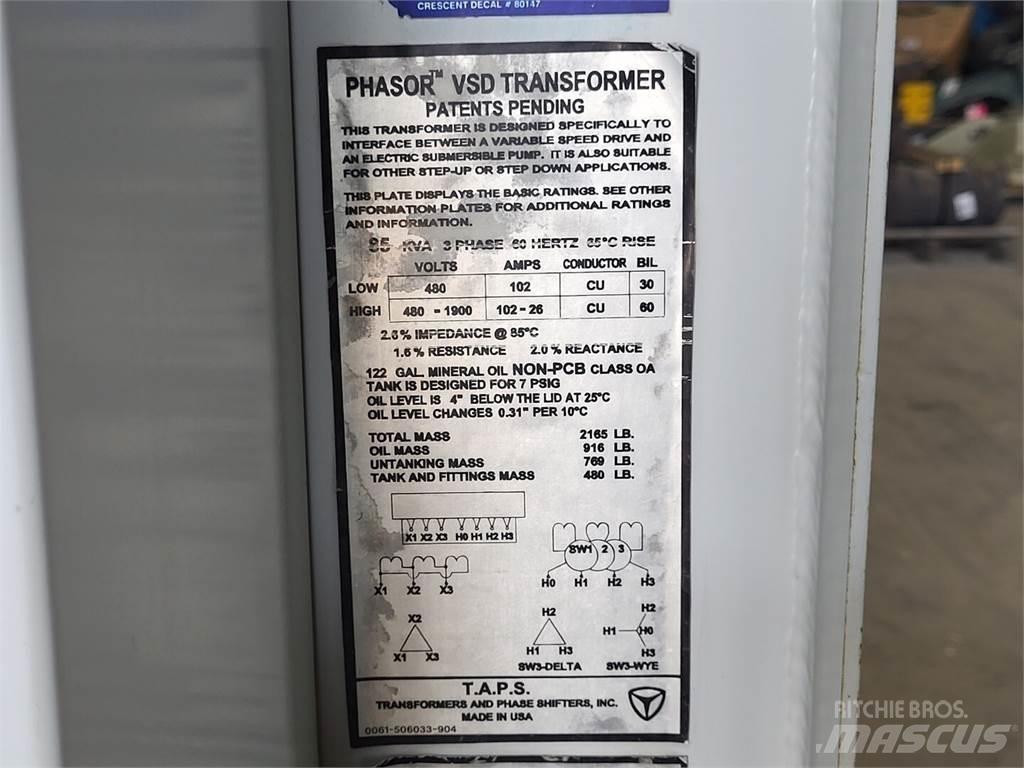

85 kVA VSD Transformer, 480-1900 pri. volts, sec 480 sec. volts Title: 85 kVA VSD Transformer, 480-1900 pri. volts, sec 480 sec. volts SKU: 138473 Model: PHASOR Condition: Used S/N: 5712455005 ElectricalkVA:85kVA Primary Voltage:480-1900volts Secondary Voltage:480volts Phase:3-phase GeneralTransformer Type:Distribution Transformer Auto VS Isolation:Isolation Oil vs Dry:Oil Dimensions: 53.00 (H) x 35.00 (W) x 48.00 (L) inches Phase: 3 Phase Frequency: 60 Hz Temperature Rise: 65°C Voltage - Low (Secondary): 480 volts Voltage - High (Primary): 480 - 1900 volts Amps - Low: 102 A Amps - High: 102 - 26 A Conductor Material: CU Basic Impulse Level (BIL): 30 kV (Low) / 60 kV (High) Impedance: 2.6% at 85°C Reactance: 2.0% Resistance: 1.6% Oil Type: Mineral Oil (Non-PCB, Class OA) Oil Capacity: 122 gallons Tank Pressure Rating: Designed for 7 PSIG Total Mass: 2,165 lbs Oil Mass: 916 lbs Untanking Mass: 769 lbs Tank & Fittings Mass: 480 lbs Cooling Type: Oil Natural Air Natural (ONAN)
