CAT 312 D
Pris eks. MVA
Skriv ut
INFORMASJON
Gruppe
Beltegraver
Merke / modell
CAT 312 D
Årsmodell
2024
Driftstimer
550 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
6DA55301
PRIS
Velg valuta
DETALJER
Lager nr.
1
Drivstoff
Diesel
Serie/VIN nummer
1
Antall tidligere eiere
1
Sist godkjent (dato):
2025-07-01
Tilstand understell
Good Condition
Motor
Original
Totalvekt
12 000 kg
Effekt
59 kW (80,2 hk)
Motorprodusent
Original
Reg. nr.
1
Euroklasse
Steg V
Volum skuff
0,53 m3
Belte bredde
600 mm
Ytelse hydraulikk
232 l/min
Topphastighet
5,10 km/h
Transportmål (LxBxH)
7610 x 2490 x 2830 mm
Orginal farge
Original
Arm/stikke lengde
2 500 mm
Tilstand Info/Garanti
1 Year
Produsert i (land)
USA
Leveringsbetingelser
FCA, FOB, CIF, EXW
Sertifiseringer
EPA, CE
Utstyr
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Ektrautstyr
Kvistavledere
Klimaanlegg
Tilleggshydraulikk
Motor forfilter
Dyrkeskuffe
Motorvarmer
Batteri frakobling
Roterende varsellys
Dieselvarmer
Joystick
Standard skuffe
Kabel skuffe
V profil skuffe
Beskrivelse

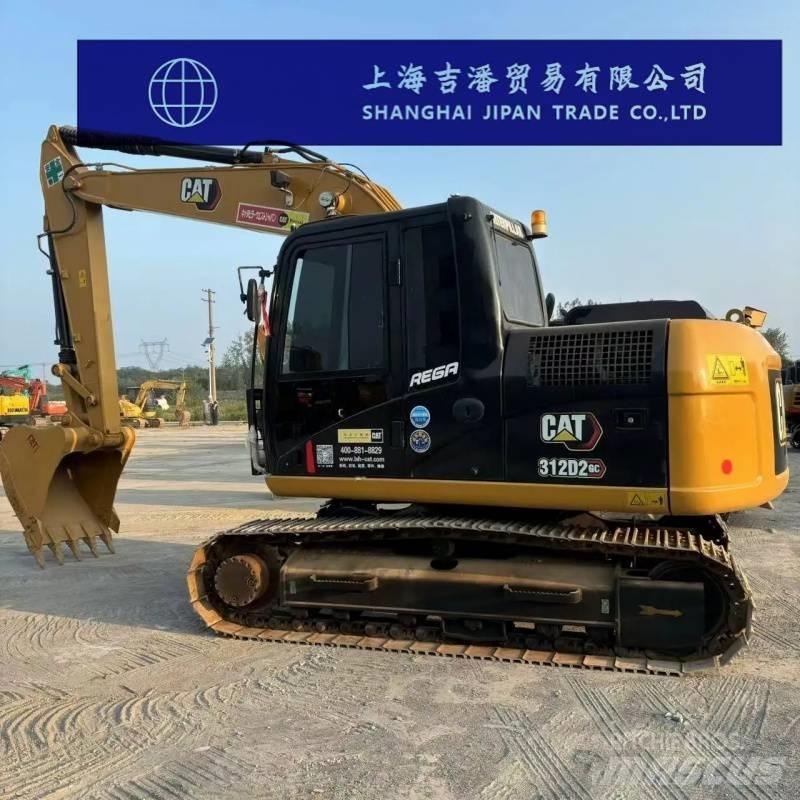

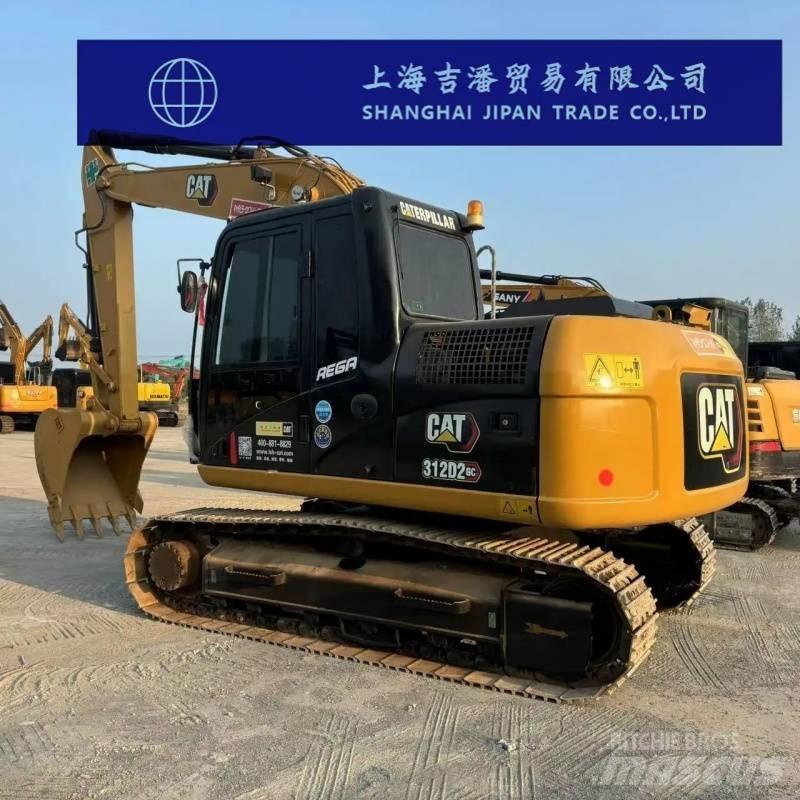

Parameter configuration of Caterpillar 312D2GC excavator
Specification
The working weight of the entire machine (kg) is 12,500
Bucket capacity (m³) : 0.53
Boom length (mm) : 4650
The length of the boom (mm) is 2500
Origin: The United States
Tonnage (tons)12
Power Traditional Power
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Performance
Rotational speed (rpm) : 11.2
Rotary torque (Nm)30.9
Walking speed (km/h)5.1
The ground pressure (Kpa) is 40.4
Bucket digging force (kN)95
The digging force of the boom (kN) is 65
Maximum traction force (kN)114
Power system
Engine model: Caterpillar 3054C
Rated power (kw/rpm)59
Displacement (L) : 4.4
Cylinder diameter × stroke (mm) : 105×127
The cooling method is water cooling
Hydraulic system
The maximum flow rate of the main pump (l/min) is 232
Working hydraulic circuit (Mpa)30.5
Walking hydraulic circuit (Mpa)35
Rotary hydraulic circuit (Mpa)23
Pilot oil circuit (MPa)4.12
The flow rate of the pilot pump (L/min) is 21.9
Boom cylinders - number × cylinder diameter × stroke (mm)2-110×10 15
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-120×1197
Bucket cylinder - number × cylinder diameter × stroke (mm)1-100×939
Oil capacity
Fuel tank (L)250
Hydraulic oil tank (L)91
Hydraulic System (L)104
Engine oil change volume (L)16
Coolant (L)18
Main body size
Total transportation length (mm) : 7610
The total transportation width (mm) is 2490
The total transportation height (mm) is 2830
The total height of the cab (mm) is 2670
The ground clearance of the counterweight (mm) is 900
The total length of the track (mm) is 3490
Track gauge (mm)1990
Minimum ground clearance (mm) : 440
The rear end turning radius (mm) is 2140
Scope of work
The maximum excavation radius of the shutdown face (mm) is 8180
Maximum excavation depth (mm) : 5540
Maximum excavation height (mm) : 8490
Maximum unloading height (mm) : 6100
Maximum vertical excavation depth (mm) : 4910
Maximum effective excavation depth (mm) : 5340
