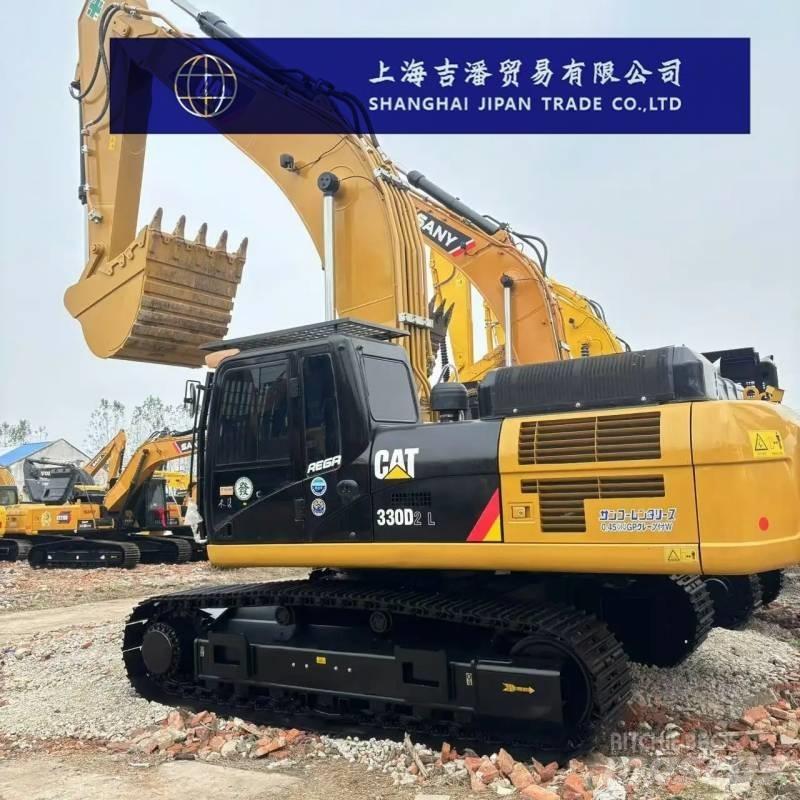

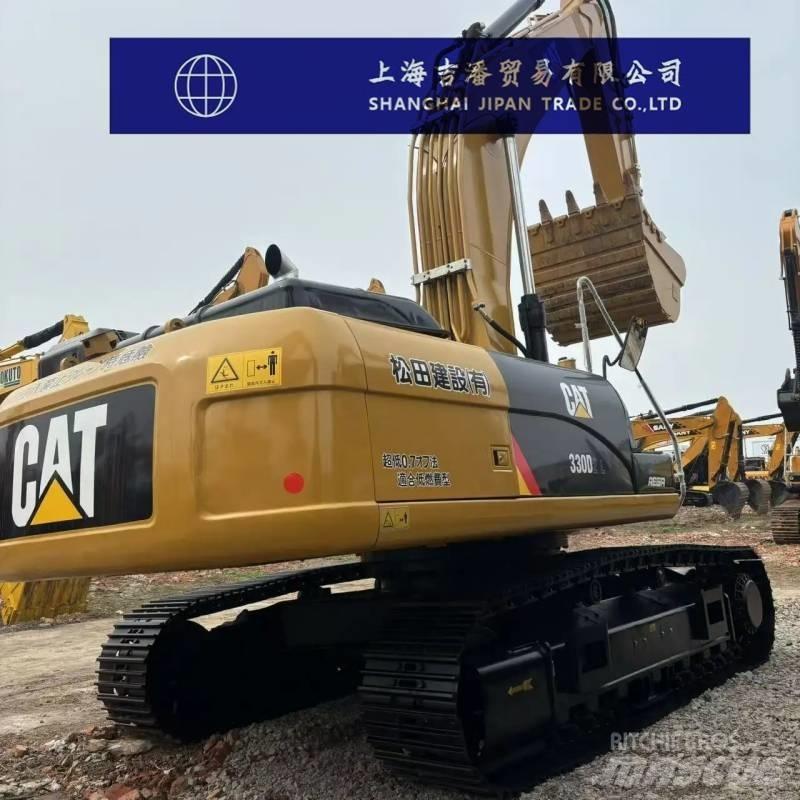

CAT 330 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The overall working weight of the machine (kg) is 33,750 Bucket capacity (m³)1.4-2.0 Boom length (mm)6500 The length of the bucket pole (mm) is 3200 Origin: Japan Tonnage (tons) : 30 Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm)10 Walking speed (km/h)5.3 Climbing ability (%)70/35° Bucket digging force (kN)222 The digging force of the boom (kN) is 146 Power system Engine model: C9ACERT Rated power (kw/rpm) : 200/1900 Displacement (L)8.8 Number of cylinders (units)6 Bore × stroke (mm) : 110×127 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 3.5 The maximum flow rate of the main pump (l/min) is 280 Working hydraulic oil circuit (Mpa)3.5 Walking hydraulic circuit (Mpa)3.5 Rotary hydraulic circuit (Mpa)2.8 Pilot oil circuit (MPa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)150×1440 Bucket rod cylinder - Number × cylinder bore × stroke (mm)170×1738 Bucket cylinder - Number × cylinder diameter × stroke (mm)150×1151 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)620 Hydraulic oil tank (L)175 Hydraulic System (L)410(including the oil tank) Engine oil change volume (L)40 Coolant (L)40 Main body size Total transportation length (mm) : 11,150 Total transportation width (mm) : 3190 Total transportation height (mm)3340 The total height of the cab (mm) is 3140 The ground clearance of counterweights (mm) is 1220 Track grounding length (mm)3610 Total track length (mm) : 4590 Track plate width (mm) : 700 The total width of the track (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm)450 The rear end rotation radius (mm) is 3500 Scope of work The maximum excavation radius (mm) of the shutdown surface is 10920 Maximum excavation depth (mm) : 7390 Maximum excavation height (mm) : 10240 Maximum unloading height (mm) : 7200 The maximum vertical excavation depth (mm) is 5830 The maximum effective excavation depth (mm) is 7230 Width × height (mm) of the bulldozer board without a bulldozer shovel Bulldozer lift or push deep (mm) without a bulldozer
