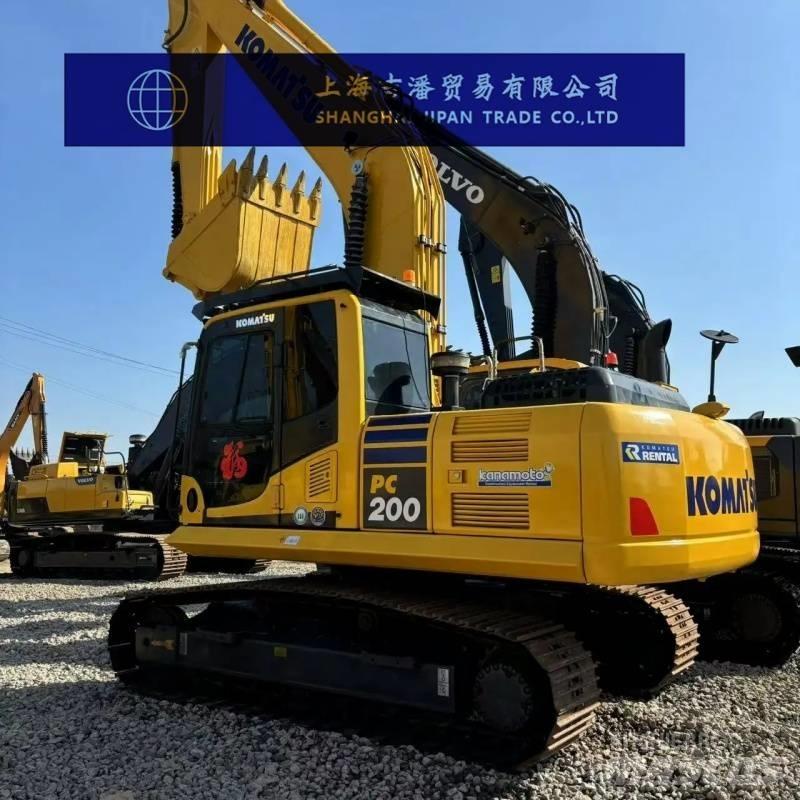

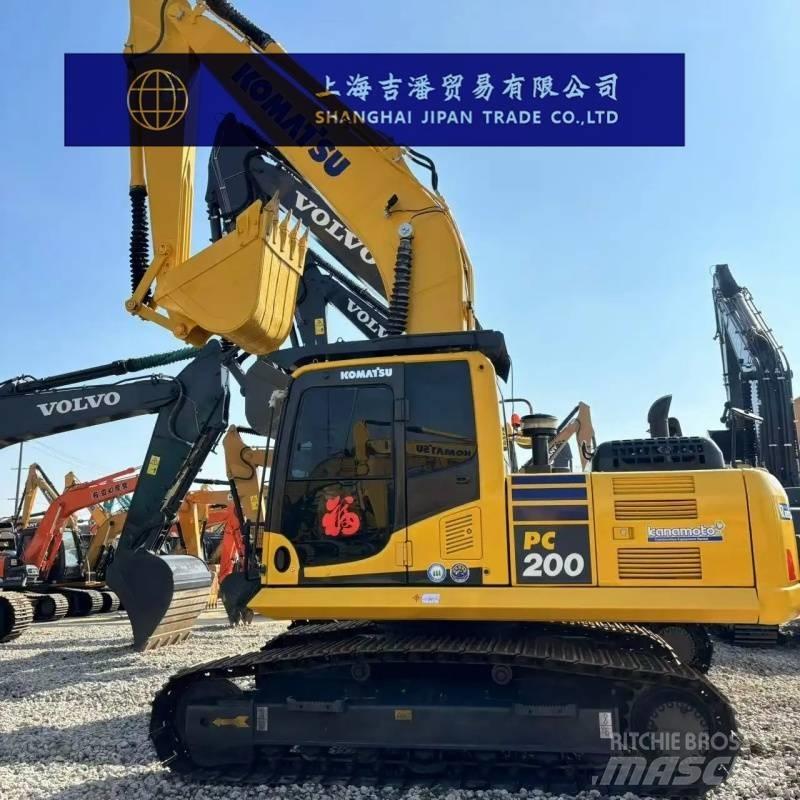

Komatsu PC 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe The overall working weight of the machine (kg) is 19,900 Bucket capacity (m³)0.8 Boom length (mm) : 5700 The length of the bucket pole (mm) is 2925 Origin: Jining, Shandong Province Tonnage (tons)20 Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm) : 12.4 Walking speed (km/h) : 3.0/4.1/5.5 Climbing ability (%)70/35° Grounding specific pressure (Kpa)44.1 Bucket digging force (kN)149 The digging force of the boom (kN) is 108 Power system Engine model: Komatsu SAA6D107E-1 Rated power (kw/rpm)110/2000 Displacement (L) : 6.69 Working mode: 6-cylinder, direct injection, turbocharged, rear-cooled engine; Meet the 2006EPA/Tier3 and EUIIIA standards. Hydraulic system Walking hydraulic motor type: Axial piston motor ×2(with parking brake) Rotary hydraulic motor type axial piston motor ×1(return rotation holding valve) The maximum flow rate of the main pump (l/min) is 439 Walking hydraulic circuit (Mpa)37.3 Rotary hydraulic circuit (Mpa)28.9 Control the hydraulic circuit (Mpa)3.2 pilot oil circuit Boom cylinder - Number × cylinder bore × stroke (mm)120×1334×85 Bucket rod cylinder - Number × cylinder bore × stroke (mm)135×1490×95 Bucket cylinder - Number × cylinder diameter × stroke (mm)115×1120×80 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135 Engine oil change volume (L)23.1 Coolant (L)20.4 Main body size Total transportation length (mm) : 9480 Total transportation width (mm)2800 Total transportation height (mm) : 3040 The total height of the cab (mm) is 3040 Track grounding length (mm) : 3275 Total track length (mm)4070 Track plate width (mm)600 Total track width (mm)2800 Track gauge (mm)2200 The ground clearance of counterweight (mm) is 1085 Minimum ground clearance (mm)440 The rear end rotation radius (mm) is 2710 Scope of work Maximum excavation radius (mm) : 9875 The maximum excavation radius (mm) of the shutdown surface is 9700 Maximum excavation depth (mm) : 6620 Maximum excavation height (mm) : 10,000 Maximum unloading height (mm) : 7110 The maximum vertical excavation depth (mm) is 5980 The maximum effective excavation depth (mm) is 6370 Bulldozer lift or push depth (mm) : No bulldozer
