Putzmeister M42-4

Pris eks. MVA

Images24Videos1

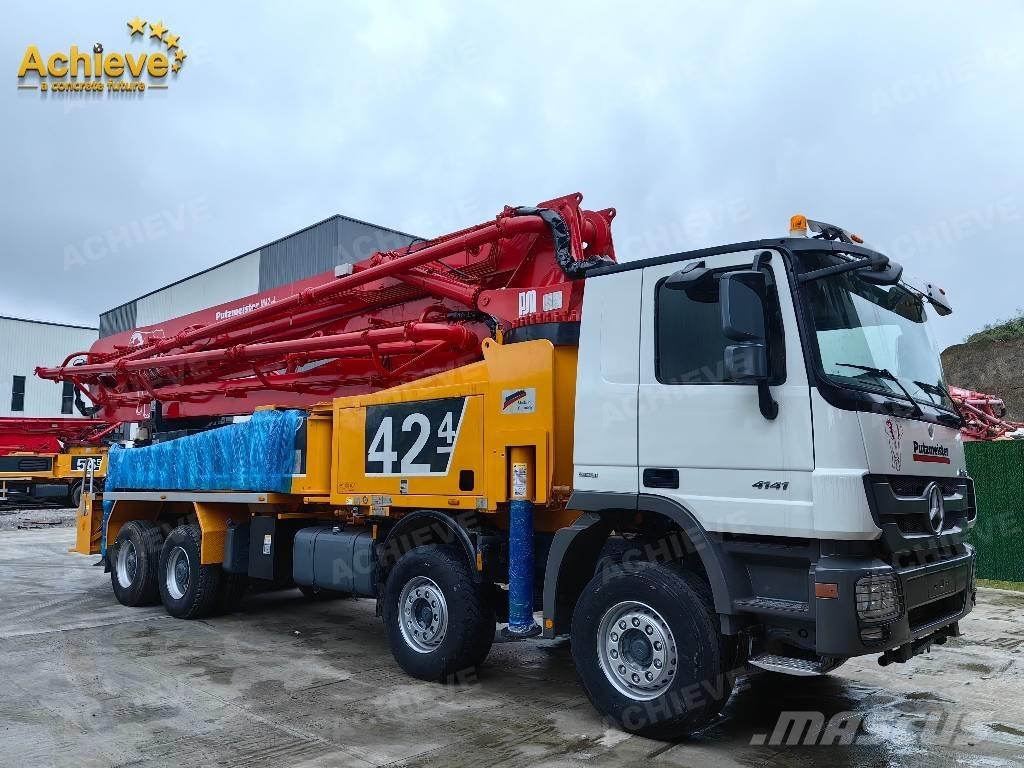

Putzmeister M42-4 Betongpumpe biler
Putzmeister M42-4 Betongpumpe biler
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Betongpumpe biler
Merke / modell
Putzmeister M42-4
Årsmodell
2014
Driftstimer
3 000 t
Kategori
Overhalt,Pusset opp
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
C8CCEE59

PRIS

Velg valuta

DETALJER

Lager nr.
AICPT010
Antall bomseksjoner
5
Sist godkjent (dato):
2024-09-26
Totalvekt
26 000 kg
Lengde på bom
400 cm
Maks horisontal rekkevidde
3 730 cm
Maks vertikal rekkevidde
4 160 cm
Bevegelig
Statisk
Pumpekraft type
Diesel
Pumpekraft
300 kW
Transportmål (LxBxH)
11500 x 2500 x 4200 mm
Euroklasse
Steg V
Motorprodusent
Ergonic3. EU Version
Pumpe type
Stempel
Chassisprodusent
Mercedes Benz
Dekk merke
Mercedes Benz
Produsert i (land)
Kina
Leveringsbetingelser
FOB, CIF
Sertifiseringer
EPA, CE, TÜV
Utstyr
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Beskrivelse
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliVis mer

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
