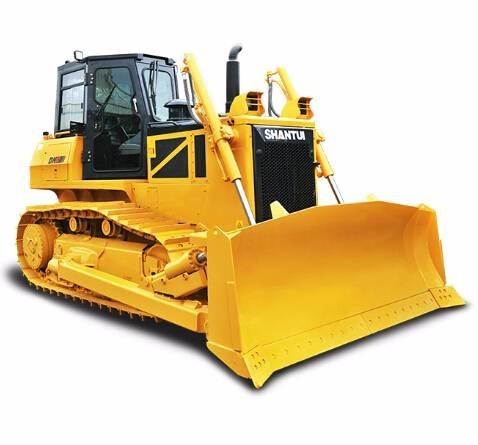

Shantui DH17

Name: Shantui DH17
Brand: Shantui
SKU: 743171FD
Availability: InStock

Pris eks. MVA

Ring for pris

Favoritt

Del

Lagre søk

Skriv ut

INFORMASJON

Gruppe

Dozere Beltegående

Merke / modell

Shantui DH17

Årsmodell

2018

Kategori

Ny/ubrukt

Lagersted

Jining, Shandong, China

Land

Kina

Generell tilstand

Mascus ID

743171FD

DETALJER

Lager nr.

DH17

Sist godkjent (dato):

yes

Full service historikk

Arbeidsbredde

342 cm

Serie/VIN nummer

DH17

Totalvekt

18 900 kg

Skjær type

Semi U-Skjær

Undervogn

Beltetraktor

Førerhustype

Lukket hytte

Euroklasse

Steg II

Motor

Weichai WD10G190E213

Effekt

125 kW (170 hk)

Belte bredde

560 mm

Girkasse

Shantui

Transportmål (LxBxH)

5250 x 3420 x 3080 mm

Orginal farge

yellow

Dekk merke

Shantui

Tilstand Info/Garanti

ISO9001

Resterende fordekk

100

Produsert i (land)

Kina

Utstyrt for

propertynames.pp_equippedfor_2100012

Leveringsbetingelser

FOB, CFR, CIF, EXW

Sertifiseringer

EPA, CE, ANSI

Ektrautstyr

Vinsj

Klimaanlegg

Tilleggshydraulikk

Singel ripper

Vis mer

Beskrivelse

Technical Features ●Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost. ●The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads. ●The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%. ●The ergonomic hexahedral cab features large space and excellent visual field. ●The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ? ●The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture. ●The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB. ●The safety passage system of the whole machine guarantees the driver’s safety. ●With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick. ●The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency. ●The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions. ●The accurate control can realize the bulldozing operations in narrow spaces. ●The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability. ●The optional three-tooth ripper and traction frame are available to meet the diversified operation needs. ●The structural parts inherit the excellent quality of Shantui mature products. ●The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade. ●The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability. ●The static drive system features compact structure, small volume, light weight, and easy maintenances. ●The modular structure eases the disassembling of parts and ensures low maintenance cost. Performance Parameters Length × width × height (mm) (excluding ripper) 5250×3420×3080 Operating weight (t) (excluding ripper) 18.9(including ripper) Engine model WD10G190E213 Net power/rated speed (kW/rpm) 127/2000 Ground pressure(Mpa) 0.064 Blade type Semi-U blade Blade capacity(m3) 4.4 Applicable Working Conditions Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.Vis mer
