Shantui SD10YE

Pris eks. MVA

Ring for pris

Compnay LOGO
Images1

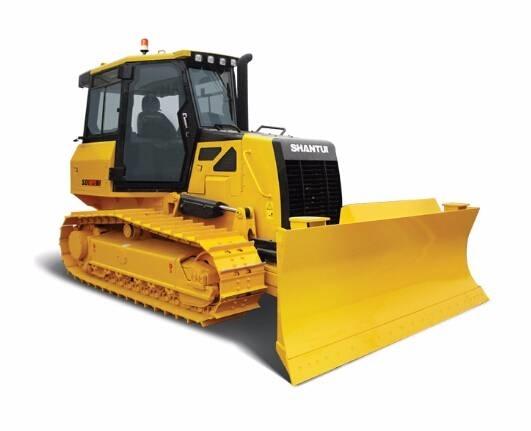

Shantui SD10YE Dozere Beltegående
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Dozere Beltegående
Merke / modell
Shantui SD10YE
Årsmodell
2018
Kategori
Ny/ubrukt
Lagersted
Jining, Shandong, China
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
C5F78DED

DETALJER

Lager nr.
SD10YE
Sist godkjent (dato):
yes
Full service historikk
Ja
Arbeidsbredde
290 cm
Serie/VIN nummer
SD10YE
Totalvekt
9 200 kg
Skjær type
Rett skjær
Undervogn
Beltetraktor
Førerhustype
Lukket hytte
Euroklasse
Steg IIIB
Motor
Cummins QSB4.5
Effekt
74 kW (101 hk)
Belte bredde
460 mm
Girkasse
Shantui
Transportmål (LxBxH)
4400 x 2900 x 2800 mm
Orginal farge
yellow
Dekk merke
Shantui
Tilstand Info/Garanti
ISO9001
Resterende fordekk
100
Produsert i (land)
Kina
Utstyrt for
propertynames.pp_equippedfor_2100012
Leveringsbetingelser
FOB, CFR, CIF, EXW
Sertifiseringer
EPA, CE, ANSI
Ektrautstyr
Vinsj
Klimaanlegg
Tilleggshydraulikk
Singel ripper
Vis mer
Beskrivelse
Technical Features ●The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ●The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ●The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ●High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ●The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ●The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ●The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment , with broad visual field. ●The modular wheel reducer system features high strength, long service life, and easy maintenances. ●The high capacity, high strength, multi-functional, and adjustable power angle blade is suitable for fine or heavy-load operations, including excavating, backfilling,modeling, and leveling, featuring high rigidity and durability and high production efficiency. Performance Parameters Length × width × height (mm) (excluding ripper) 4478×2860×2825 4478×3200×2825 Operating weight(t)(excluding ripper) 9.2 9.5 Engine model QSB4.5 Net power/rated speed (kW/rpm) 80/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 2.38 2.66 Applicable Working Conditions Fine and heavy-load operations (such as digging, backfill, modeling, and leveling) of earthwork materials as well as rescue and lumbering functions.Vis mer

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kina
