Shantui SD13Plus

Pris eks. MVA

Ring for pris

Compnay LOGO
Images2

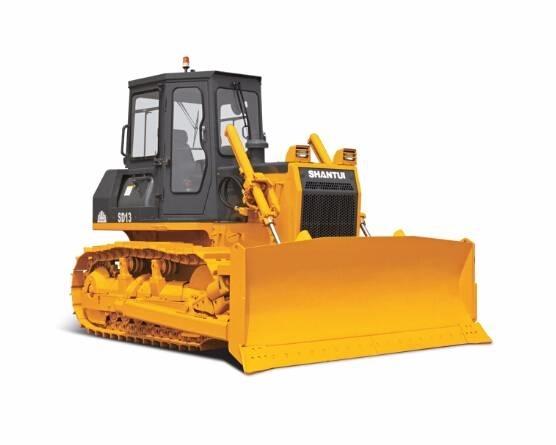

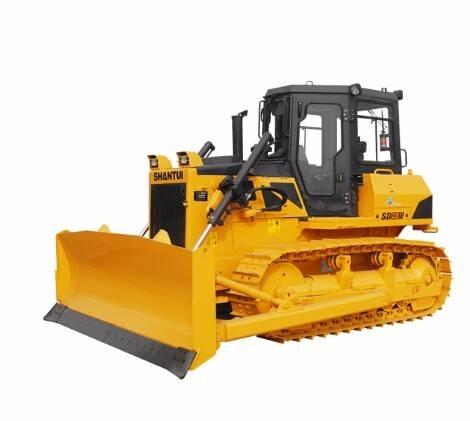

Shantui SD13Plus Dozere Beltegående
Shantui SD13Plus Dozere Beltegående
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Dozere Beltegående
Merke / modell
Shantui SD13Plus
Årsmodell
2018
Kategori
Ny/ubrukt
Lagersted
Jining, Shandong, China
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
51861799

DETALJER

Lager nr.
SD13Plus
Sist godkjent (dato):
0
Full service historikk
Ja
Arbeidsbredde
320 cm
Serie/VIN nummer
SD13Plus
Totalvekt
13 700 kg
Skjær type
Rett skjær
Undervogn
Beltetraktor
Førerhustype
Lukket hytte
Euroklasse
Steg II
Motor
Shangchai SC8D143G2B1
Effekt
94,2 kW (128 hk)
Belte bredde
460 mm
Girkasse
Shantui
Transportmål (LxBxH)
4500 x 3200 x 2500 mm
Orginal farge
yellow
Dekk merke
Shantui
Tilstand Info/Garanti
ISO9001
Resterende fordekk
100
Produsert i (land)
Kina
Utstyrt for
propertynames.pp_equippedfor_2100012
Leveringsbetingelser
FOB, CFR, CIF, EXW
Sertifiseringer
EPA, CE, ANSI
Ektrautstyr
Vinsj
Klimaanlegg
Tilleggshydraulikk
Multi ripper
Vis mer
Beskrivelse
Technical Features ● Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency. ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays. ● The optimized working lamp arrangement improves the lighting performance of vehicle. ● The reversing alarm and the working warning lamp are equipped to ensure higher construction safety. ● The instrument box and the gantry frame are isolated to relieve the transmission of vibration. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The external working valves ease the daily maintenances and realize better maintainability. ● The PPC pilot controls achieve better labor-saving and convenient operations. ● The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ● The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ● The new hexahedron cab features super-large interior space and broader visual field. ● The mounting surface and the sealing surface are separated to achieve better sealing performance. ● The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB. Performance Parameters Length × width × height (mm) (excluding ripper)4492×3185×2490Operating weight(t) (excluding ripper)13.7 Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900 Ground pressure(Mpa)0.063Blade typeStraight tilting blade Angle blade Blade capacity (m3)3.158 for straight tilting blade and 2.33 for angle blade Applicable Working Conditions Earthworks.Vis mer
