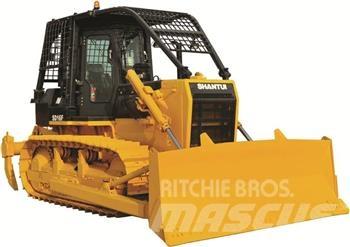

Shantui SD16F

ITEM 　UNIT SD16F L×W×H (Ripper not included) mm 5345×3388×3032 Operating weight (Ripper not included) t 17.5 Engine - Shangchai SC11CB184G2B1/ Weichai WD10G178E25 Rated power kW/rpm 120/1850 Gradeability ° 30 Blade type - Straight tilt blade U blade Angle blade Blade width mm Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 Dozing capacity m3 Straight tilt blade 4.5 U blade 5 Angle blade 4.3 Ma× drop below ground of blade mm 540 Lift height of blade mm 1095 Ripper type - Three-shank ripper Ripping depth of ripper mm 572 Lifting height of ripper mm 592 Number of carriers (each side) - 2 Number of track rollers (each side) - 7 Number of track shoes (each side) - 39 Width of track shoe mm 560 Track gauge mm 1880 Ground length and ground pressure mm/MPa 2635-0.062 Pitch mm 203.2 Forward speed km/h 0–3.29 0–5.82 0–9.63 Reverse speed km/h 0–4.28 0–7.59
