Shantui SD32

Pris eks. MVA

Ring for pris

Compnay LOGO
Images3

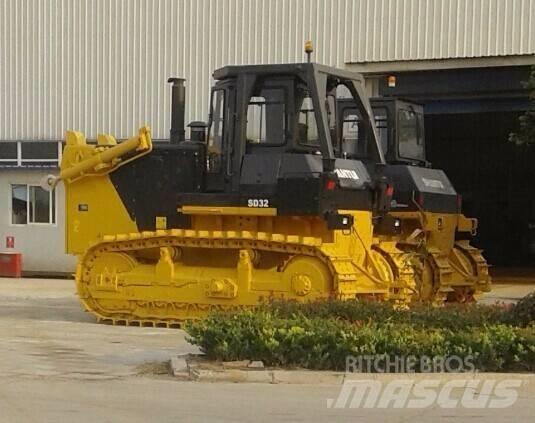

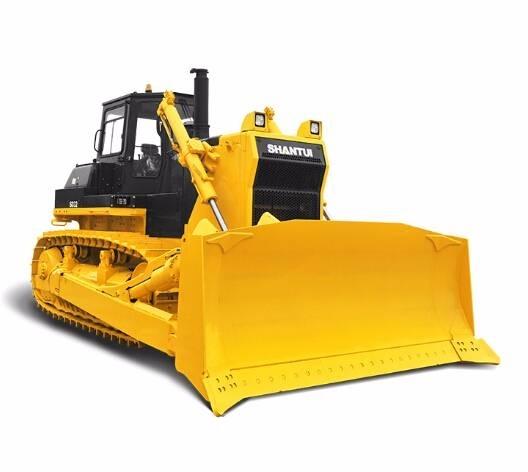

Shantui SD32 Dozere Beltegående
Shantui SD32 Dozere Beltegående
Shantui SD32 Dozere Beltegående
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Dozere Beltegående
Merke / modell
Shantui SD32
Årsmodell
2018
Kategori
Ny/ubrukt,Mulig å leie,Overhalt
Lagersted
Jining, Shandong, China
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
9DD39A99

DETALJER

Lager nr.
SD32
Sist godkjent (dato):
yes
Full service historikk
Ja
Arbeidsbredde
413 cm
Serie/VIN nummer
SD32
Totalvekt
37 200 kg
Skjær type
Rett skjær
Undervogn
Beltetraktor
Førerhustype
Lukket hytte
Euroklasse
Steg II
Motor
Cummins NTA855-C360S10
Effekt
232 kW (315 hk)
Belte bredde
560 mm
Girkasse
Shantui
Motorprodusent
Cummins
Transportmål (LxBxH)
6880 x 4130 x 3730 mm
Orginal farge
yellow
Dekk merke
Shantui
Tilstand Info/Garanti
ISO9001
Resterende fordekk
100
Produsert i (land)
Kina
Utstyrt for
propertynames.pp_equippedfor_2100012
Leveringsbetingelser
FOB, CFR, CIF, EXW
Sertifiseringer
EPA, CE, ANSI
Ektrautstyr
Vinsj
Klimaanlegg
Tilleggshydraulikk
Singel ripper
Vis mer
Beskrivelse
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Vis mer
