Shantui SD32Plus

Pris eks. MVA

Ring for pris

Compnay LOGO
Images1

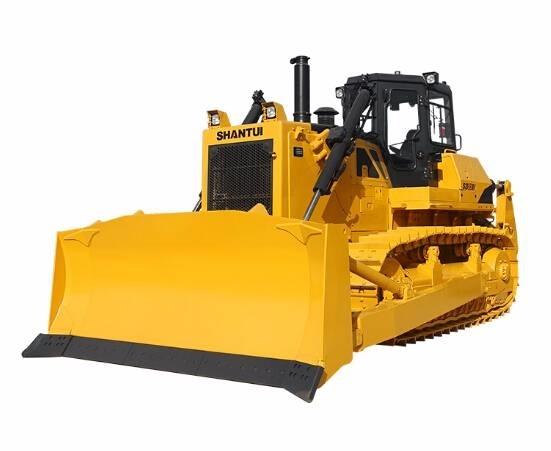

Shantui SD32Plus Dozere Beltegående
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Dozere Beltegående
Merke / modell
Shantui SD32Plus
Årsmodell
2018
Status
Ny/ubrukt
Lagersted
Jining, Shandong, China
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
B9245321

DETALJER

Lager nr.
SD32Plus
Sist godkjent (dato):
yes
Full service historikk
Ja
Arbeidsbredde
413 cm
Serie/VIN nummer
SD32Plus
Totalvekt
37 200 kg
Skjær type
Rett skjær
Undervogn
Beltetraktor
Euroklasse
Steg II
Førerhustype
Lukket hytte
Motor
Cummins NTA855-C360S10
Effekt
235 kW (320 hk)
Belte bredde
610 mm
Girkasse
Shantui
Transportmål (LxBxH)
8560 x 4130 x 3640 mm
Orginal farge
yellow
Dekk merke
Shantui
Tilstand Info/Garanti
ISO9001
Resterende fordekk
100
Produsert i (land)
Kina
Utstyrt for
propertynames.pp_equippedfor_2100012
Leveringsbetingelser
FOB, CFR, CIF, EXW
Sertifiseringer
EPA, CE, ANSI
Ektrautstyr
Vinsj
Klimaanlegg
Tilleggshydraulikk
Multi ripper
Vis mer
Beskrivelse
Technical Features ●Cummins NTA855-C360S10 engine features strong power and high efficiency and energy-saving. ●The high reliability hydraulic torque converter, the power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability and productivity. ●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. ●The integrally injection molded instrument panel features reasonable layout and beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. ●The optimized working lamp arrangement improves the lighting performance of vehicle. ●The safety facilities including reversing alarm and the working warning lamp are equipped. ●The main frame can absorb the high strength impact, vibration, load, and torsion generated during the operations to support the continuous high-strength operations of machine under severe working condition. ●The external working valves ease the daily maintenances and realize better maintainability for the valves. ? ●The PPC pilot controls achieve better labor-saving and convenient operations. ●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ●The low-drive final drive is equipped to provide move powerful drive force and efficient gradeability. ●The balance beam can reduce the impact load transmitted to the chassis system to improve the trafficability of machine on uneven terrains. ●The pilot control system features light and flexible operations. ●The gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver, featuring comfortable and convenient controls. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t) (excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Vis mer

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kina
