Casagrande B175XP
Pris eks. MVA
Ring for pris
6
Favoritt
Del
Lagre søkSkriv ut
INFORMASJON
Gruppe
Fundamenterings rigger
Merke / modell
Casagrande B175XP
Årsmodell
2018
Driftstimer
4 170 t
Lagersted
Middlesbrough, Cleveland
Land
Storbritannia
Generell tilstand
1
2
3
4
5
Mascus ID
D44F3DE1
DETALJER
Lager nr.
PF 40558
Tilstand Info/Garanti
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Produsert i (land)
Colombia
Sertifiseringer
CE
Beskrivelse

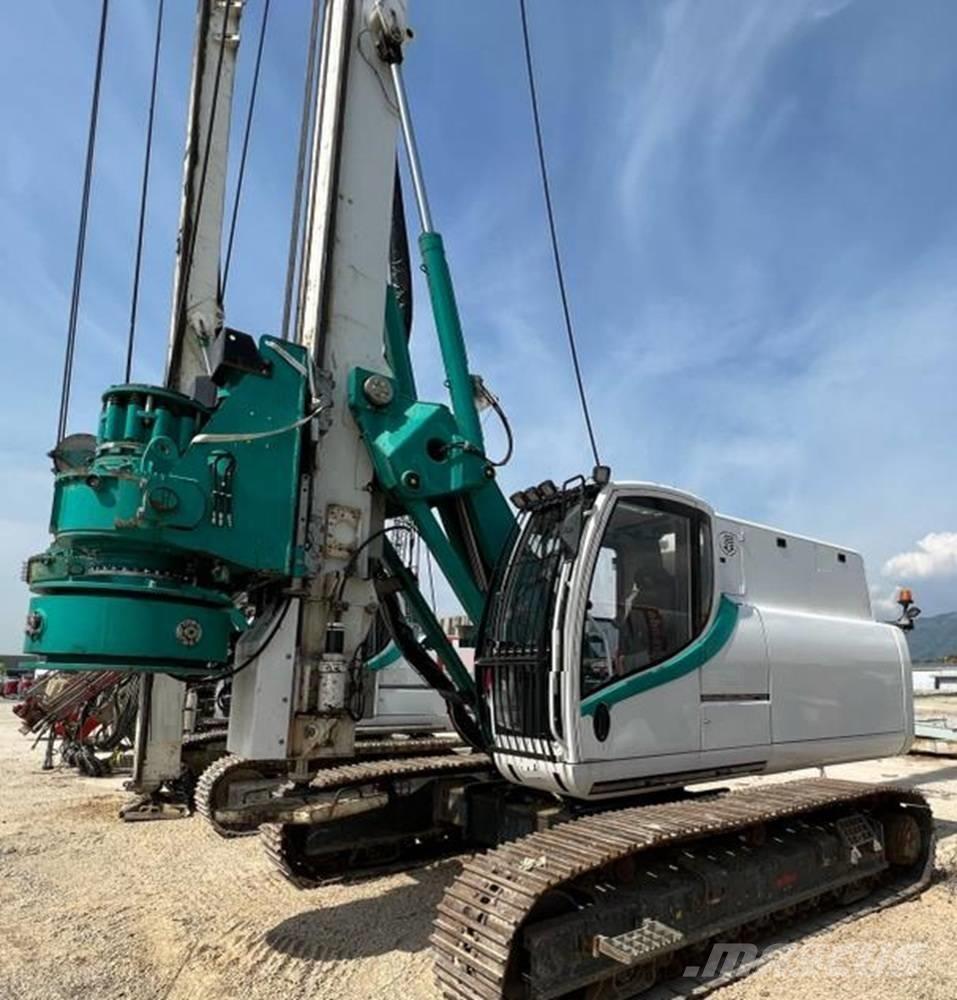

Piling rig with 4170 working hour
Capable of bored piles, CFA & FDP

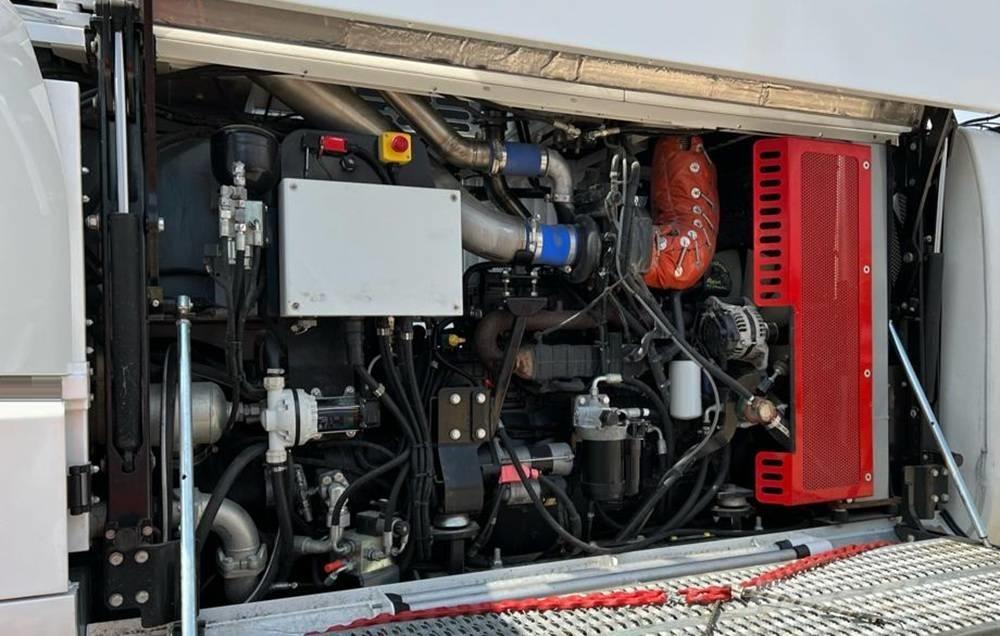

Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F)
Undercarriage 2500-3700mm (closed-open)
Rotary head – H18 (max torque 175kNm with cardan joint)
Winches – 160kN main, 70kN auxiliary
Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm
Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm)
Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
CE Certified
