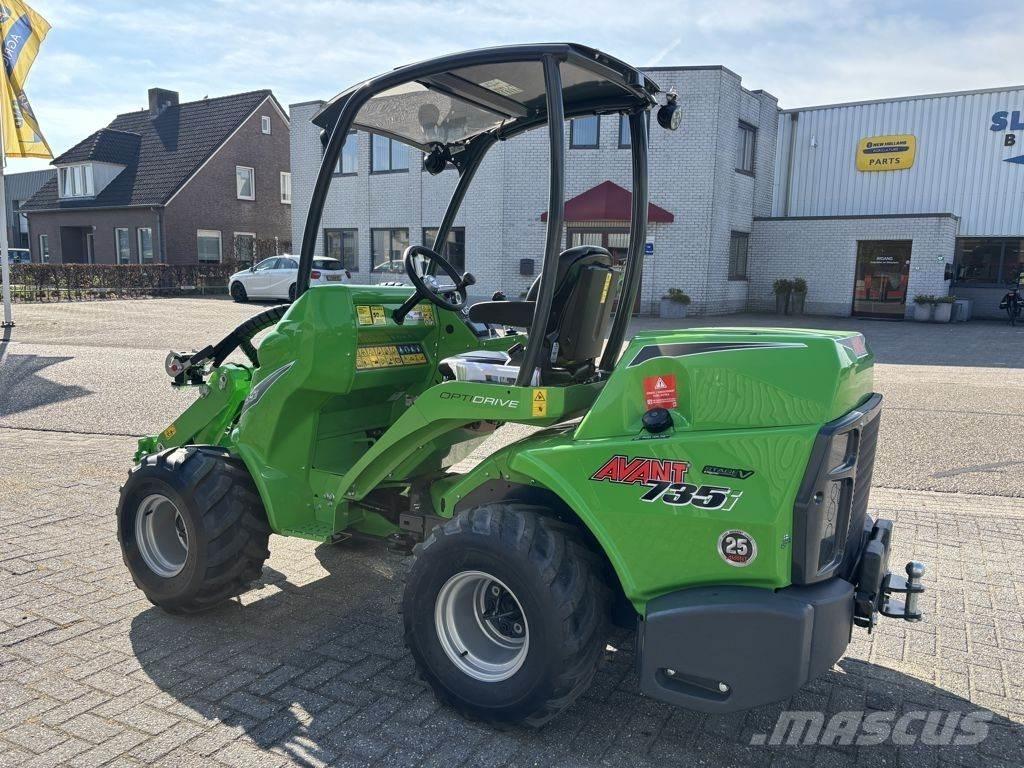

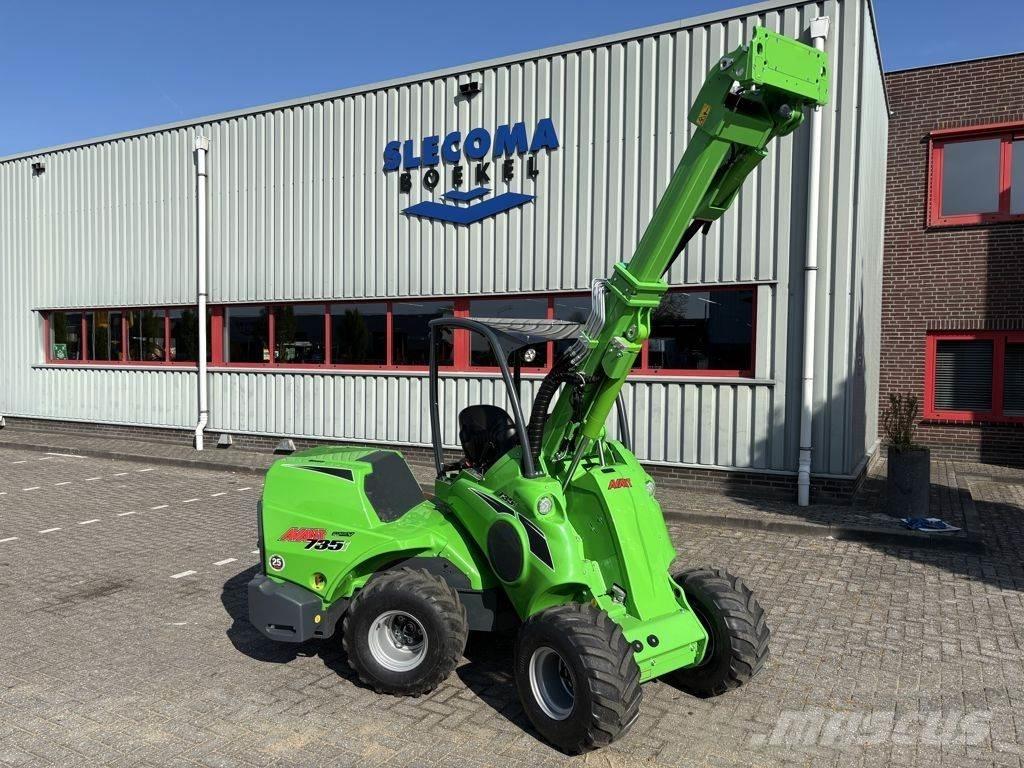

Avant 735i TDL

NL: Hydraulische vergrendeling

Lift height: 300 cm Avant 735 TDL Stage V Year of construction: 2025 Max. Lifting capacity (kg) 1400 Max. Lifting height (cm) 310 Max. Engine power 26 hp diesel Length 3060 mm Width 1290 mm Height 2060 mm Weight 1800 kg Transmission, drive hydrostatic avant opti drive Max. traction 1200 kp Max. driving speed 11 km/h Aux. Hydraulics oil flow / pressure 50 l/min 200 bar Internal/external turning radius 1240 / 2780 mm Lifting height to pivot point 3080 mm Max. Lifting capacity (hydr.) 2100 kg Max. Tipping load* 1400 kg Max. Breakthrough force / 50 cm 1700 kg Make and type of engine kubota v1505 stage v, 4-cyl. Engine power (ece r120) 19 kw (26 hp) Maximum torque 93 nm @ 1700 rpm Self-leveling LED work lights Hydraulic quick-change system Tires 320/60-12
