Rammer 5011 E

Pris eks. MVA

Compnay LOGO
Images2Videos3

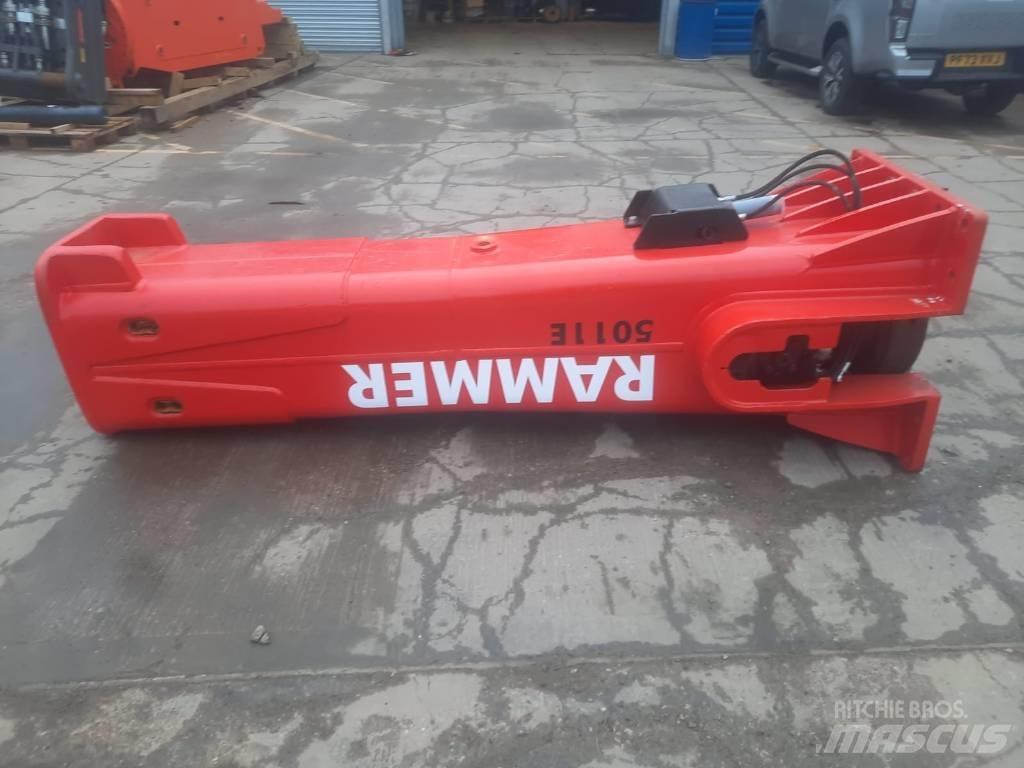

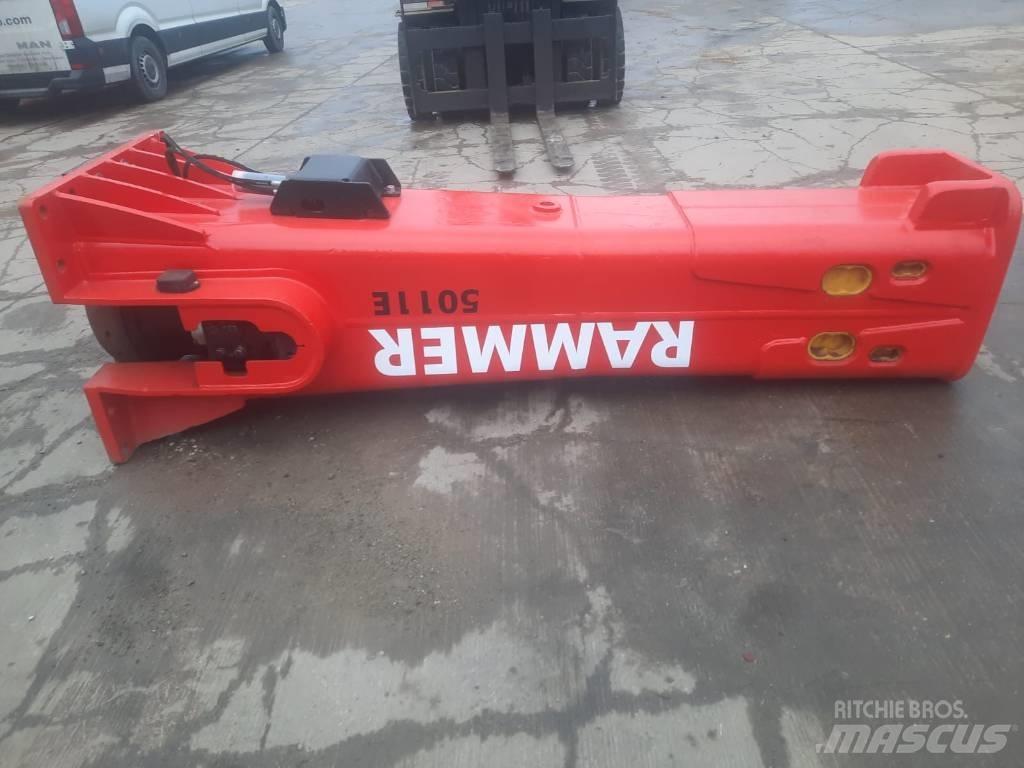

Rammer 5011 E Hydrauliske hammere
Rammer 5011 E Hydrauliske hammere
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Hydrauliske hammere
Merke / modell
Rammer 5011 E
Årsmodell
2019
Kategori
Overhalt
Lagersted
Cheshire
Land
Storbritannia
Mascus ID
9881AC53

PRIS

Velg valuta

DETALJER

Beskrivelse
Fully refurbished and ready to work Complete with Head Bracket and Hoses SPECIFICATION Minimum working weight, flange mounted *1 4750 kg 10470 lb Weight 3900 kg 8600 lb Working length 3329 mm 131.1 in Impact rate, Long stroke 370 - 530 bpm Impact rate, Short stroke 450 - 620 bpm Operating pressure 160 - 170 bar 2320 - 2465 psi Oil flow range 280 - 380 l/min 74.0 - 100.4 gal/min Pressure relief setting *2 220 bar 3190 psi Pressure relief max 230 bar 3335 psi Back pressure max 10 bar 145 psi Input power 108 kW 145 hp Tool diameter 190 mm 7.48 in Pressure line connection (IN) SAE 6000 psi 1 1/2" Return line connection (OUT) SAE 6000 psi 1 1/2" Pressure line size, min. inner diameter 32 mm 1.26 in Return line size, min. inner diameter 32 mm 1.26 in Grease connection BSPP-internal 3/8" Air connection (A) BSPP-internal 3/8" Optimum oil temperature 40 - 60 °C 104 - 140 °F Allowed oil temperature range -20 - 80 °C -4 - 176 °F Optimum oil viscosity at operating temperature 30 - 60 cSt Allowed viscosity range 20 - 1000 cSt Carrier weight, optimum 45 - 69 t 99200 - 152100 lb Carrier weight, range *3 43 - 80 t 94800 - 176400 lb Noise level, measured (2000/14/EC) 122 dB(A) Noise level, guaranteed (2000/14/EC) 126 dB(A)Vis mer

Blue Machinery ( Central )

New Cheshire Business Park, CW9 6GG Northwich Cheshire Storbritannia
