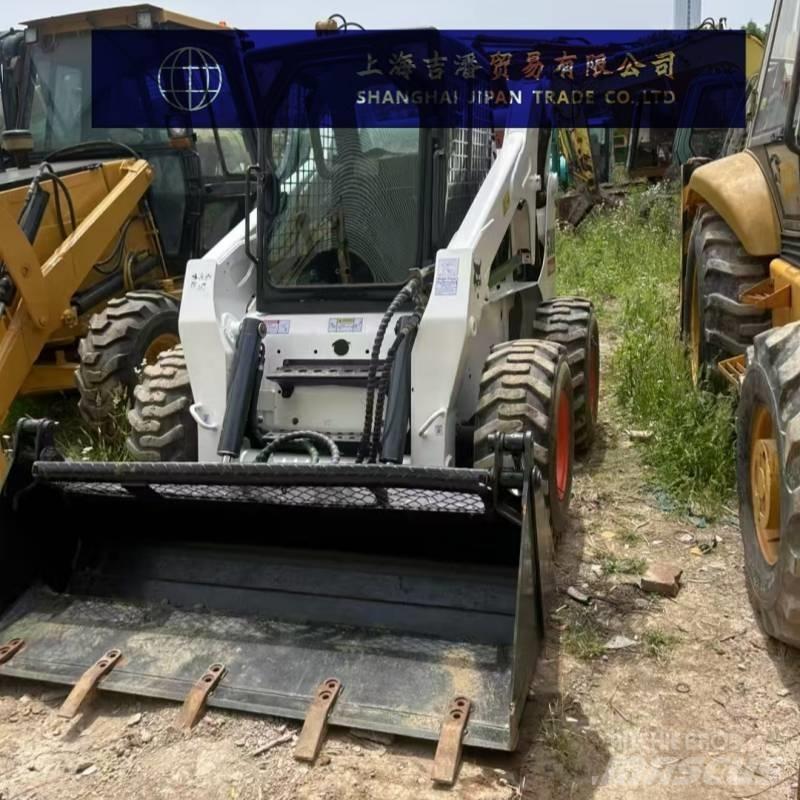

Bobcat S 300
Pris eks. MVA
Skriv ut
INFORMASJON
Gruppe
Kompaktlastere
Merke / modell
Bobcat S 300
Årsmodell
2023
Driftstimer
800 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
502D4AB5
PRIS
Velg valuta
DETALJER
Lager nr.
1
Drivstoff
Diesel
Serie/VIN nummer
1
Sist godkjent (dato):
2025-06-27
Tilstand understell
Good Condition
Antall tidligere eiere
1
Totalvekt
3 750 kg
Maks løftekapasitet
2 772 kg
Reg. nr.
1
Karosseritype
Fastspent ramme
Førerhustype
Lukket hytte
Euroklasse
Steg V
Motor
Original
Volum skuff
1 m3
Effekt
60 kW (81,6 hk)
Motorprodusent
Original
Topphastighet
19,1 km/h
Ytelse hydraulikk
78 l/min
Transportmål (LxBxH)
3630 x 2032 x 2055 mm
Orginal farge
Original
Understell
Hjulvogn
Tilstand Info/Garanti
1 Year
Dekk merke
Original
Resterende fordekk
98
Resterende Bakdekk
2
Dimensjon Bakdekk
Original
Dimensjon Fordekk
Original
Produsert i (land)
USA
Leveringsbetingelser
FCA, FOB, CIF, EXW
Sertifiseringer
EPA, CE
Utstyr
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Ektrautstyr
Beskrivelse
Basic performance parameters
Rated loading capacity: 1386kg
Overturning load: 2772kg
Overall weight: 3750kg (standard configuration) /3770kg (high flow configuration)
Lifting mechanism form: Vertical lifting
Engine parameters

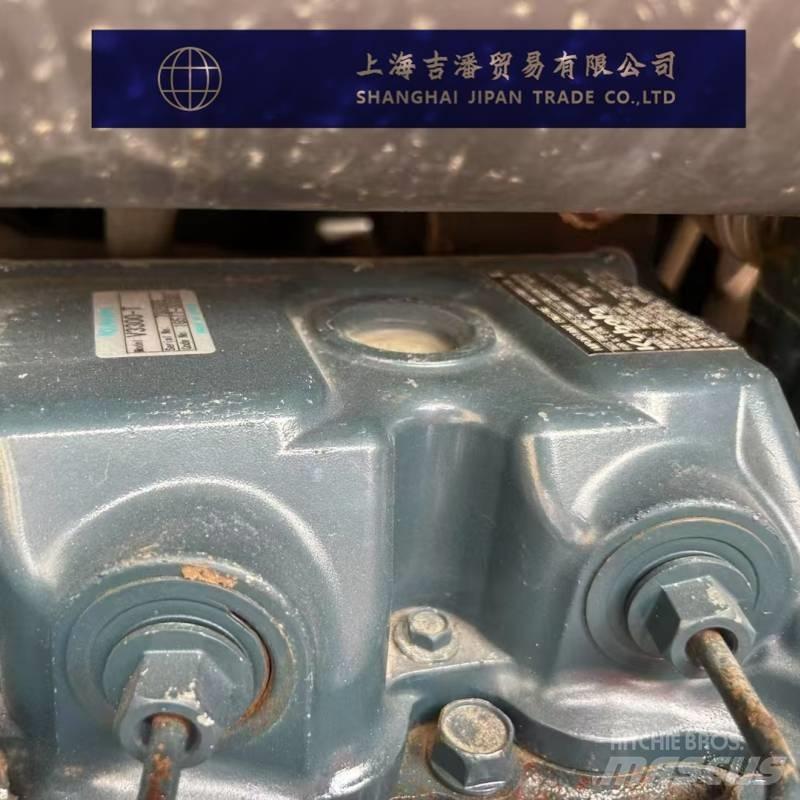

Engine model: Kubota V3800-DI-TE3
Engine type: Turbocharged, diesel direct injection
Rated power: 60kW (81HP)
Maximum torque: 295N·m/1600rpm
Displacement: 3.7L
Number of cylinders: 4
Through performance parameters
Maximum driving speed: 11.1km/h (single speed) /19.1km/h (dual speed optional)
Tire size: 12×16.5
Forward turning radius (with bucket) : 2139mm
Departure Angle: 26°
Hydraulic system parameters
System safety pressure: 228bar
System rated flow rate: 78.4L/min (standard configuration) /140L/min (high flow configuration, optional)
Oil capacity parameters
Fuel tank: 87.1L
Engine coolant: 16L
Crankcase: 13L (oil change volume)
Operation scope parameters
Maximum unloading height: 2586mm
Unloading distance (at the maximum height) : 864mm
The maximum height of the bucket hinge pin is 3272mm
The unloading Angle at the maximum unloading height: 41.9°
The retraction Angle of the bucket at its highest point: 96.1°
The retraction Angle of the bucket on the ground: 30°
Whole machine specification parameters
Total length (without attachments) : 2934mm
Total length (with bucket) : 3630mm
Full width (tire edge) : 1819mm
Full width (edge of the bucket) : 2032mm
Total height (up to the top of the cab) : 2055mm
Wheelbase: 1227mm
Minimum ground clearance: 213mm
