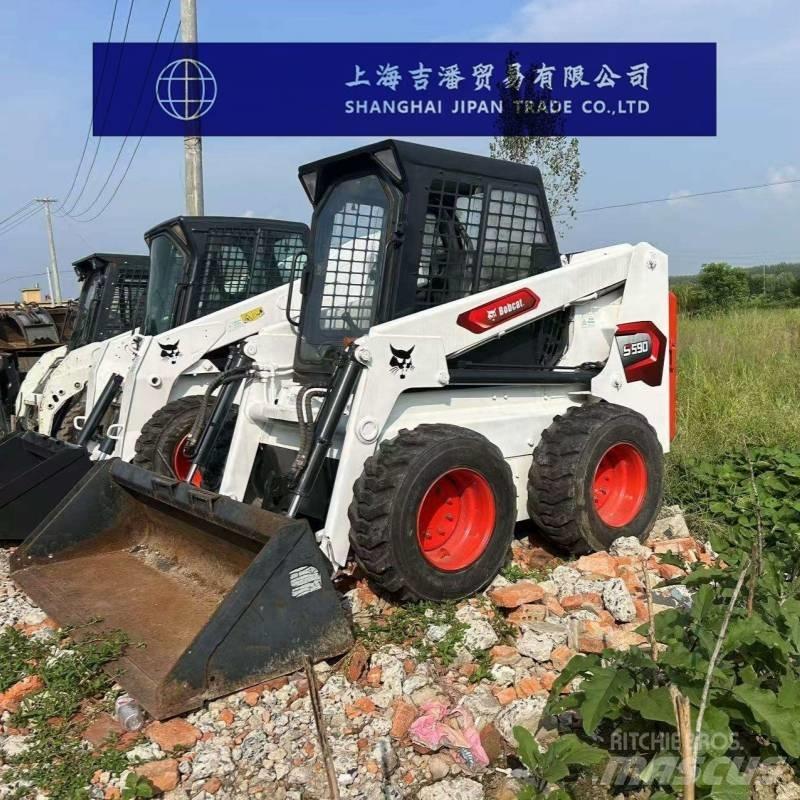

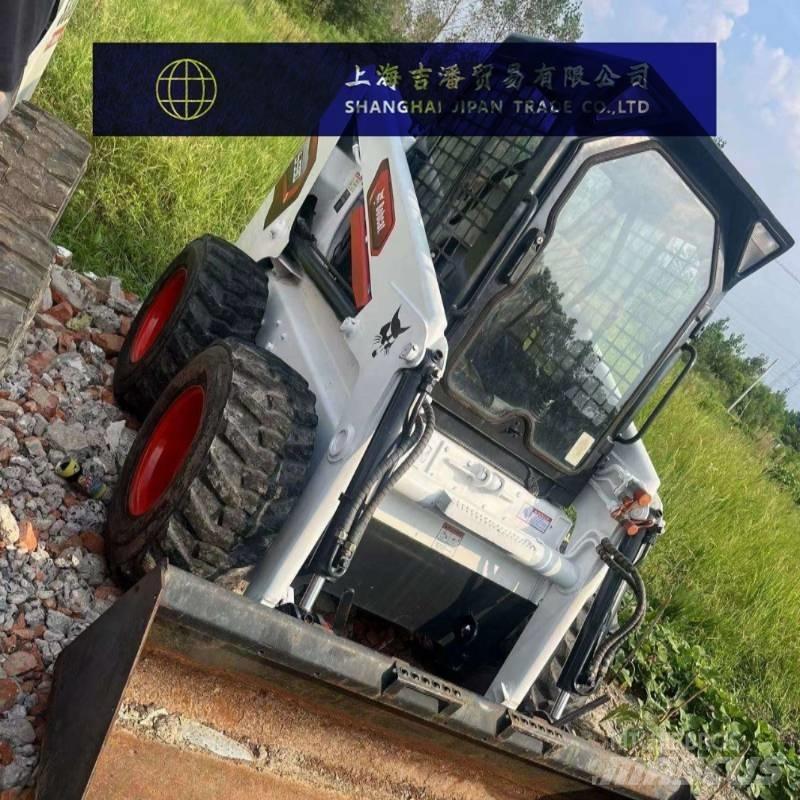

Bobcat S 590
Pris eks. MVA
Skriv ut
INFORMASJON
Gruppe
Kompaktlastere
Merke / modell
Bobcat S 590
Årsmodell
2022
Driftstimer
600 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
EFB0C720
PRIS
Velg valuta
DETALJER
Lager nr.
1
Drivstoff
Diesel
Serie/VIN nummer
1
Sist godkjent (dato):
2025-06-30
Tilstand understell
Good Condition
Antall tidligere eiere
1
Totalvekt
3 069 kg
Maks løftekapasitet
953 kg
Reg. nr.
1
Karosseritype
Fastspent ramme
Førerhustype
Lukket hytte
Euroklasse
Steg V
Motor
Original

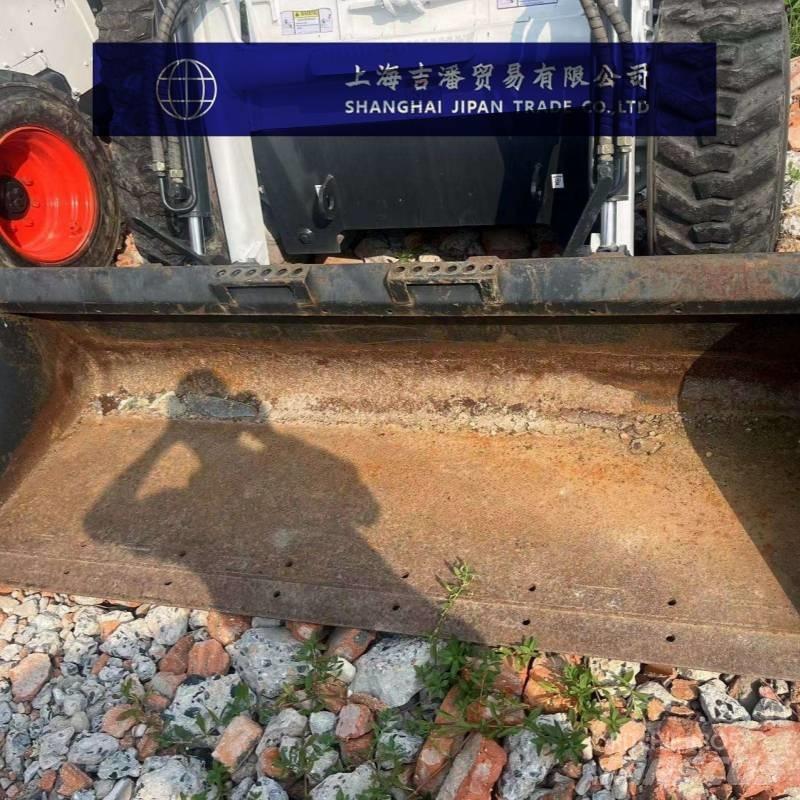

Volum skuff
0,50 m3
Effekt
50,7 kW (68,9 hk)
Motorprodusent
Original
Topphastighet
18,4 km/h
Ytelse hydraulikk
64 l/min
Transportmål (LxBxH)
3378 x 1727 x 1972 mm
Orginal farge
Original
Understell
Hjulvogn
Tilstand Info/Garanti
1 Year
Dekk merke
Original
Resterende fordekk
98
Resterende Bakdekk
2
Dimensjon Bakdekk
Original
Dimensjon Fordekk
Original
Produsert i (land)
USA
Leveringsbetingelser
FCA, FOB, CIF, EXW
Sertifiseringer
EPA, CE
Utstyr
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Ektrautstyr
Beskrivelse
Basic performance parameters
Rated loading capacity: 953kg
Overall weight: 3,069 kg
Bucket lifting force: 21.28kN
Boom lifting force: 20.67kN
Walking mode: Tire type
Tonnage range: 0.8-1 ton
Engine parameters
Engine model: Hyundai Doosan/D24 (National IV Emission Standard)
Type: Water-cooled, turbocharged diesel engine
Rated power: 50.7kW
Maximum torque: 252N·m
Total displacement: 2.4L
Parameters of the hydraulic system
Flow rate (at rated speed) : 64.7L/min
High-flow hydraulic volume: 101.1L/min
Rated working pressure: 23.8-24.5MPa
Parameters of the transmission system
Maximum driving speed (forward/backward) : 11.2/18.4km/h (single speed/dual speed)
Oil quantity parameter
Fuel tank capacity: 93.7 liters
Overall machine size parameters
The total length of the machine (including the bucket) is 3378mm
The total length of the machine (without accessories) is 2657mm
Overall width of the machine (tire edge) : 1643mm
Overall width of the machine (edge of the bucket) : 1727mm
Overall height of the machine: 1972mm
Wheelbase: 1082mm
Track: 1374mm
Minimum ground clearance: 228mm
Operation scope parameters
Maximum unloading height: 2319mm
Unloading distance (at maximum height) : 818mm
The maximum height of the bucket hinge pin is 3023mm
Forward turning radius (with bucket) : 2032mm
Departure Angle: 24.2°
The tipping Angle of the bucket on the ground: 30°
Unloading Angle at the maximum unloading height: 42°
The maximum turning Angle of the bucket: 97°
