INFORMASJON

Gruppe
Kompaktlastere
Merke / modell

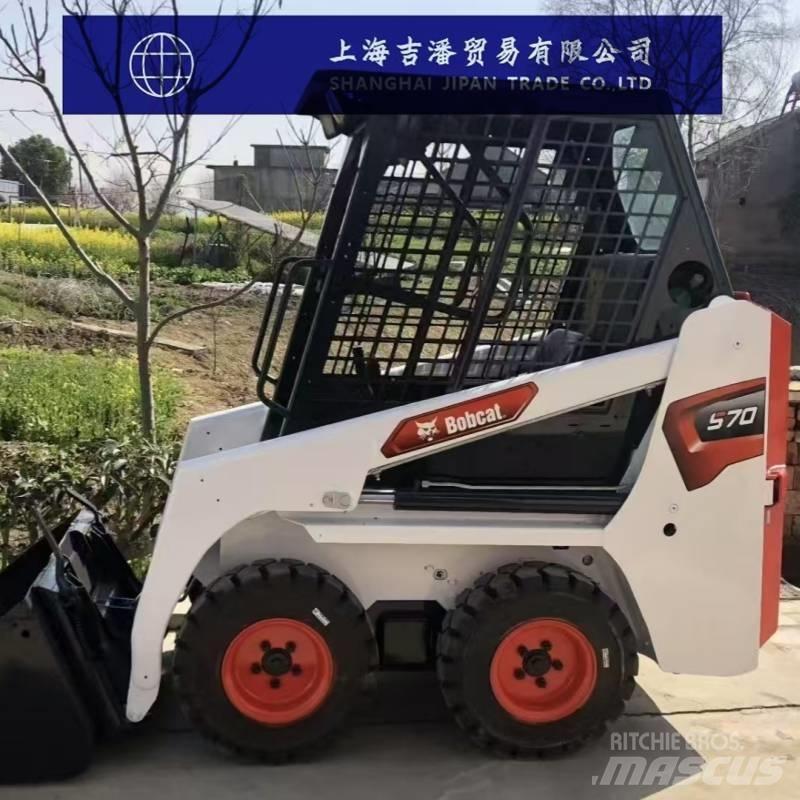

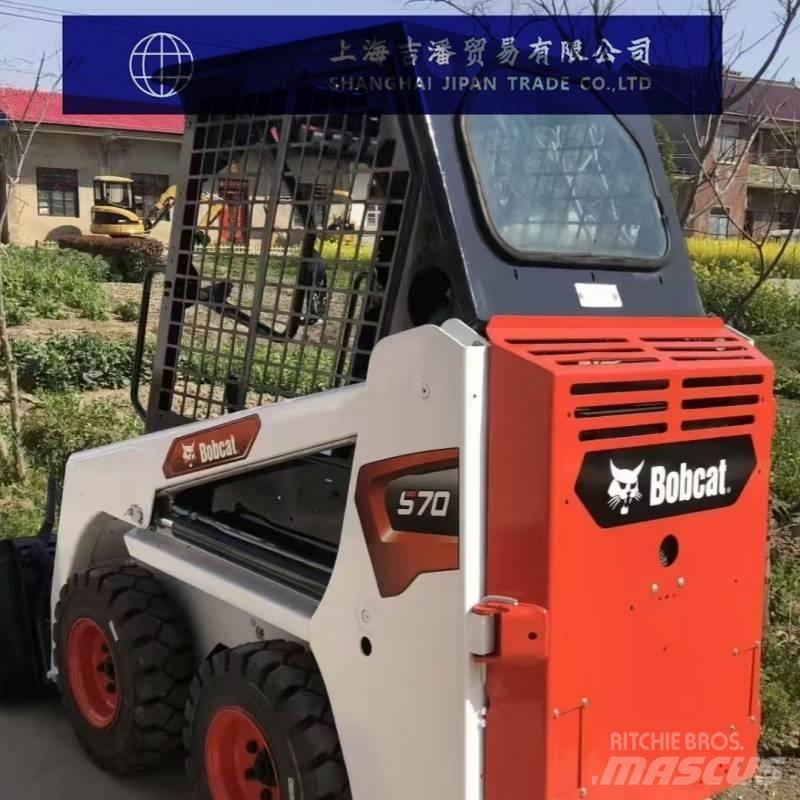

Bobcat S 70
Årsmodell
2023
Driftstimer
550 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
CD627494

PRIS

Velg valuta

DETALJER

Lager nr.
1
Drivstoff
Diesel
Serie/VIN nummer
1
Sist godkjent (dato):
2025-06-27
Tilstand understell
Good Condition
Antall tidligere eiere
1
Totalvekt
1 268 kg
Maks løftekapasitet
686 kg
Reg. nr.
1
Karosseritype
Fastspent ramme
Førerhustype
Lukket hytte
Euroklasse
Steg V
Motor
Original
Volum skuff
0,10 m3
Effekt
16,8 kW (22,8 hk)
Motorprodusent
Original
Topphastighet
9,80 km/h
Ytelse hydraulikk
37 l/min
Transportmål (LxBxH)
2553 x 914 x 1814 mm
Orginal farge
Original
Understell
Hjulvogn
Tilstand Info/Garanti
1 Year
Dekk merke
Original
Resterende fordekk
98
Resterende Bakdekk
2
Dimensjon Bakdekk
Original
Dimensjon Fordekk
Original
Produsert i (land)
USA
Leveringsbetingelser
FCA, FOB, CIF, EXW
Sertifiseringer
EPA, CE
Utstyr
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Ektrautstyr
Klimaanlegg
Laste sensor
Ryggevarsler
Joystick
Beskrivelse
Basic performance parameters Rated loading capacity: 343kg Overturning load: 686kg The total weight of the machine is 1268kg Lifting mechanism form: Radial lifting Rated loading bucket capacity: Not mentioned Engine parameters Engine model: Kubota KUbota D1005-E3B-BC-3 Rated power: 16.8kw/3000rpm Maximum torque: 62.8N.m/2200rpm Displacement: 1.001L Number of cylinders: 3 Emission standard: Not mentioned Through performance parameters Drive motor form: Not mentioned Maximum torque output by the drive motor: Not mentioned Maximum driving speed: 9.8km/h Tire size: 23×5.70-12 Front turning radius (with bucket) : 1557mm Departure Angle: 25° Hydraulic system parameters Main pump type: Not mentioned System safety pressure: 207bar System rated flow rate: 37L/min Ascension time: Not mentioned Unloading time: Not mentioned Release time: Not mentioned Three items and: Not mentioned Oil capacity parameters Fuel tank: 24.6 liters Hydraulic oil tank: Not mentioned Hydraulic system: Not mentioned Engine coolant: Not mentioned Crankcase: Not mentioned Sprocket oil tank: Not mentioned Operation scope parameters Maximum working height: Not mentioned Maximum unloading height: 1891mm Unloading distance (at the maximum height) : 469mm The maximum height of the bucket hinge pin is 2399mm The unloading Angle at the maximum unloading height: 34° The retraction Angle of the bucket at its highest point: 97° The retraction Angle of the bucket on the ground: 22° Whole machine specification parameters Total length (without attachments) : 1917mm Total length (with bucket) : 2553mm Full width (tire edge) : 901mm Full width (edge of the bucket) : 914mm Total height (up to the top of the cab) : 1814mm Wheelbase: 722mm Track: 752mm Minimum ground clearance: 140mm
