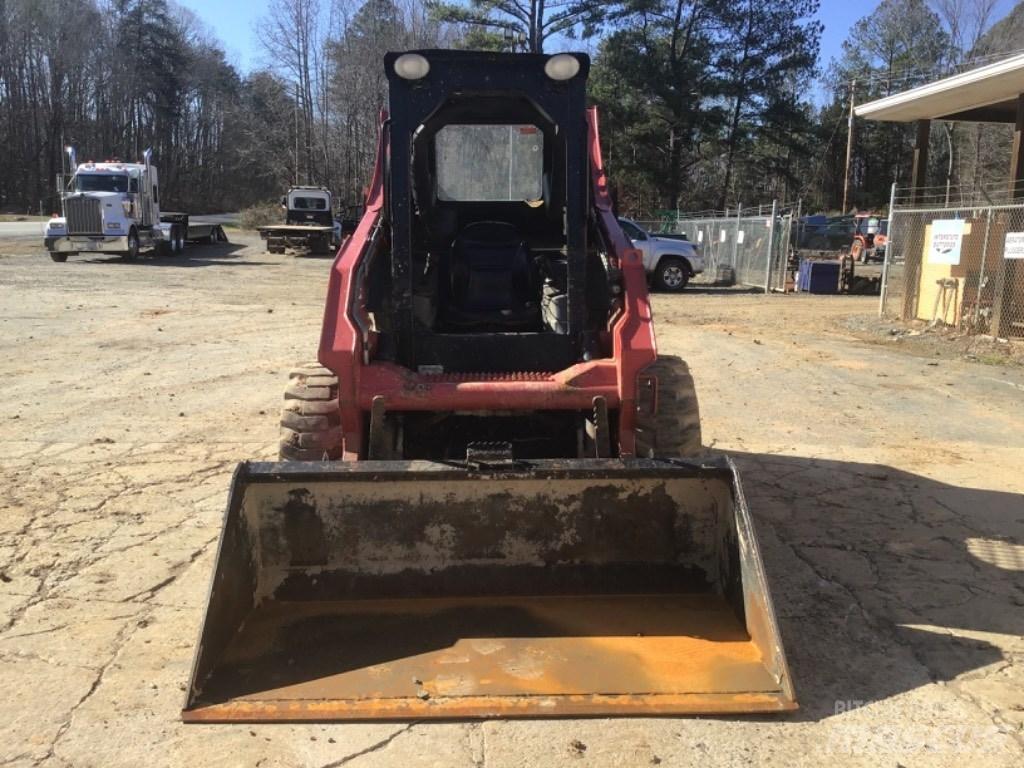

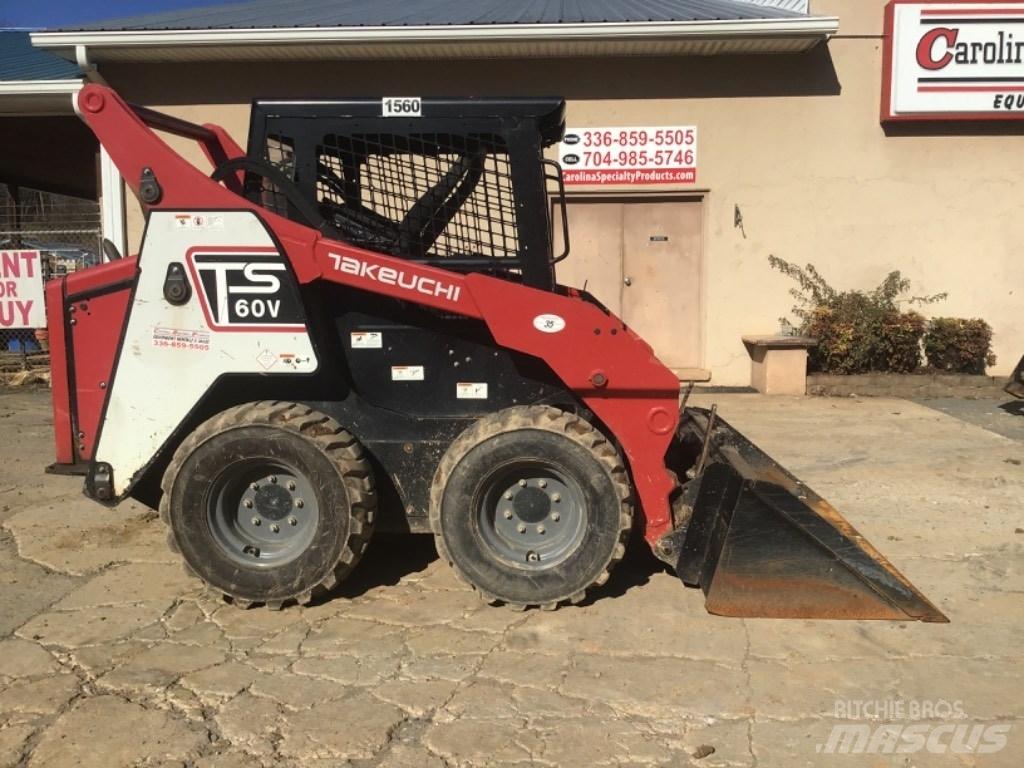

Takeuchi TS60V

Pris eks. MVA

Compnay LOGO
Images6
Takeuchi TS60V Kompaktlastere
Takeuchi TS60V Kompaktlastere
Takeuchi TS60V Kompaktlastere
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Kompaktlastere
Merke / modell
Takeuchi TS60V
Årsmodell
2013

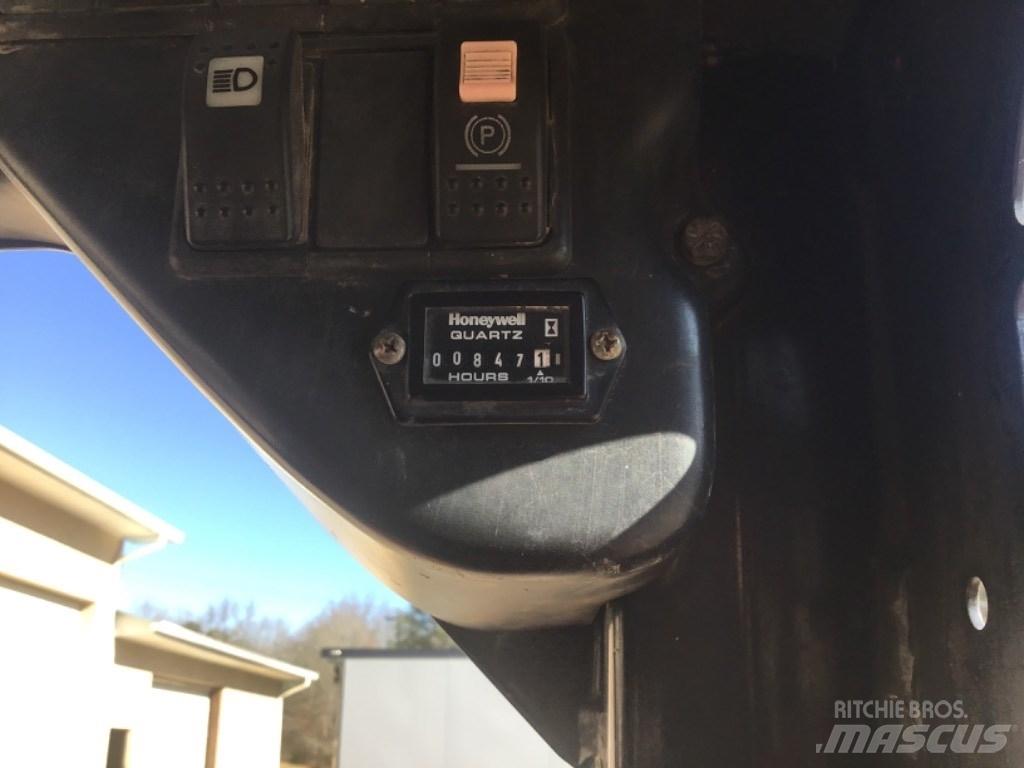

Driftstimer
862 t
Lagersted
DENTON
Land
USA
Generell tilstand
1
2
3
4
5
Mascus ID
3D8C1116

PRIS

Velg valuta

DETALJER

Lager nr.
10
Serie/VIN nummer
T3V06000251
Totalvekt
3 169 kg
Orginal farge
Red
Tilstand Info/Garanti
In good working condition
Beskrivelse
OPERATING PERFORMANCE Loader Type Operating Weight - Canopy Tipping Load Rated Operating Capacity, SAE J818* Bucket Breakout Force Lift Arm Breakout Force Traction Force Vertical 6,986 lbs (3,169 kg) 4,000 lbs (1,814 kg) 2,000 lbs (907 kg) 4,130 lbs (1,873 kg) 3,675 lbs (1,667 kg) 8,453 lbs (3,834 kg) *Operating capacity of skid steer loaders is rated according to SAE J818 at no more than 50% of the tipping load. ENGINE Make Model Cylinders Displacement Horsepower Rated Engine Speed Maximum Torque Engine Lubrication Cooling System Fuel Tank Capacity Electrical System Perkins 404D-22T, Turbocharged 4 135 cu in (2.2 L) 60 hp (44.7 kW) 2,800 rpm 140 ft-lb (190 Nm) 11.2 qts (10.6 L) 14 qts (13.2 L) 25 gal (95 L) 12 volts 65 amps WORKING DIMENSIONS A. Maximum Lift Height to Bucket Pin B. Dump Height Fully Raised C. Dump Reach Fully Raised D. Maximum Bucket Rollback at Ground E. Maximum Dump Angle Fully Raised DRIVE TRAIN AND FRAME Traction Drive Type Chain Case Chain Size Wheel Size Width Over Tires Maximum Travel Speed: Single Speed Optional Two-Speed HYDRAULIC Hydraulic Reservoir Capacity Auxiliary Flow - Primary Circuit Hydraulic System Pressure Hydrostatic Bow Tie Drive System 80 ANSI Chain 10 x 16.5 66.5 in (1,689 mm) 8.2 mph (13.2 km hr) 11.7 mph (18.8 km hr) 8.0 gal (30.2 L) 17.1 gal min (65 L min) 3,335 psi (22.9 MPa) 9 ft 8 in (2,997 mm) 7 ft 2.3 in (2,207 mm) 2 ft 5 in (762 mm) 26.7° 48.3°Vis mer

Carolina Specialty Products

1816 Badin Road 28001 Albenarle North Carolina USA
