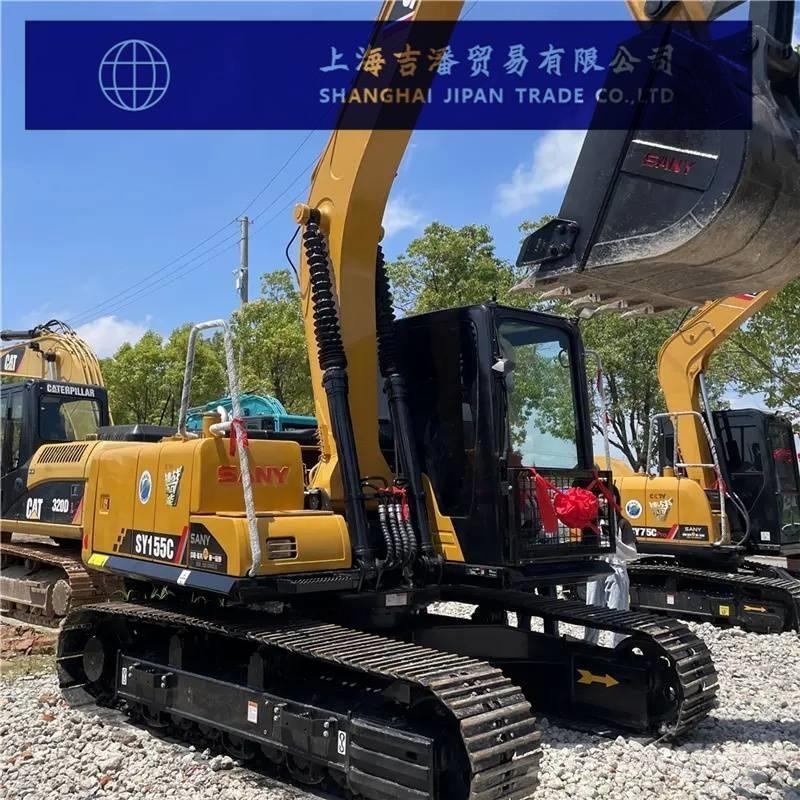

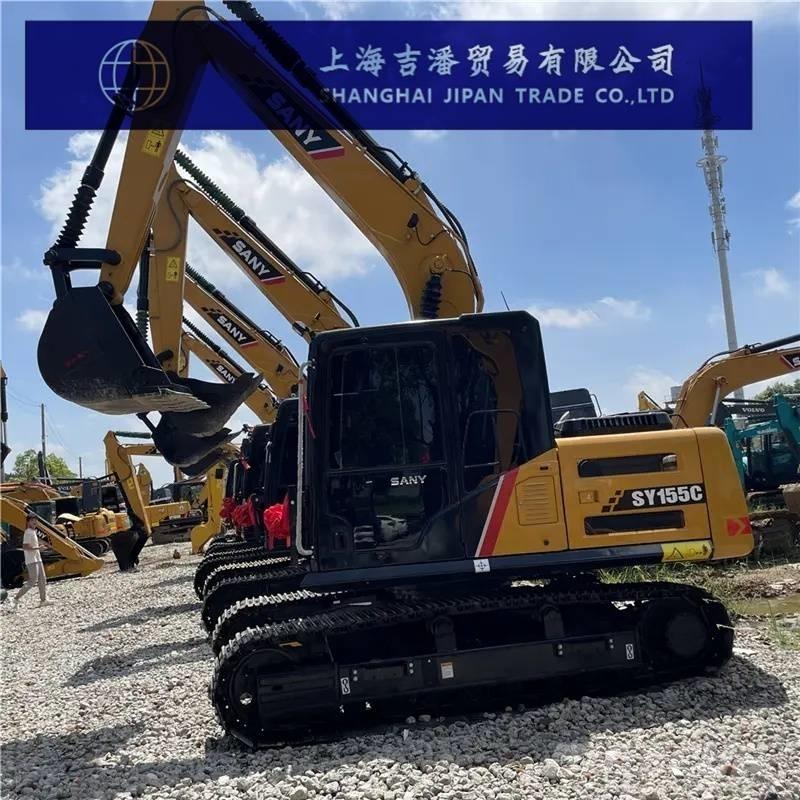

Sany SY 155

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters: Total machine weight 14,100 kg, standard bucket capacity 0.65 m³, rated power 86 kW/2200 rpm, engine model Isuzu 4JJ1, displacement 2.999 L, track shoe width 500 mm, track gauge 1990 mm. Overall Dimensions: Total length (during transportation) 7890 mm, total width (transportation/operation) 2490 mm, total height (during transportation) 2890 mm, upper structure width 2490 mm, total height to cab top 2900 mm, minimum ground clearance 450 mm, tail swing radius 2210 mm, track ground contact length 3010 mm, track length 3730 mm. Performance Parameters: Travel speed (high/low) 5.5/3.5 km/h, swing speed 12 rpm, climbing ability 70% (35°), ground pressure 43 kPa, bucket digging force 103 kN, arm digging force 67 kN. Working Range: Maximum digging height 8800 mm, maximum dumping height 6600 mm, maximum digging depth 5500 mm, maximum vertical arm digging depth 5085 mm, maximum digging radius 8350 mm, minimum swing radius 2500 mm, maximum height at minimum swing radius 6495 mm. Oil and Antifreeze Capacities: Fuel tank 280 L, hydraulic oil tank 200 L, engine oil 15 L, antifreeze 30 L, travel reducer gear oil 2×2.6 L.
