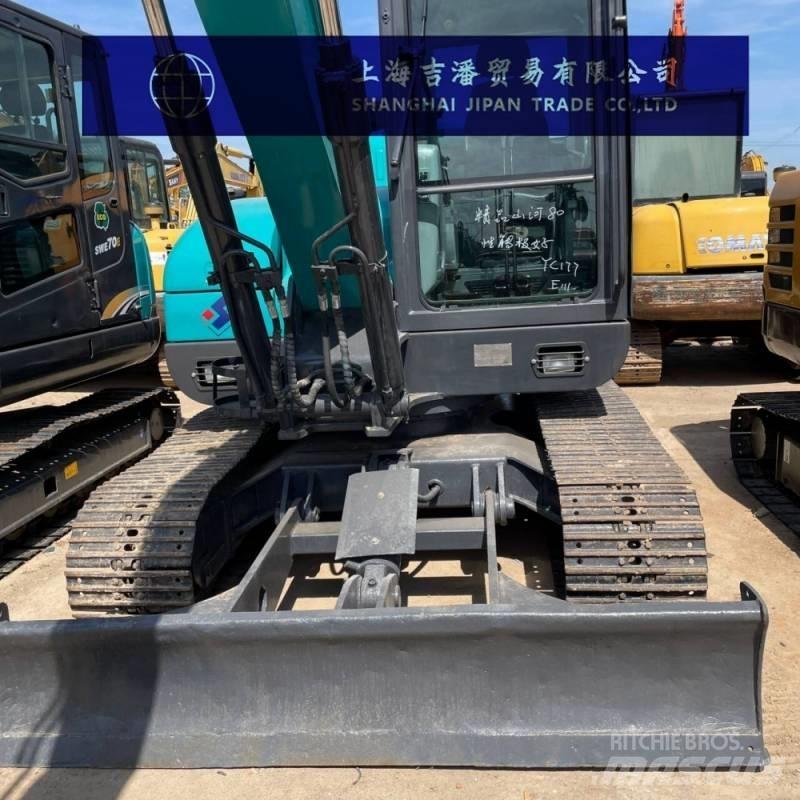

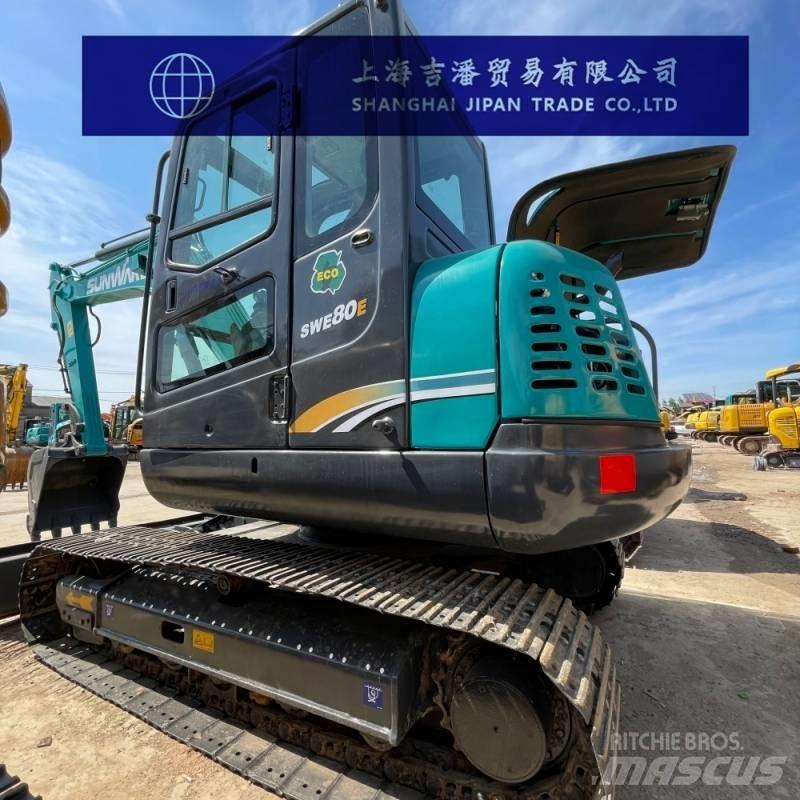

Sunward SWE 80 E
Pris eks. MVA
Skriv ut
INFORMASJON
Gruppe
Midigravere 7 - 12t
Merke / modell
Sunward SWE 80 E
Årsmodell
2024
Driftstimer
500 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
269EA93D
PRIS
Velg valuta
DETALJER
Lager nr.
1
Drivstoff
Diesel
Antall tidligere eiere
1
Tilstand understell
Good Condition
Sist godkjent (dato):
2025-07-02
Serie/VIN nummer
1
Totalvekt
7 700 kg
Motor
Original
Euroklasse
Steg V
Effekt
42,4 kW (57,7 hk)
Reg. nr.
1
Motorprodusent
Original
Volum skuff
0,30 m3
Belte bredde
450 mm
Transportmål (LxBxH)
6025 x 2000 x 2600 mm
Ytelse hydraulikk
85 l/min
Orginal farge
Original
Tilstand Info/Garanti
1 Year
Produsert i (land)
Kina
Leveringsbetingelser
FCA, FOB, CIF, EXW
Sertifiseringer
EPA, CE
Utstyr
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Ektrautstyr
Kvistavledere
Tilleggshydraulikk
Motor forfilter
Dyrkeskuffe
Batteri frakobling
Roterende varsellys
Dieselvarmer
Joystick
Standard skuffe
Kabel skuffe
V profil skuffe
Beskrivelse
General parameters
Overall weight: approximately 7.7 tons
Standard bucket capacity: 0.3 cubic meters
Overall dimensions (length × width × height) : 6025×2000×2660mm
Track width: 450mm
Track grounding length: 2250mm
Track: 1600mm
Engine parameters
Model: Yanmar 4TNV94L
Rated power: 42.4kW (57.6 horsepower)
Rated speed: 2200rpm
Maximum torque: 206N · m (152 pounds · feet)
Parameters of the hydraulic system
Main pump type: Variable plunger pump
The maximum flow rate of the main pump is 2×85L/min
Pilot pump flow rate: 10L/min
System working pressure: 20.6MPa (210kgf/cm²)
Rotary hydraulic motor type: fixed displacement motor
Rotational speed: 10rpm
Type of walking hydraulic motor: Variable motor
Walking speed: 2.5/4.0km/h
Working range parameters
Maximum excavation radius: 6100mm
Maximum excavation depth: 3900mm
Maximum excavation height: 6000mm
Maximum unloading height: 4150mm
Minimum turning radius: 2300mm
Other parameters
Fuel tank capacity: 120L
Hydraulic oil tank capacity: 100L
Coolant capacity: 10L
Air conditioning system: Optional
