CAT CAT305.5E2

Pris eks. MVA

Images10

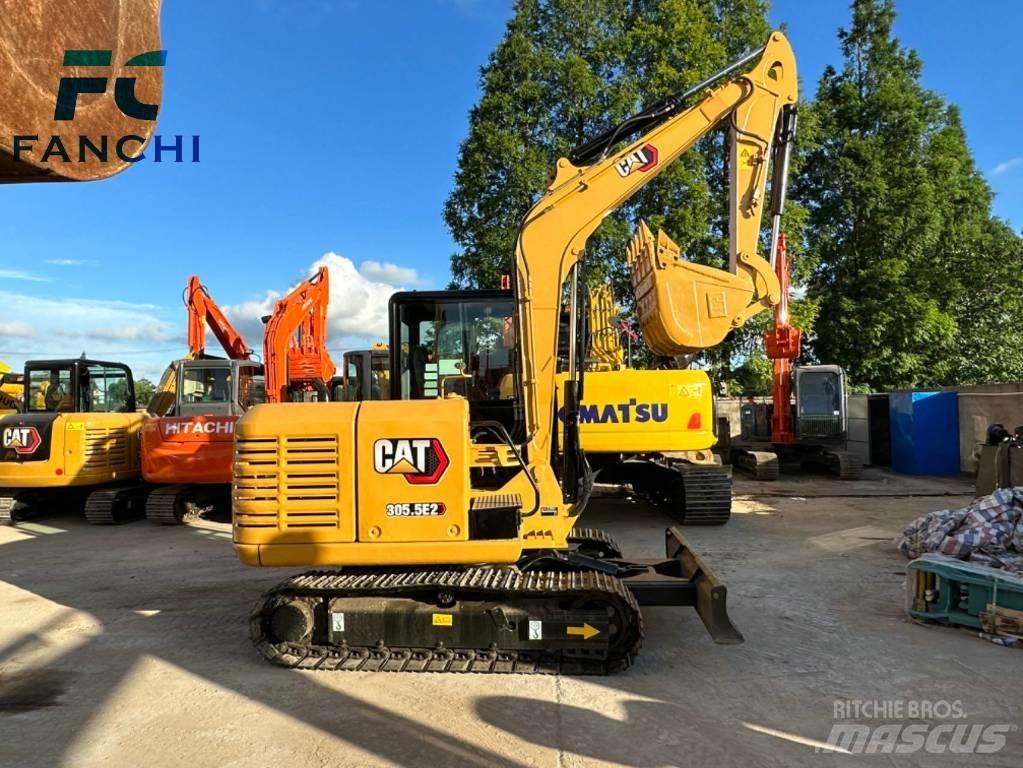

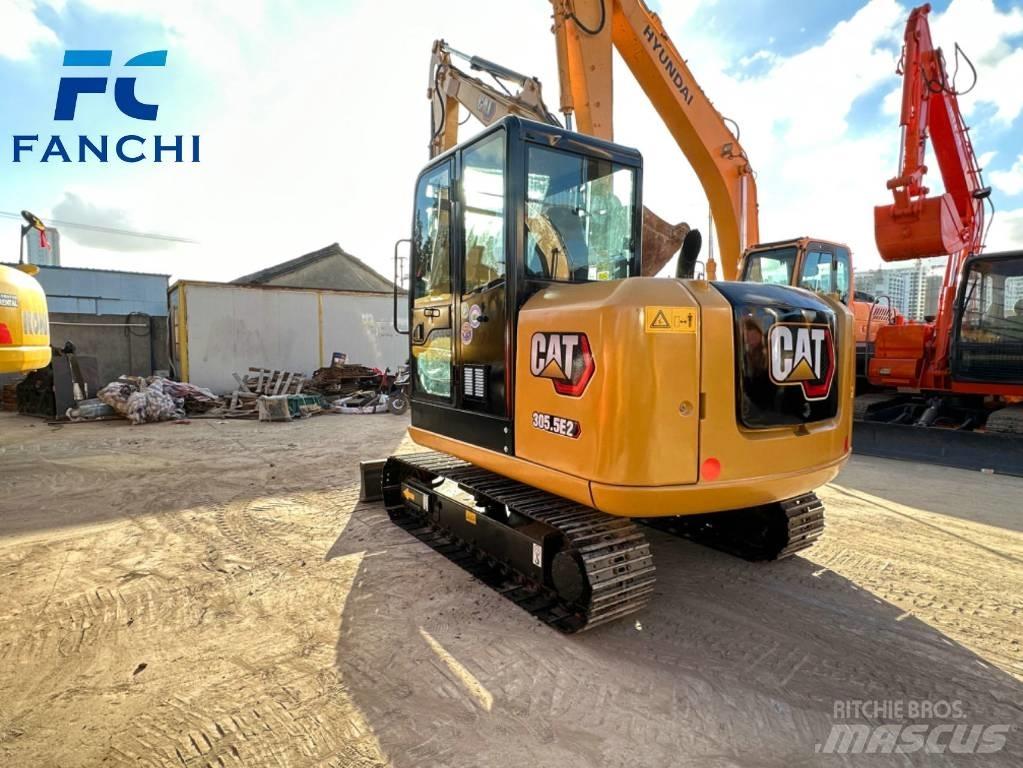

CAT CAT305.5E2 Minigravere <7t
CAT CAT305.5E2 Minigravere <7t
CAT CAT305.5E2 Minigravere <7t
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Minigravere <7t
Merke / modell
CAT CAT305.5E2
Årsmodell
2024
Driftstimer
450 t
Kategori
Pusset opp
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
77BC2619

PRIS

Velg valuta

DETALJER

Drivstoff
Diesel
Full service historikk
Ja
Antall tidligere eiere
1
Tilstand understell
good
Totalvekt
5 500 kg
Euroklasse
Steg V
Belte bredde
400 mm
Volum skuff
0,22 m3
Transportmål (LxBxH)
576519502.54 m
Orginal farge
YELLOW
Arm/stikke lengde
960 mm
Motor
Cat C2.4 DI
Effekt
34,1 kW (46,4 hk)
Motorprodusent
JAPAN
Tilstand Info/Garanti
good
Produsert i (land)
Japan
Leveringsbetingelser
FOB, CIF, EXW
Sertifiseringer
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME (USA)
Utstyr
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Ektrautstyr
Kvistavledere
Klimaanlegg
Tilleggshydraulikk
Ad blue
Vis mer
Beskrivelse
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Vis mer

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kina
