Doosan DH 60

Pris eks. MVA

Images9
Doosan DH 60 Minigravere <7t
Doosan DH 60 Minigravere <7t
Doosan DH 60 Minigravere <7t
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Minigravere <7t
Merke / modell
Doosan DH 60
Årsmodell
2023
Driftstimer
600 t
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
86AB9175

PRIS

Velg valuta

DETALJER

Antall tidligere eiere
1
Tilstand understell
good
Totalvekt
6 000 kg
Belte bredde
400 mm
Volum skuff
2 m3
Transportmål (LxBxH)
585018802.575 m
Orginal farge
YELLOW
Arm/stikke lengde
1 990 mm

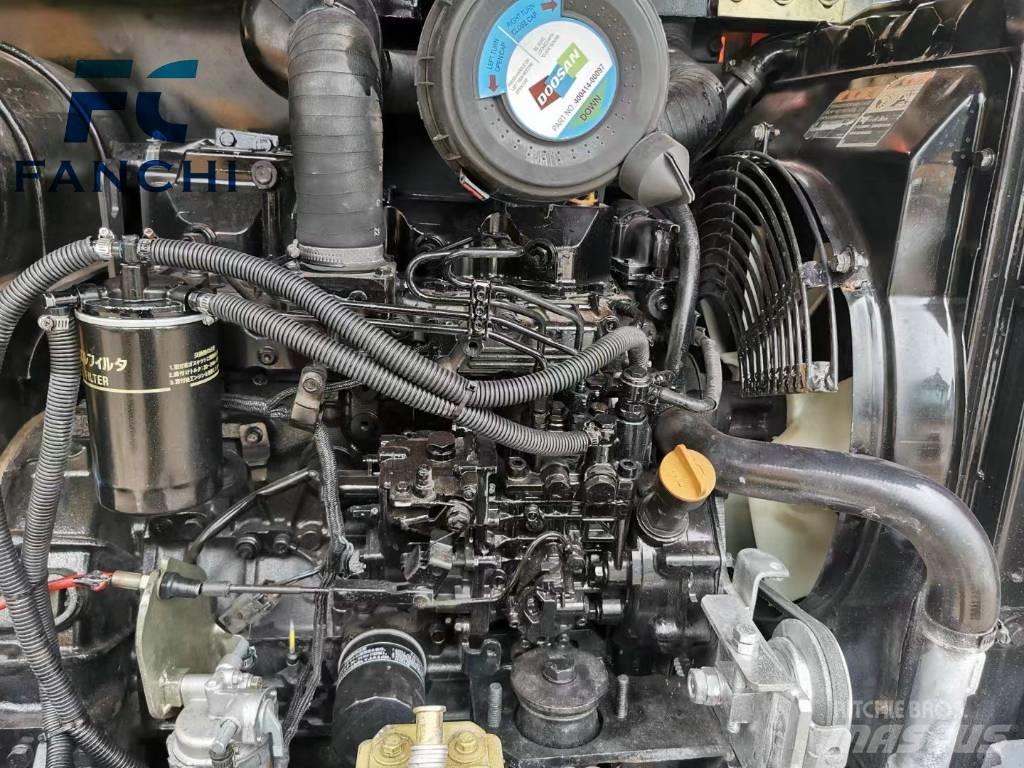

Motor
洋马 4TNV94L
Effekt
38,1 kW (51,8 hk)
Motorprodusent
JAPAN
Tilstand Info/Garanti
good
Produsert i (land)
Japan
Leveringsbetingelser
FOB, CIF, EXW
Sertifiseringer
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME (USA)
Utstyr
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Ektrautstyr
Hydraulisk hurtigkobling
hammer/saks hyd.
Kvistavledere
GPS
Vis mer
Beskrivelse
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minVis mer

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kina
