Kubota KX 165

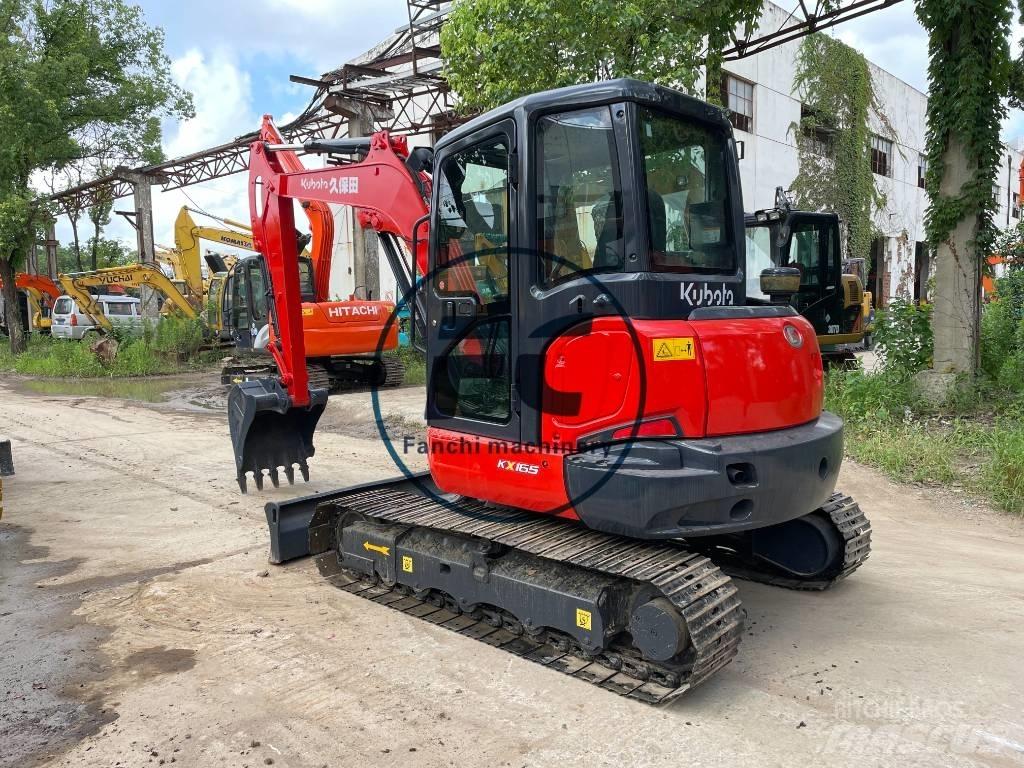

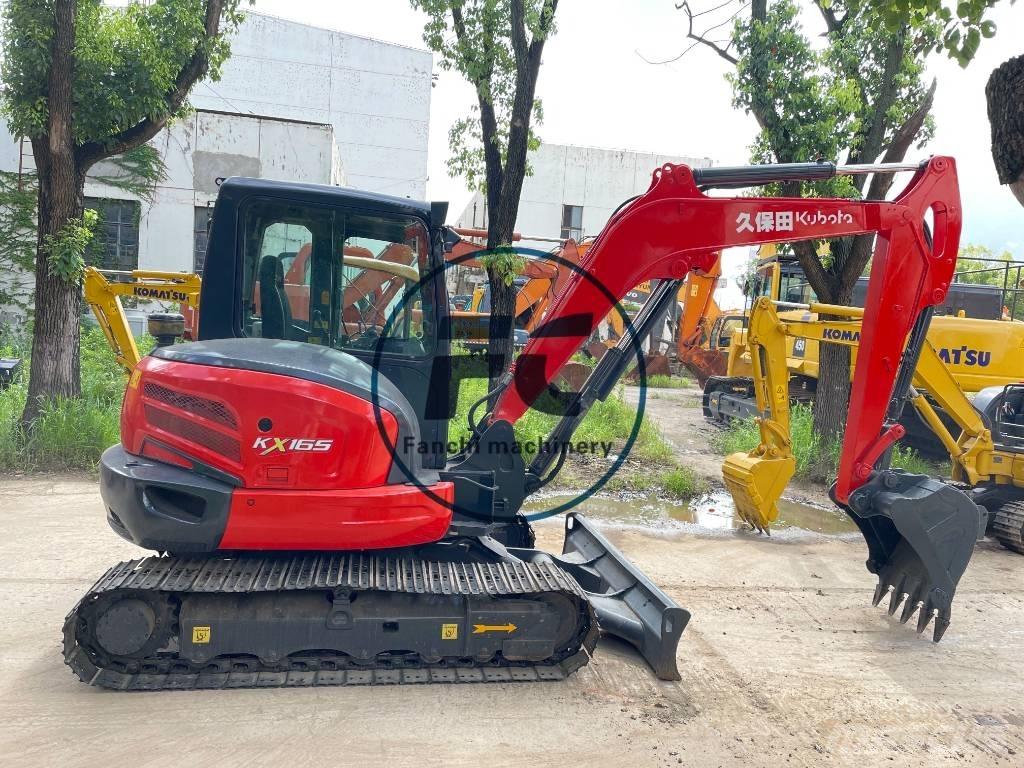

Kubota KX165-5 Excavator Product Description The Kubota KX165-5 is a high-performance 6-ton class excavator, featuring an advanced hydraulic system and a powerful Kubota V2607-DI engine, ensuring efficient and reliable operation. Suitable for various working conditions, it offers excellent digging capability and stable control performance. Main Specifications Operating Weight: 5540 kg Bucket Capacity: 0.24 m³ Power Type: Conventional Power Bucket Type: Backhoe Origin: Japan Performance Features Swing Speed: 9.3 rpm Travel Speed: 2.7/4.6 km/h Gradeability: 30° Bucket Digging Force: 40.1 kN Power System Engine Model: Kubota V2607-DI Rated Power: 48.3 kW / 2200 rpm Displacement: 2.615 L Hydraulic System Main Pump Type: Variable Pump × 2 + Gear Pump × 2 Travel Hydraulic Motor: Piston Hydraulic Motor, 2F Swing Hydraulic Motor: Piston Hydraulic Motor Fuel & Fluid Capacity Fuel Tank Capacity: 75 L Dimensions Overall Length: 5520 mm Overall Width: 1960 mm Overall Height: 2550 mm Track Length: 2500 mm Track Shoe Width: 400 mm Track Gauge: 1560 mm Minimum Ground Clearance: 310 mm Minimum Front Swing Radius: 2420 mm Rear Swing Radius: 1270 mm Operating Range Maximum Digging Radius: 6295 mm Maximum Digging Depth: 3920 mm Maximum Digging Height: 5860 mm Maximum Dumping Height: 4125 mm Maximum Vertical Digging Depth: 2890 mm Dozer Blade Size (Width × Height): 1960 × 410 mm Dozer Blade Lift / Dig Depth: 400 / 410 mm
