Maeda MC285CB-3

Pris eks. MVA

Compnay LOGO
Images6Videos1

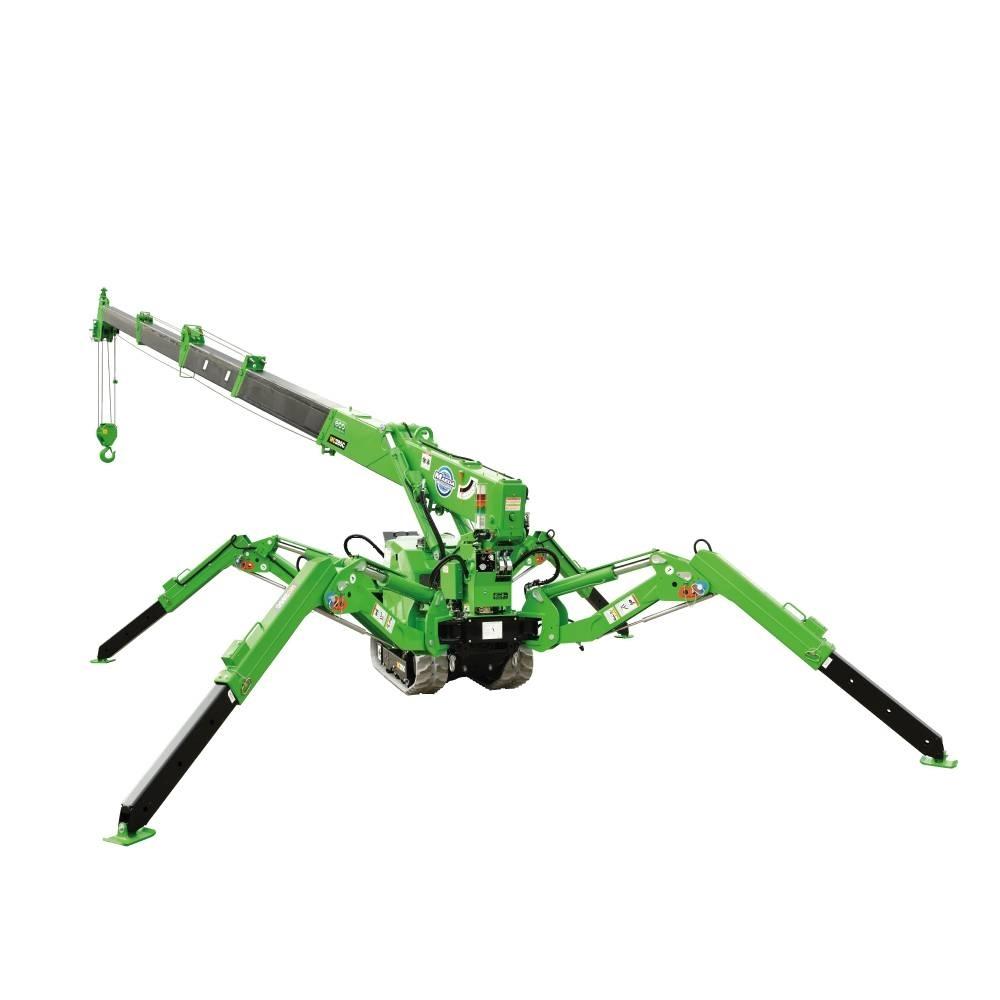

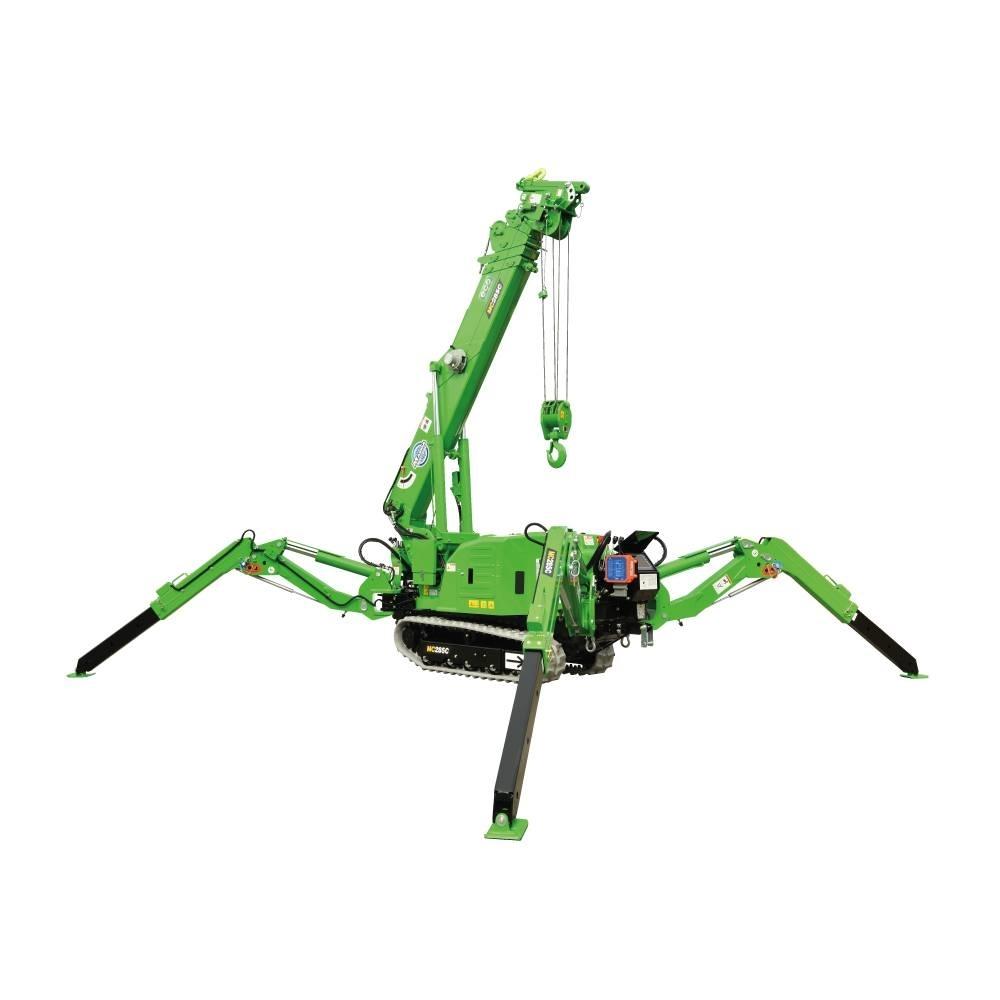

Maeda MC285CB-3 Minikraner
Maeda MC285CB-3 Minikraner
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Minikraner
Merke / modell
Maeda MC285CB-3
Årsmodell
2021
Kategori
Ny/ubrukt
Lagersted
MÖLNLYCKE, Västra Götalands län
Land
Sverige
Generell tilstand
1
2
3
4
5
Mascus ID
CA2FBCA2

PRIS

Velg valuta

DETALJER

Full service historikk
Ja
Totalvekt
1 995 kg
Maks løftekapasitet
2 820 kg
Euroklasse
Steg V
Maks løftekapasitet på Jib
150 kg
Motorprodusent
Toshiba
Løftehøyde
870 cm
Krokhøyde - horisontal bom
820 500 cm
Transportmål (LxBxH)
2800 x 750 x 1470 mm
Tilstand Info/Garanti
Yes, 2 year
Resterende fordekk
100
Resterende Bakdekk
100
Produsert i (land)
Japan
Sertifiseringer
EPA, CE, ANSI
Beskrivelse
The MC285CB-3 is the very first fully electric powered mini crane from Maeda. With absolute zero emissions it can safely be used in sensitive indoor environments, and when regulations need to be achieved. Improved energy efficiency and productivity as well as reduced ventilation needs and maintenance costs are some of the benefits beyond the clear environmental aspect. With a lithium-ion battery, this crane can be operated continuously for over 9 hours, and be fully charged in only 3.5 hours. On top of that, continuous operation is possible while charging which facilitates use. The crane capacity and operating speeds have not been compromised since it equals the regular MC285C-3. The battery-operated MC285CB-3 has a maximum capacity of 2.82 ton x 1.4m. Maximum lifting height on the ground is 8.7m and the maximum working radius is 8.205m x 0.15t. All this is packed in this innovative piece of engineering that only weighs in at 1995kg. As always with products from Maeda we can expect the highest quality and reliability together with great guarantees. Crane Capacity – 2.82t x 1.4m Max. Working Radius – 8.205m x 0.15t Max. Lifting Height – 8.7m Max. Reach Below Ground – 10.1m (4 falls) / 40.4m (single fall) Max. Reach Below Ground (Aux Winch) – 100m (single fall) Outrigger Max. Extended Width – (Lat.) 4,782mm x (Fr.) 4,718mm x (Re.) 3,990mm Travel Speed – 0-2.0km/h Travel Ground Pressure – 50.2kpa (0.512kgf/cm2) Battery Type – Lithium Titanate Battery 5-hour rate capacity – DC55V – 135Ah Input Voltage / current – Single phase AC200V / 16A, AC100V / 15A Charging time (with AC-200V) – 80% : 2h 20min / 100% : 3h 30min Continuous operating time (crane) – 9h 30 min (based on Maeda’s assumed cycle) Charging during operation – Available Options – Black rubber tracks, Single fall hook, 850kg searcher hook. Dimensions – 2,800mm (L) x 750mm (W) x 1,470mm (H) Machine Weight – 1,995kgVis mer

Kranlyft Group

Fibervägen 1 43533 MÖLNLYCKE Västra Götalands län Sverige
