Vahva FORTI 200

Pris eks. MVA

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotatorer
Vahva FORTI 200 Rotatorer
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Rotatorer
Merke / modell
Vahva FORTI 200
Årsmodell
2015
Status
Demokjørt
Lagersted
Saue
Land
Estland
Generell tilstand
1
2
3
4
5
Mascus ID
24BE0111

PRIS

Velg valuta

DETALJER

Lager nr.
VR50000
Full service historikk
Ja
Passer på følgende maskiner
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

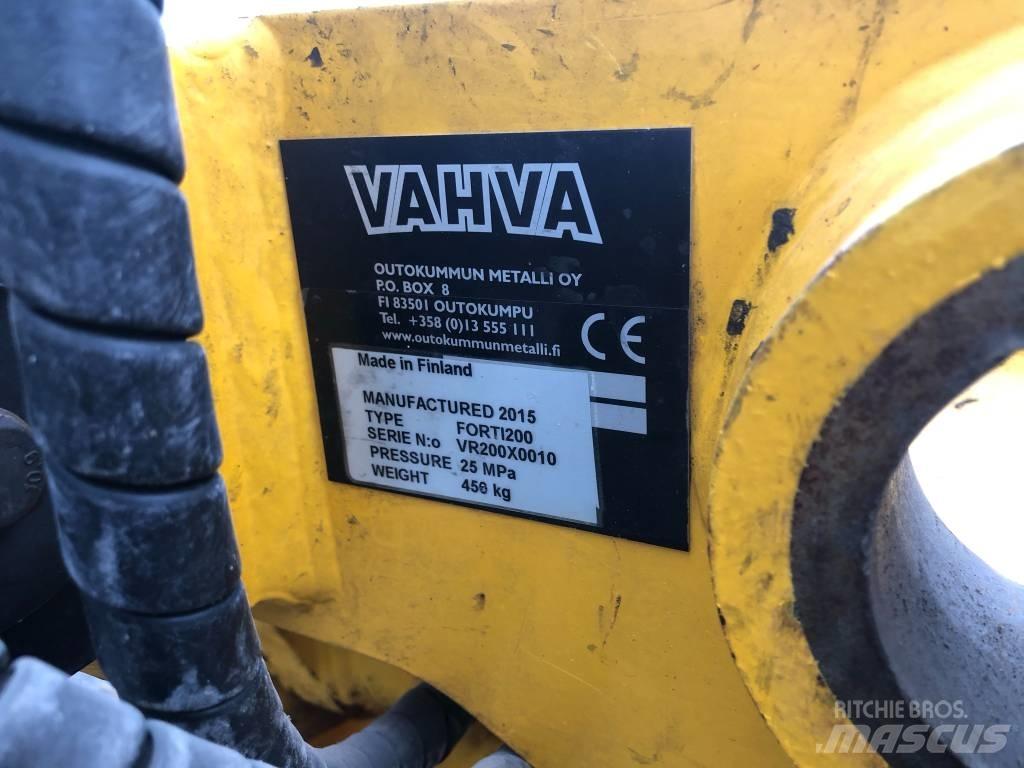

Serie/VIN nummer
VR200X0010
Arbeidstrykk
250 bar
Påkrevet hydraulisk flyt
80 l/min
Transportvekt
450 kg
Transportmål (LxBxH)
990 x 720 x 280 mm
Produsert i (land)
Finland
Leveringsbetingelser
EXW
Sertifiseringer
CE
Beskrivelse

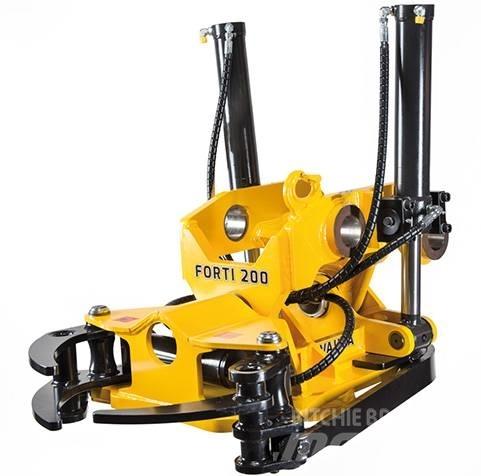

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Vis mer

Sautec AS

Tule 10 76505 Saue Harjumaa Estland
