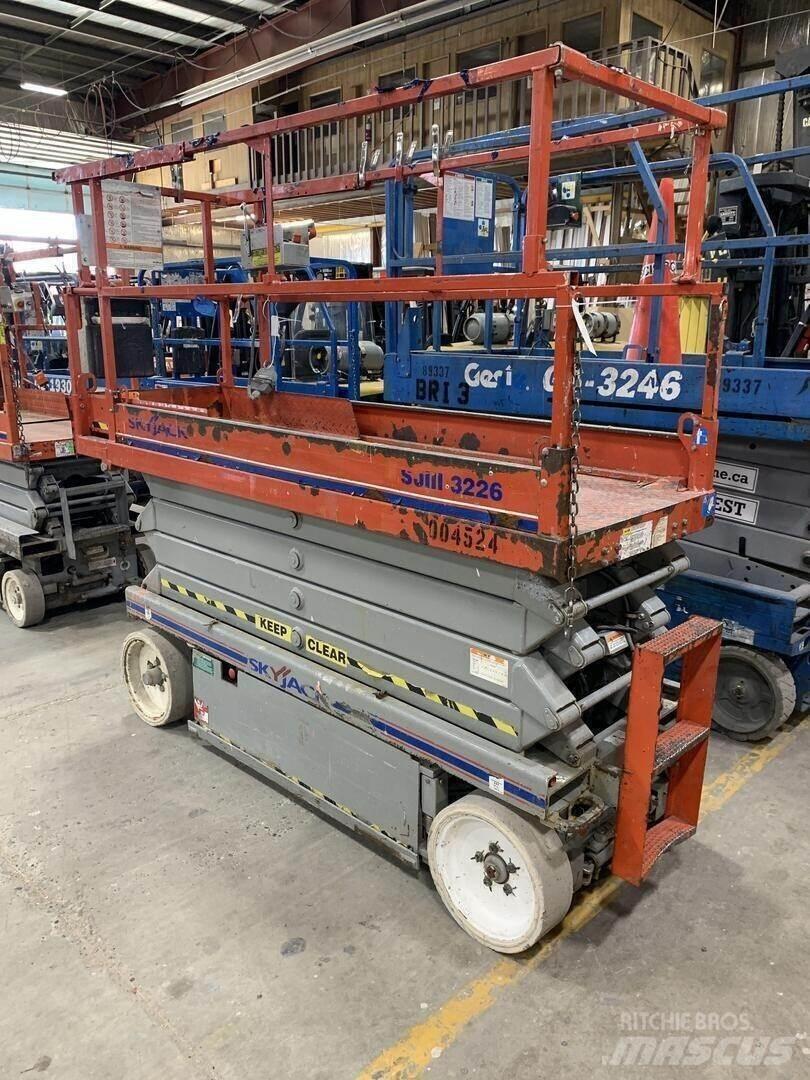

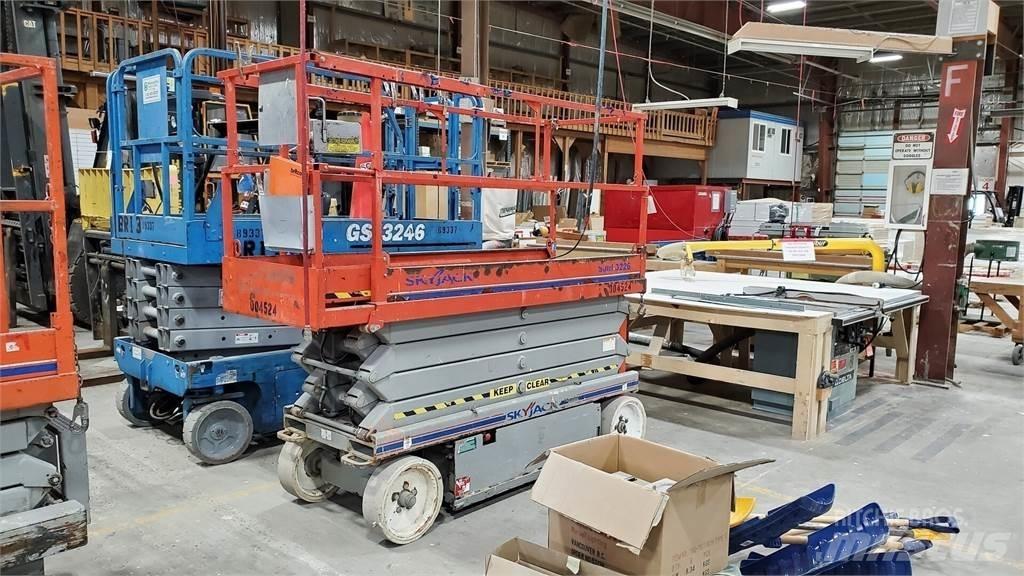

SkyJack SJIII 3226

2008 SKYJACK SJIII 3226 Scissor Lift – Aerial Equipment – 500 lb, Cushion , Electric , 84" x 28" , 312 Title: Scissor Lift SJIII 3226 SKU: 20068 Model: SJIII 3226 Year: 2008 Condition: Used S/N: 27004524 GeneralMax. Lift Capacity:500lb Tires:Cushion Fuel Type:Electric Platform Size:84" x 28" Max. Lift Height:312 Dimensions: 92.00 (H) x 32.00 (W) x 45.00 (L) inches Work Height: 32? (9.75 m) Raised Platform Height: 26? (7.92 m) Lowered Platform Height: 45? (1.14 m) Stowed Height (Rails Up): 84.7? (2.15 m) Stowed Height (Rails Down): 70.6? (1.79 m) Extension Deck (Roll Out): 3' (0.91 m) Ground Clearance (Stowed): 3.5'' (8.89 cm) Ground Clearance (Raised): 0.75'' (1.90 cm) Wheelbase: 69'' (1.75 m) Grade ability: 30% Turning Radius (Inside): 50'' (1.27 m) Turning Radius (Outside): 108'' (2.74 m) Lift Time (With Rated Load): 56 sec Lower time (With Rated Load): 42 sec Drive Speed (Stowed): 2.4 mph (3.9 km/h) Drive Speed (Raised): 0.7 mph (1.1 km/h) Maximum Drive Height: Full Height Capacity (Overall): 500 lbs (227 kg) Distributed Capacity (Main Platform): 250 lbs (113 kg) Distributed Capacity (Extension Deck): 250 lbs (113 kg) Local Floor Load (With Rated Load): 130 psi (897 kPa) Overall Floor Load (With Rated Load): 235 psf (12 kPa) Maximum # of Persons: 2 Wind Rating: 28 mph (12.5 m/s) Tire Type: Solid, N/M Tire Size: 16 x 5 x 12
