Maximus 522 T

Pris eks. MVA

Ring for pris

Compnay LOGO
Images9

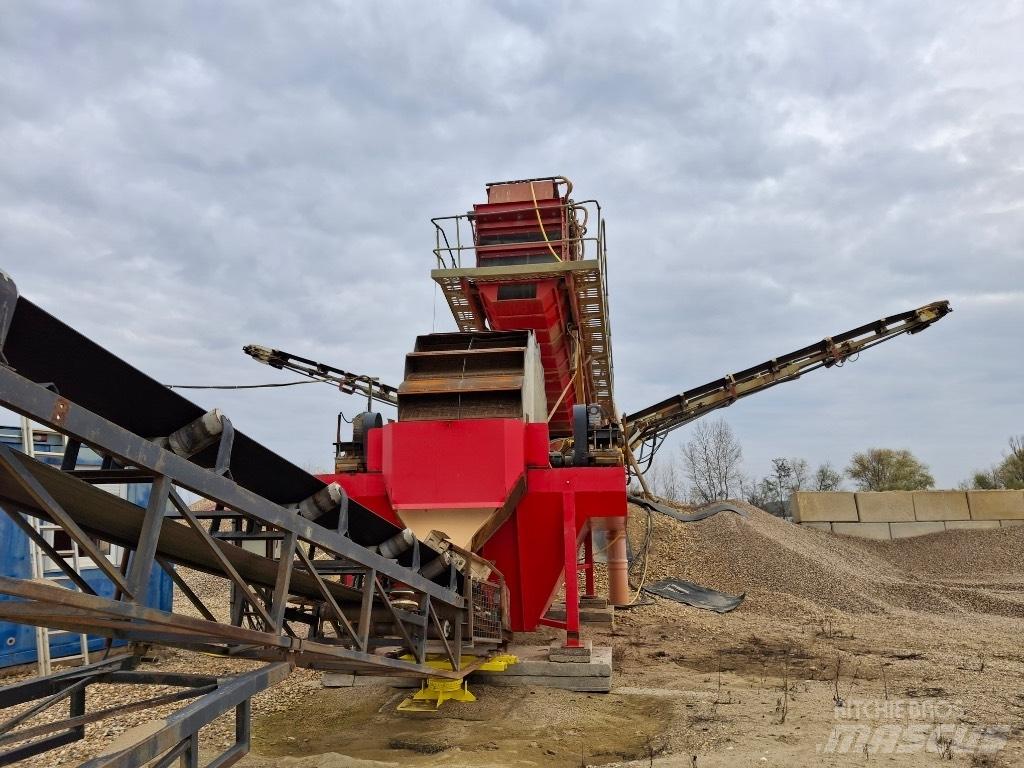

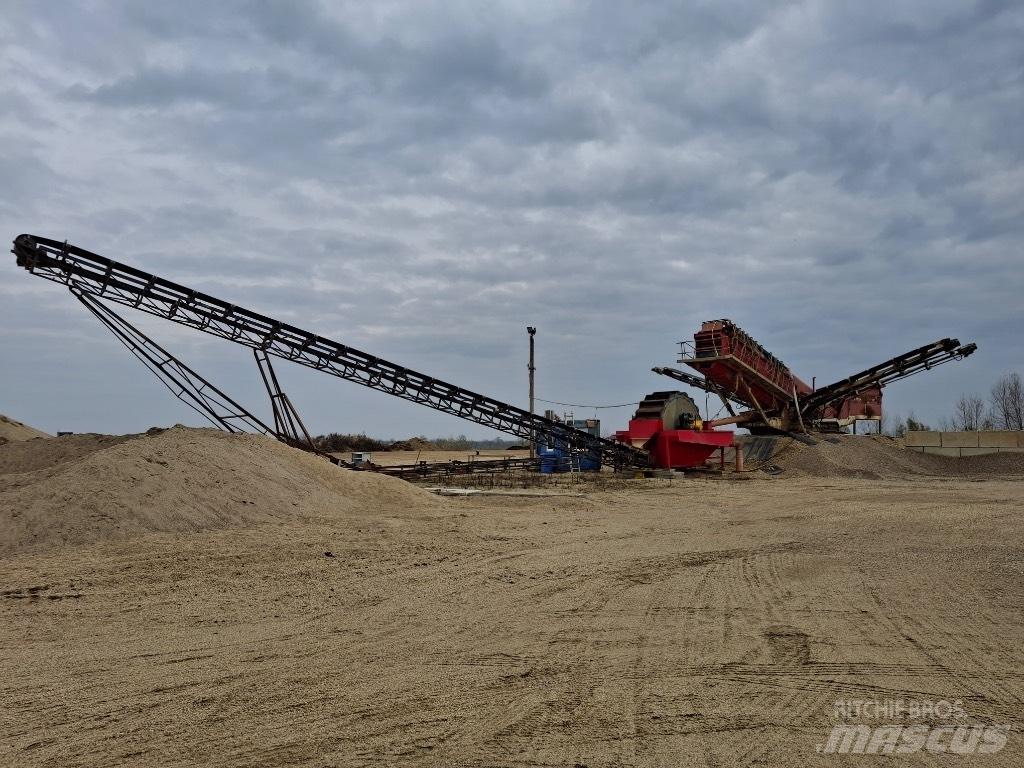

Maximus 522 T Sikteverk
Maximus 522 T Sikteverk
Maximus 522 T Sikteverk
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Sikteverk
Merke / modell
Maximus 522 T
Årsmodell
2015
Driftstimer
8 318 t
Kategori
Overhalt
Lagersted
Budapest, Budapest
Land
Ungarn
Mascus ID
E754E682

DETALJER

Serie/VIN nummer
3D07M5223062
Produsert i (land)
Irland
Leveringsbetingelser
EXW
Beskrivelse
Machine Type: Maximus 522T Year of Manufacture: 2015 Operating Hours: 8,318 Dehydrator Tub Dimensions: 3500 x 4400 mm Dehydrator Wheel: 3-meter diameter, 1420 mm wide Rotating Stockpile Conveyor: 20 meters long with a 650 mm belt Water Pump Capacity: 2225 l/min, Electric Motor Power: 30 kW System Capacity: 150 tons/hour The screening unit of the machine was replaced with a brand-new factory unit in the spring by a manufacturer-provided service team. The three-deck screen surface is 6.1 x 1.525 meters. The entire machine unit has undergone a complete refurbishment: All drums, clutches, rollers, bearings, and springs have been replaced. 80% of the belts have been replaced. The transfer chutes have been refurbished. Most of the hydraulic hoses have also been replaced. The 95 kW Caterpillar engine has been inspected and fitted with a new water pump and generator. A new belt scale has been installed, providing performance data accessible via the internet. An automatic greasing system has been added to ensure proper lubrication of the bearings without relying on the operator’s discretion. A rotary base has been installed for the 0/4 stockpile conveyor, allowing a fan-shaped movement that enables the deposition of approximately 1,500-1,800 tons of sand without requiring a loader. The stockpile conveyor’s gearbox, motor, and travel drive system have been refurbished. The belt and all rollers have been replaced. The pump and electric motor supplying water to the classification system have been refurbished. This complete classification system delivers a real capacity of 150 tons/hour, while the dehydrator has a capacity of approximately 80-90 tons/hour.Vis mer
