JCB 3 CX

Pris eks. MVA

Compnay LOGO
Images25

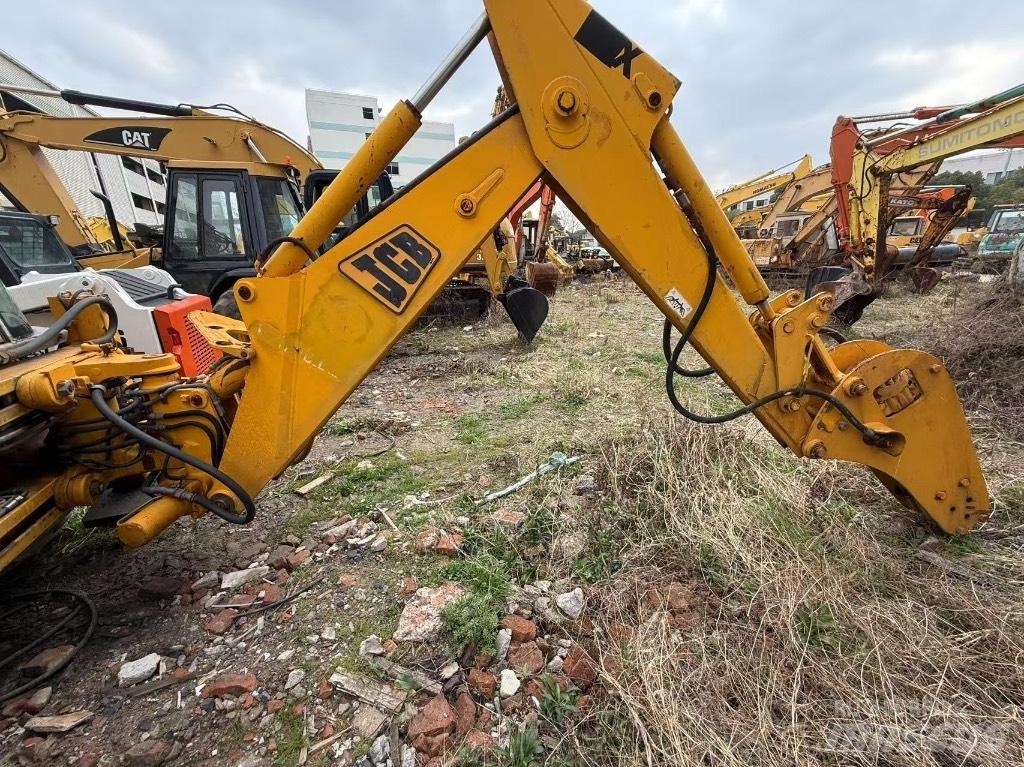

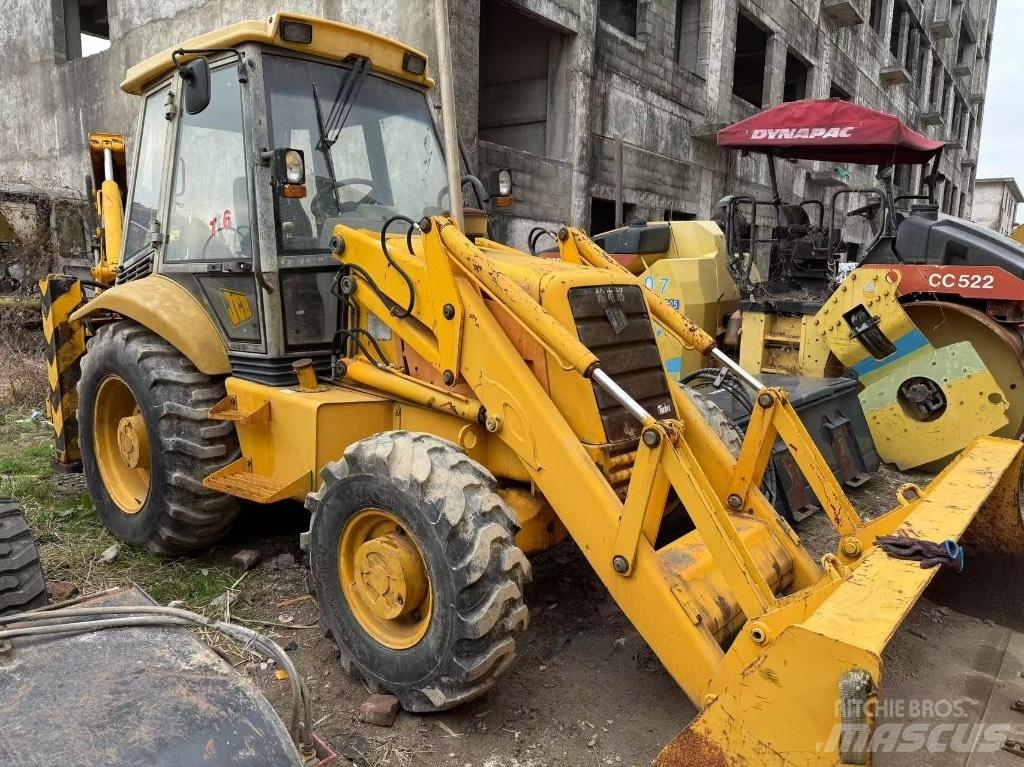

JCB 3 CX Traktorgravere
JCB 3 CX Traktorgravere
JCB 3 CX Traktorgravere
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Traktorgravere
Merke / modell
JCB 3 CX
Årsmodell
2016
Driftstimer
3 200 t
Kategori
Ny/ubrukt
Land
Kina
Generell tilstand
1
2
3
4
5
Mascus ID
48F06EFB

PRIS

Velg valuta

DETALJER

Drivstoff
Diesel
Antall tidligere eiere
0
Framdrift
4 WD
Totalvekt
8 000 kg
Euroklasse
Steg IIIA/Tier IV interim
Karosseritype
Fastspent ramme
Motor
JCB
Topphastighet
50 km/h
Effekt
70 kW (95,2 hk)
Motorprodusent
JCB
Orginal farge
yes
Tilstand Info/Garanti
perfect
Alternativer
Styring på alle hjul
Resterende fordekk
100
Resterende Bakdekk
0
Produsert i (land)
Storbritannia
Leveringsbetingelser
CIF, EXW
Ektrautstyr
slangebruddsventil, stikke/bom
"hurtigfeste; laster"
Klimaanlegg
Tilleggshydraulikk
Vis mer
Beskrivelse

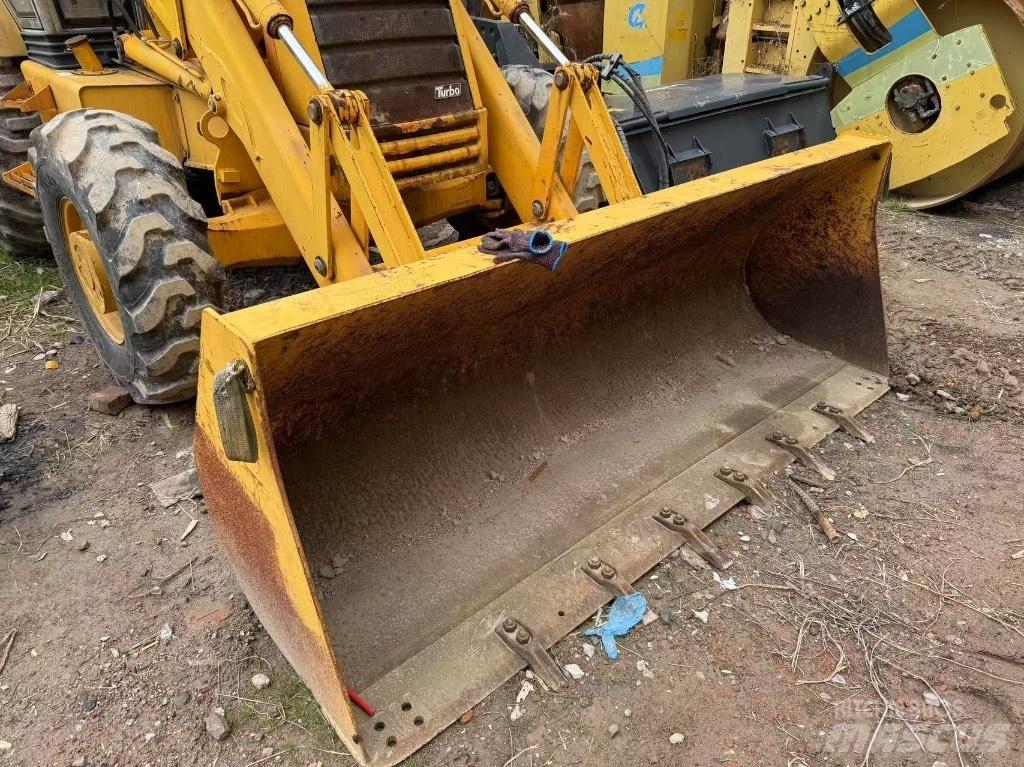

Engine parameters: The engine model is JCB 3CX, with a rated power of 63kW and a rated speed of 2200 revolutions per minute Transmission parameters: The transmission model is JCB 3CX, the diameter of the hydraulic torque converter is 305 millimeters, and the torque conversion coefficient is 3. The driving speeds for each gear are: first gear 5.5/5.6 km/h, second gear 8.9/9.0 km/h, third gear 19.1/19.2 km/h, fourth gear 34.8/34.8 km/h Hydraulic system parameters: Hydraulic system capacity is 132 liters Fuel system parameters: Fuel tank capacity of 160 liters Machine parameters: The working weight is 7370 kilograms, length x width x height (in driving condition) is 5620 x 2360 x 3610 millimeters, and the wheelbase is 2170 millimeters. The front wheel specification is 12.5 × 18, and the rear wheel specification is 18.4 × 26. The steering diameter (with brakes) is 8.1/10.4 meters, and the steering diameter (without brakes) is 6.9/9.5 meters Loading end parameters: The bucket capacity is 1.0/1.1 cubic meters (universal loading bucket) or 1.0 cubic meters (six in one loading bucket). The maximum unloading height is 2740/2720mm, and the maximum unloading distance is 830mm These parameters provide detailed specifications and performance indicators for the JCB 3CX excavator loader, helping users better understand and use the equipment.Vis mer

上海龙东工程机械有限公司

NO. 3999 South Lianhua Road , Minhang District , Shanghai , China 201100 上海 上海 Kina
