SmartTEH ST-20/750

Pris eks. MVA

Ring for pris

Compnay LOGO
Images9
SmartTEH ST-20/750 Transportbånd
SmartTEH ST-20/750 Transportbånd
SmartTEH ST-20/750 Transportbånd
FavoriteFavoritt
shareDel
Save searchLagre søk
Skriv ut

INFORMASJON

Gruppe
Transportbånd
Merke / modell
SmartTEH ST-20/750
Årsmodell
2019
Driftstimer
220 t
Kategori
Demo-kjørt
Land
Latvia
Generell tilstand
1
2
3
4
5
Mascus ID
055DF23C

DETALJER

Antall tidligere eiere
1
Full service historikk
Ja
Totalvekt
40 000 kg
Bevegelig
Mobil
produksjonskapasitet
750 omdr./t
Motor
diesel type KDI
Motorprodusent
Kohler
Transportmål (LxBxH)
28.5 x 3.9 x 3.85 mm
Produsert i (land)
Latvia
Leveringsbetingelser
EXW
Utstyr
remote control, remote diagnistics
Ektrautstyr
kontroll system
Beskrivelse

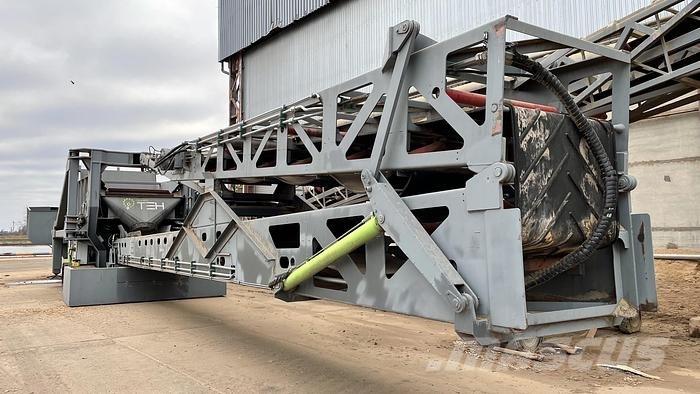

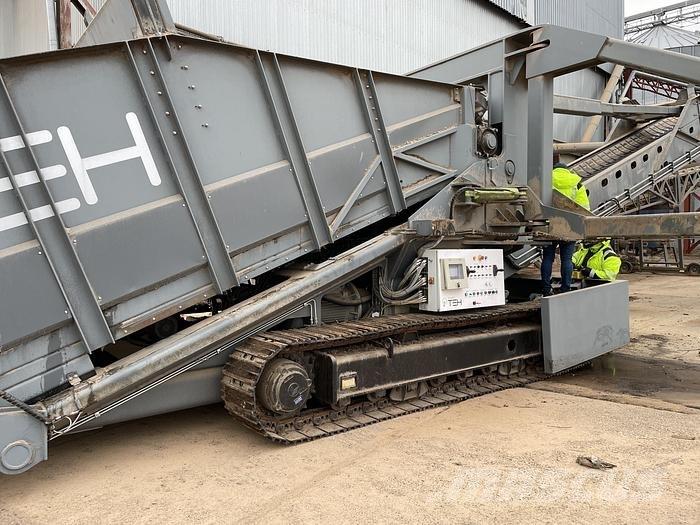

Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAFVis mer

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads Latvia
