Goldhofer RA 4 Tower Adapter

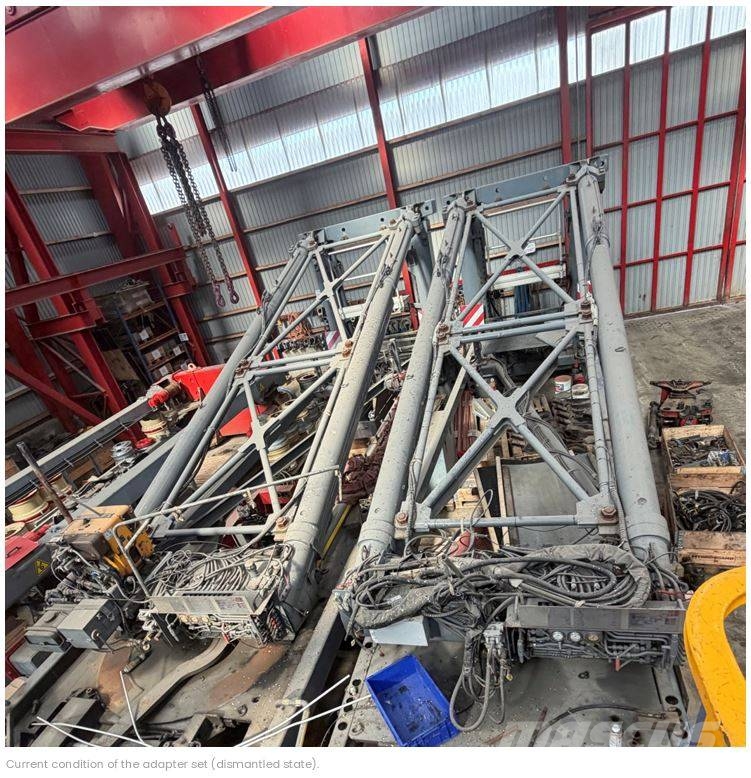

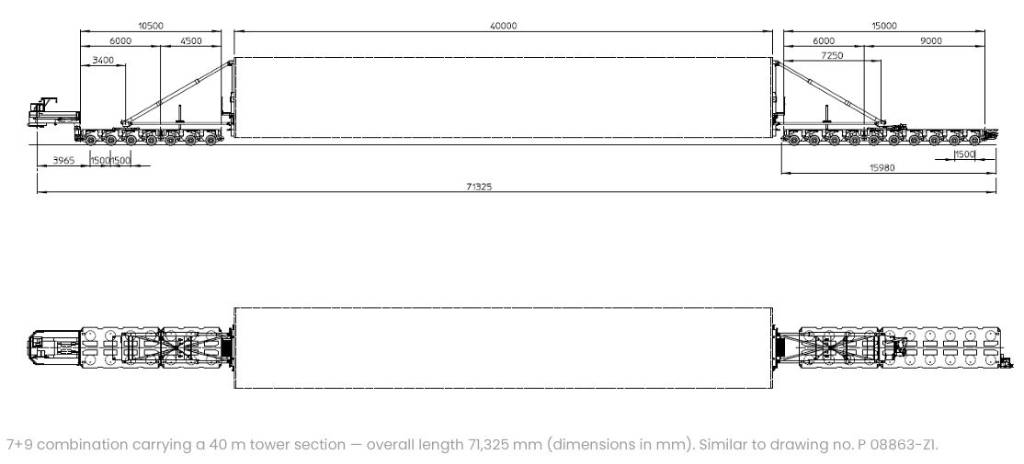

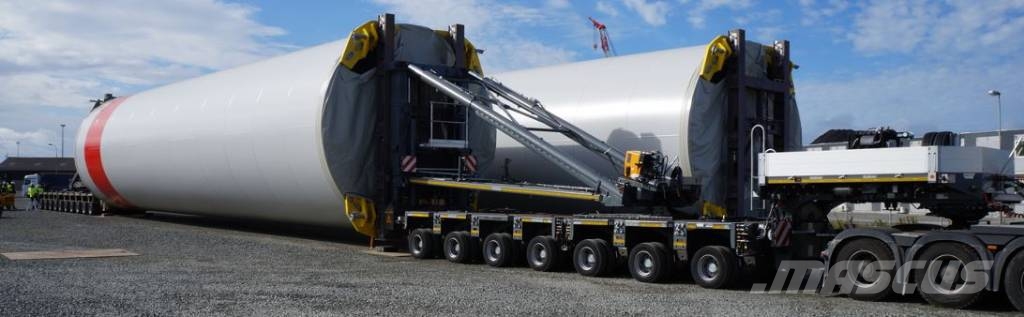

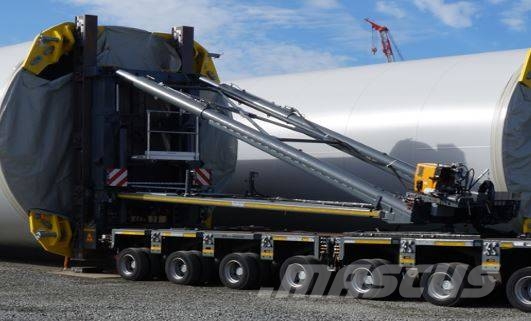

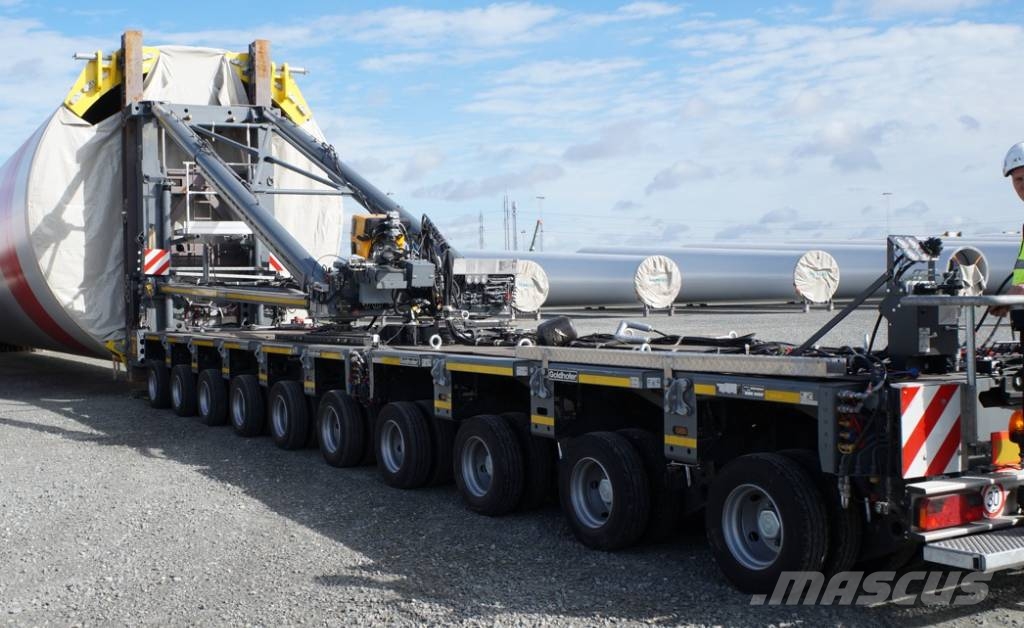

GOLDHOFER RA 4 TOWER ADAPTER (Tower adapter set for wind turbine tower sections — 90 t per adapter, total capacity 180 t) The Goldhofer RA 4 is a tower adapter set for transporting wind turbine tower sections. It is mounted on modular Goldhofer vehicles, for example a 7+9 combination (7-axle semi low-loader with gooseneck plus THP/SL-L 3+4 combination, and a 9-axle trailing unit THP/SL-L 4+5 combination). The adapters grip the tower section by its inner flange and lift, lower and carry it in a free-swinging arrangement, which allows long tower sections to be moved with high ground clearance and full hydraulic control. TECHNICAL SPECIFICATION Year of manufacture: 2016 Scope of supply 1 set = 2 adapters, 7,500 mm + 7,500 mm version Payload 90,000 kg per adapter / 180,000 kg per adapter pair (even load distribution, centre of gravity centred — refer to load diagram) Design Welded construction, high-grade fine-grain steel Principle Free-swinging: telescopic vertical tower connection frame, pair of inclined hydraulic cylinders, horizontal drawbar with cross-bracing, cross beams with ball elements and skid shoes (1 pair of skid shoes per adapter pair). Flange range Inner flange diameter 2,700 – 5,900 mm; outer flange 2,700 – 5,800 mm Clamping 4 clamping claws per adapter, 300 mm flange thickness, incl. mechanical outer-flange clamping; three pairs of hole rails for fine adjustment Dimensions Width approx. 2,750 mm; height approx. 2,000 mm, telescopic to 3,750 – 5,750 mm Lift Vertical lift on tower section approx. 1,400 mm (depends on diameter/length) Height, unloaded Approx. 3,950 mm at 200 mm ground clearance (adapters coupled to each other) Tare weight Approx. 10,000 kg per adapter Colour Standard paint, MB 7350 “Novagrau” CONFORMITY CE declaration of conformity available on request. Built in accordance with Machinery Directive 2006/42/EC, the EMC Directive and the safety standards EN ISO 12100 and EN ISO 13857. EQUIPMENT INCLUDED • Fully hydraulic operation via 2 cable remote controls (plug-in at cross-beam control panels; manual operation at panel possible) • Cross beam with integrated 300 l oil tank, prepared for mounting a Hatz 10 kW power pack • 1 hydraulic cylinder per adapter to support the unloaded adapter on the chassis, stroke 600 mm, individually controllable • Hydraulic sliding plate for lateral shifting of the unloaded adapter on the THP loading platform • 1 working platform with railing per adapter, incl. 1 aluminium ladder for both adapters • 1 pair of extendable, fold-out square profiles as spacers for clamping chains • 1 pair of illuminated oversize warning boards per adapter, extendable up to approx. 6,600 mm width • 1 set of clamping chains, length 20 + 5 + 5 + 5 m • 1 hose package for electrics, ABS and brakes, length 35 m; 1 pair of magnetic light chains (right/left), length 35 m • Couplings for hydraulics, electrics and brakes; 1 special holder for a THP control panel on the loading platform of the trailing unit. ACCESSORIES · 2 x HATZ POWER PACK 10 kW Noise-damped, hydraulic pump 12 l/min, electric starter and fuel tank, without bracket, for front or rear cross beam mounting, starter and throttle extension to adapter control panel, standard paint MB 7350 “Novagrau”, weight approx. 460 kg. Available at short notice - More info on request -
