BIK FC-75

Pris eks. MVA

Ring for pris

FavoriteFavoritt
shareDel
Save searchLagre søk
report adRapporter mistenkelig annonse

INFORMASJON

Gruppe
Kranbil
Merke / modell
BIK FC-75
Status
Ny/ubrukt
Lagersted
Milford, Massachusetts
Land
USA
Generell tilstand
1
2
3
4
5
Mascus ID
A149C671

DETALJER

Beskrivelse

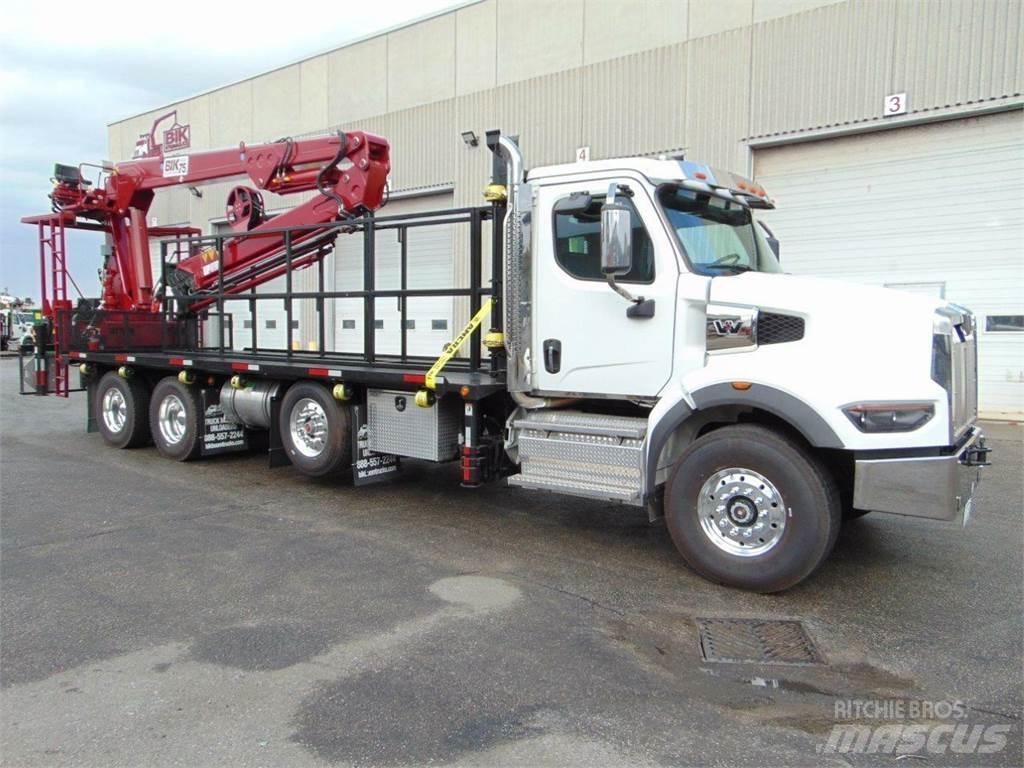

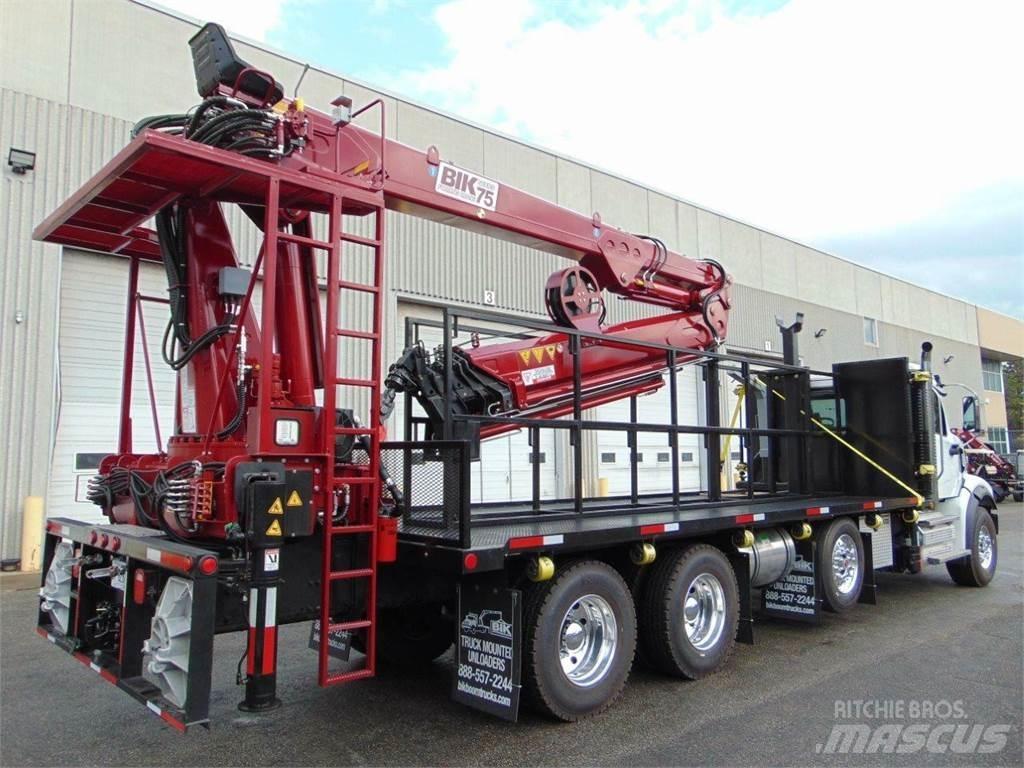

BOOM DETAILS New – BIK Series Forming Crane FC-75  Unloader :  Installed End of frame, on sub-frame by BIK Hydraulics Ltd . Fully Hydraulic Main Boom, with 5- Hyd Extentions to 75’ side reach – (86’ vertical):  Boom Size:  35  ton  meter., 2,000 lb cap ... 75’’  STANDARD FEATURES INCLUDE  : Continuous Boom Rotation  with Dual Planetary Bearing Gear Drive Motors – Base rotating on large sealed bearing – Ensures ease of operation under full load, reduces lifetime maintenance – Boom can rotate up to 15 degrees off level Extra Wide – Double Extention 27’ span Stabilizers  all hyd cyl’s & not chain driven at boom base , Front mtd  21’ span Auxilary Stab’s No Computer Sensors  – Simple hydraulics – Load holding valves on every cylinder—Hydraulic overload sensing device. Manual controls at top seat  –  Joystick / foot pedal type with ladder access Extra function  plumbed o the end of boom with hose reel and Hyd Hook Rotator at end with Special Blue hook Hydraulic Oil Cooler  installed at crane to ensure longer life of oil & hyd pump and reduce working temperature of hyd oil Dual 4 section  control valve for stabilizers at rear and plumbed to accommodate auxiliary stabalizers Installation on Chassis at end of frame, including Sub-Frame, and New Pump and PTO. All proper connections DECK DETAILS New –  24’ x 102” Steel Checker plate   – LOW PROFILE: to accommodate up to 9’2” tall Form Cages Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear Aluminum deck surface, 60” + headboard, Center Divider 4-vertical mounted winch straps mounted ahead of headboard to wrap around cages  for transport 6 – under deck sliding tie-down winch straps on passenger side Winch bar holder and winch bar, dual ladder access, reflectors and side lights  as required by DOT standards. TRUCK DETAILS New  – Western Star 49X  4-Axle  Diesel  Truck:   86,000 lb GVWR 12L Cummins Diesel, 500 hp Eaton Ultrashift Plus Automated 18spd Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on   Alum rims 20,000 lb self steer lift axle ahead of t/a, 46,000 LB Rears on Tuftrac Suspension with  11R22.5 tires on Aluminum rims Double frame chassis Truck  Features Include: Two Stage Engine Brake,  Air Cond., AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, engine block heater, painted ext visor,  trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc… Also included: Two sets of PVC stabilizer pads with holders mounted Vis mer

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts USA
