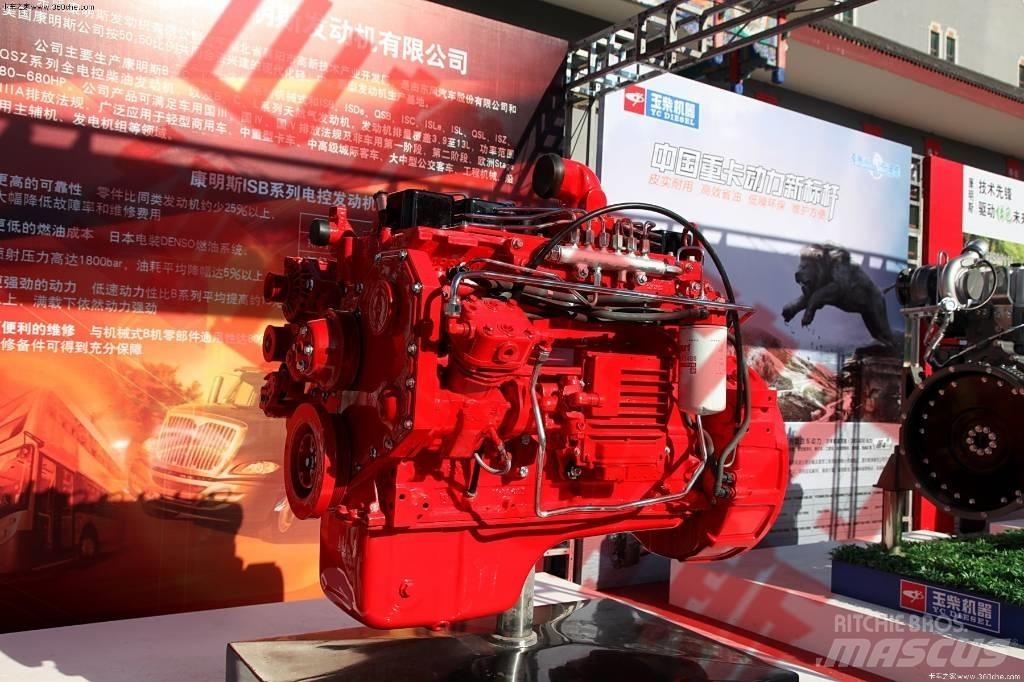

Cummins ISB220-40

Turbo

Engine model ISB220-40 Engine type 6 cylinders in line Displacement 5.9L Rated Power (KW@RPM) 162kW(220HP)@2500rpm Peak Torque(Nm@RPM) 800 N.m @1500rpm Emission Standard Euro IV Cummins diesel engine ISB220-40 technique specification Bore*stroke 102*120mm Intake method Turbochager&Intercooled Fuel systeme DENSO high pression Common rail Cooling method Fluid Cooling7.0L Governor Type ECM Control Compression Ratio 18:1 Fuel Consumption: 20.8L/hr@Rated Power Starting System Electrical Starting Motor 24V/510A Lowest Starting Temp .(without/with auxiliary system) -10℃/-41℃ Cummins diesel engine ISB220-40 trade information Warranty time 1year or 1500h Engine Size(L*W*H): 1095mm*744mm*905mm Weight net 453Kg Delivary port Qingdao Delivary time 15 working days Trade termes FOB/CIF/CNP Payement termes T/T，L/C All the spare parts for Cummins ISB220-40 are available;
