INFORMASJON

Gruppe
Frontlaster ektrautstyr
Merke / modell
Rinieri EB 1532 4
Årsmodell
2015
Status
Demokjørt
Lagersted
Degeberga
Land
Sverige
Generell tilstand
1
2
3
4
5
Mascus ID
ED5802F0

PRIS

Velg valuta

DETALJER

Lager nr.
6EB15324
Tilbehør merke
Høygaffel
Serie/VIN nummer
28311
Transportvekt
500 kg
Tilstand Info/Garanti
Ingen
Produsert i (land)
Italia
Beskrivelse

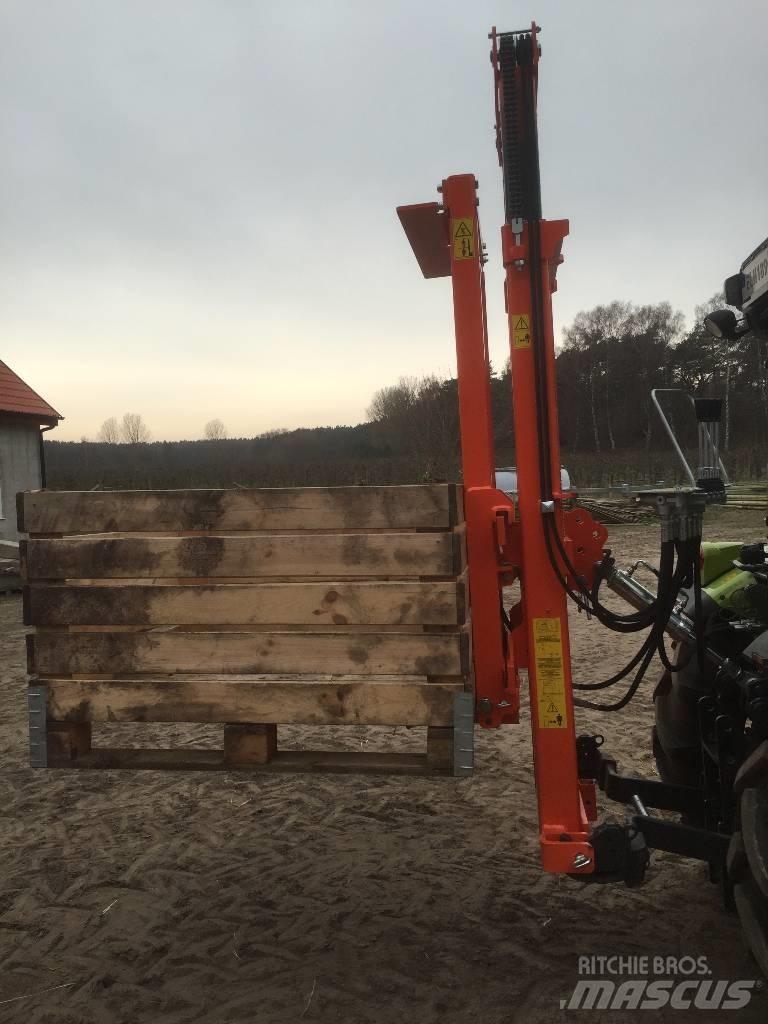

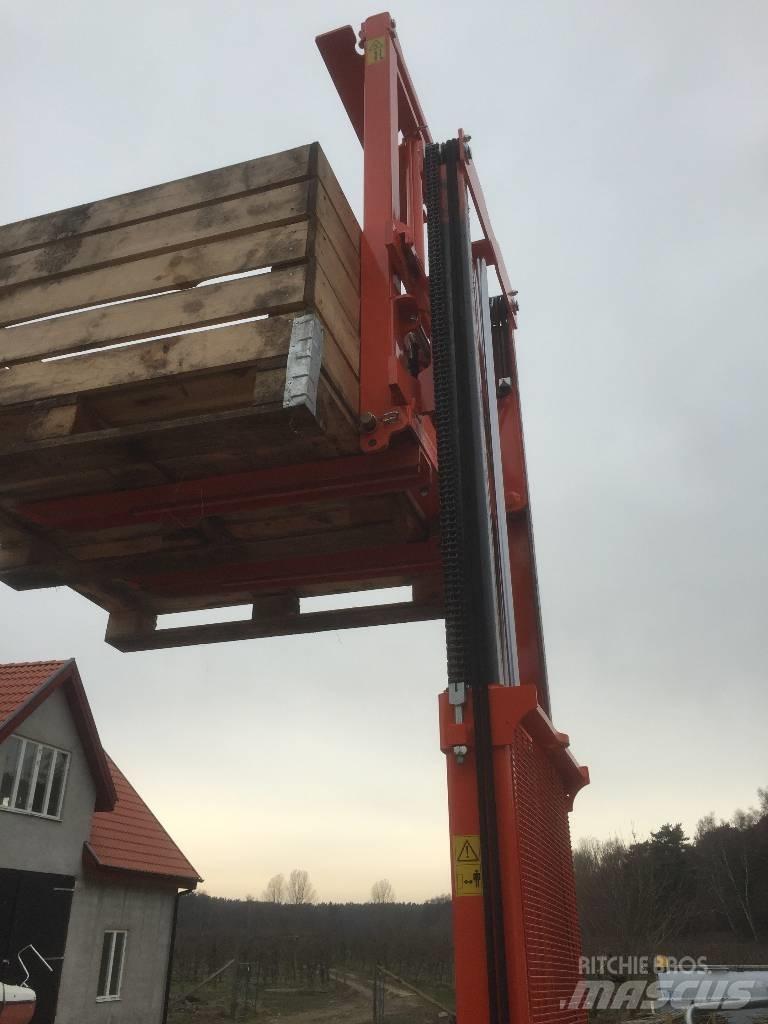

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingVis mer

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Sverige
